Diagnostics

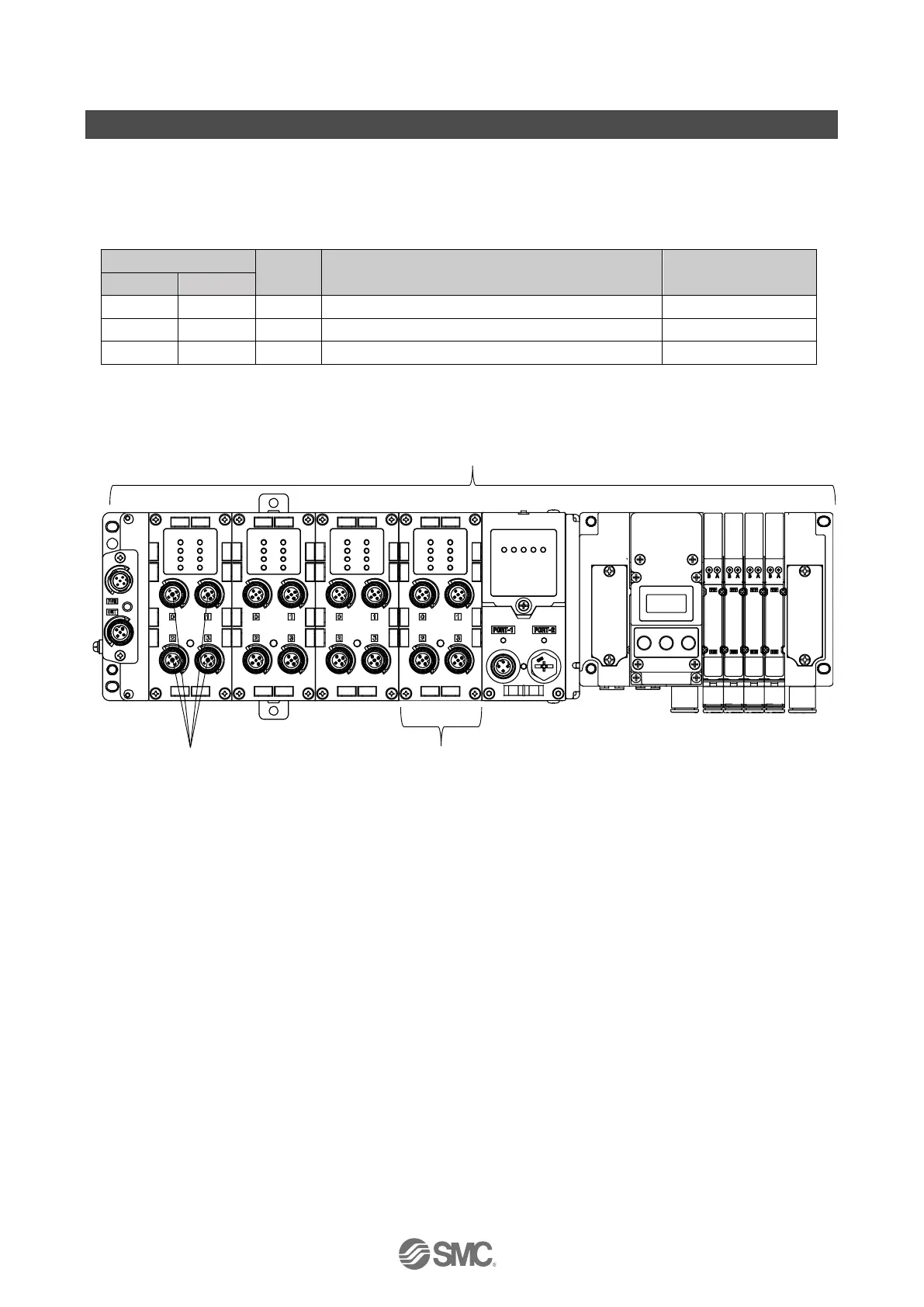

■Assigning diagnosis information to input data
By changing the diagnostics mode setting switch, the diagnostic data shown below is assigned to the end
of input data. (Refer to page 20 for the switch setting.)
Settings1
Mode
Content
Diagnostic size set
for the input
3
4
OFF
OFF
0
Input data only, No Diag.
0 bytes
OFF
ON
1
Input data + System diagnosis
4 bytes
ON
ON/OFF
2
Input data + System diagnosis + Unit diagnosis
6 bytes
Note: Channel diagnostics can be checked using CoE object dictionary (page 89) or Web server (page 114).
System diagnosis
Channel diagnosis Unit diagnosis
