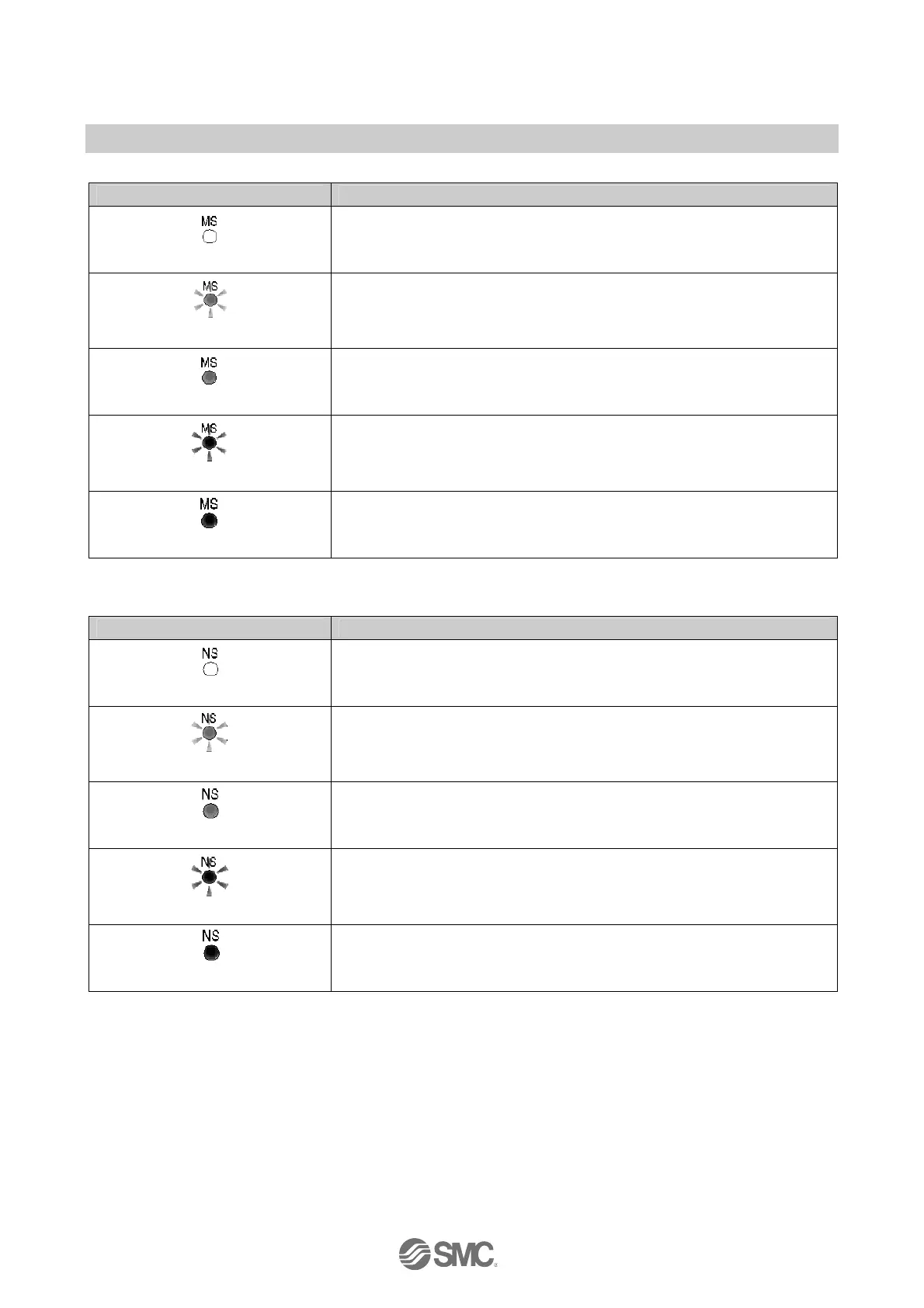

•Module status
LED display Content
MS LED is OFF
The power supply for control and input is OFF.
Green MS LED is flashing
Either of the following conditions:
•The unit has not been configured correctly.
•Fieldbus is idling.
Green MS LED is ON
The unit is in normal operation.
Red MS LED is flashing
Recoverable error.
Red MS LED is ON
The element in SI unit is broken.
•Network status
LED display Content
NS LED is OFF
The power supply for control and input is OFF, or IP address is not set.
Green NS LED is flashing
The unit received an IP address, but connection is not established.
Green NS LED is ON
Connection is established.
Red NS LED is flashing
Connection timeout.
Red NS LED is ON
IP address is duplicated.
