SMC Networks EX600 Series Opration Manual

-45-
EX※※-OMR1012

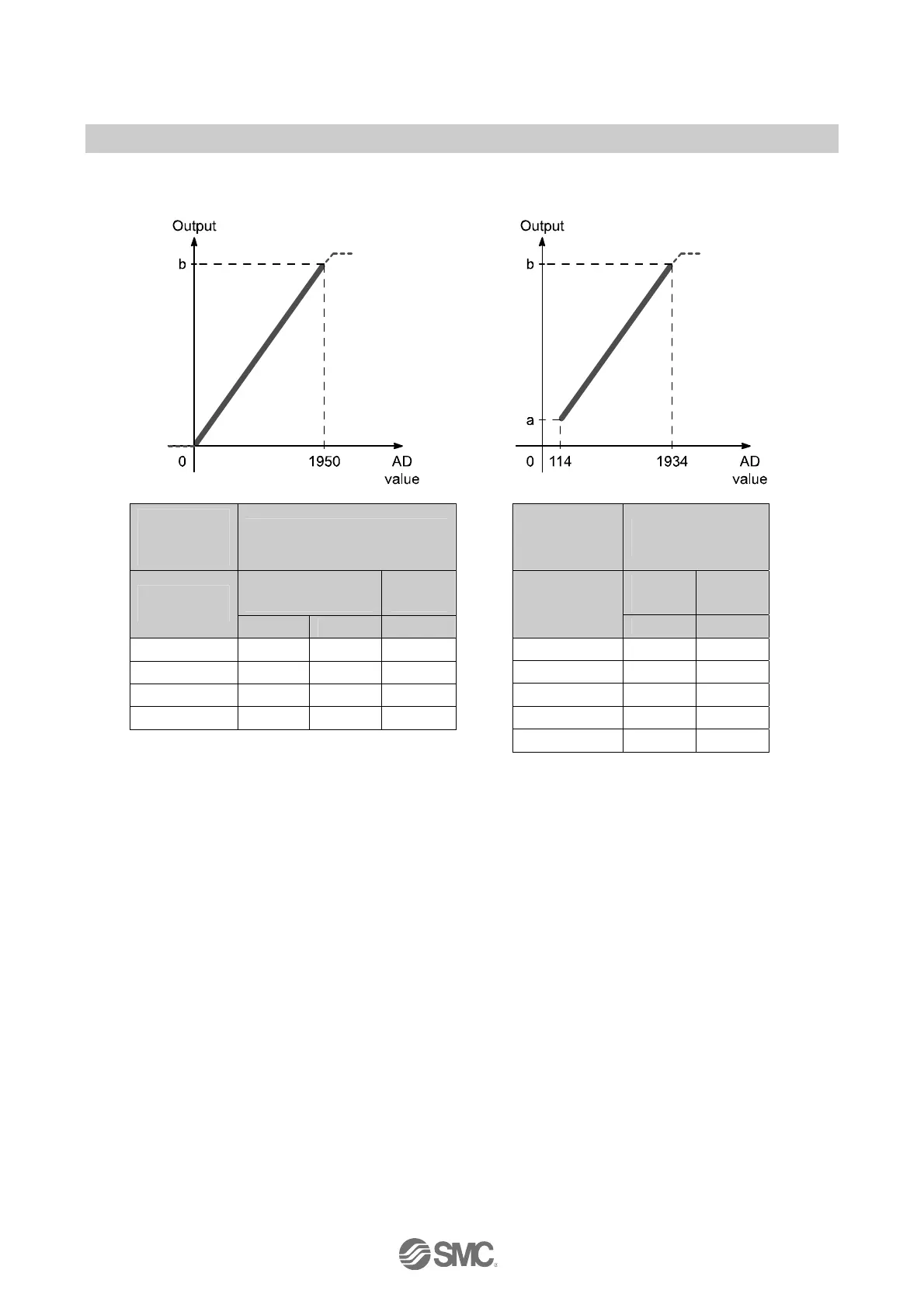

(2) Signed binary data format & 2's complement data format
•Range: 0 to 10 V, 0 to 5 V, 0 to 20 mA •Range: 1 to 5 V, 4 to 20 mA
Settable value
by PLC
(AD value)
Output signal range
(0 to b)
Voltage
[V]
Current
[mA]
Decimal
number
0 to 10 0 to 5 0 to 20
2047 10.5 5.25 21
1950 10 5 20
1024 5.25 2.625 10.5
0 0 0 0
Settable value
by PLC
(AD value)
Output signal range
(a to b)
Voltage
[V]
Current
[mA]
Decimal
number
1 to 5 4 to 20
2047 5.25 21
1934 5 20
1024 3 12
114 1 4
0 0.75 3
Example: To set the Fault value to 10 V when signed binary data format (analogue data format) and
range 0 to 10 V (analogue output range) are set, the value set to PLC is "1950" from the
table on the left.
