Hardware Configuration
■EDS file and icon
EDS file is required to configure the EX600. Furthermore, icons are necessary for the display icon of the
EX600 on the configure.
EDS file: ex600_sen_2p_qc2_v10.eds
Icon: ex600_1.ico
■Setting using RSLogix5000
TM
When connecting EX600 series, use RSLogix5000
TM
software by Rockwell Automation.
Refer to the manual of RSLogix5000
TM
for a detailed manner of operation.
: The screen data shown here is the English version of RSLogix5000
TM
.

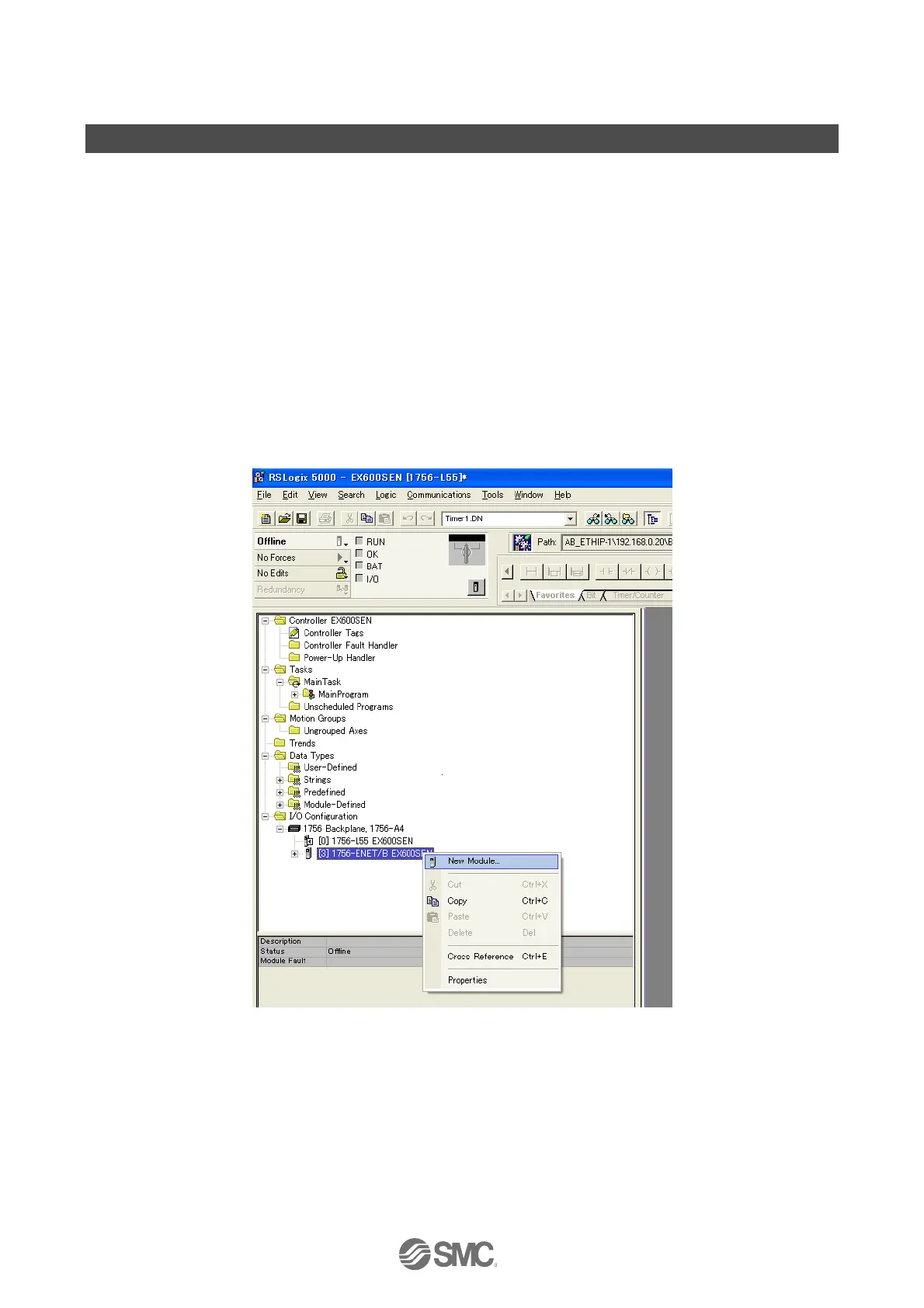

•Select [EtherNet/IP
TM
module] in [I/O Configuration] folder. Select [New Module].
