SMC Networks EX600 Series Opration Manual

-60-
EX※※-OMR1012

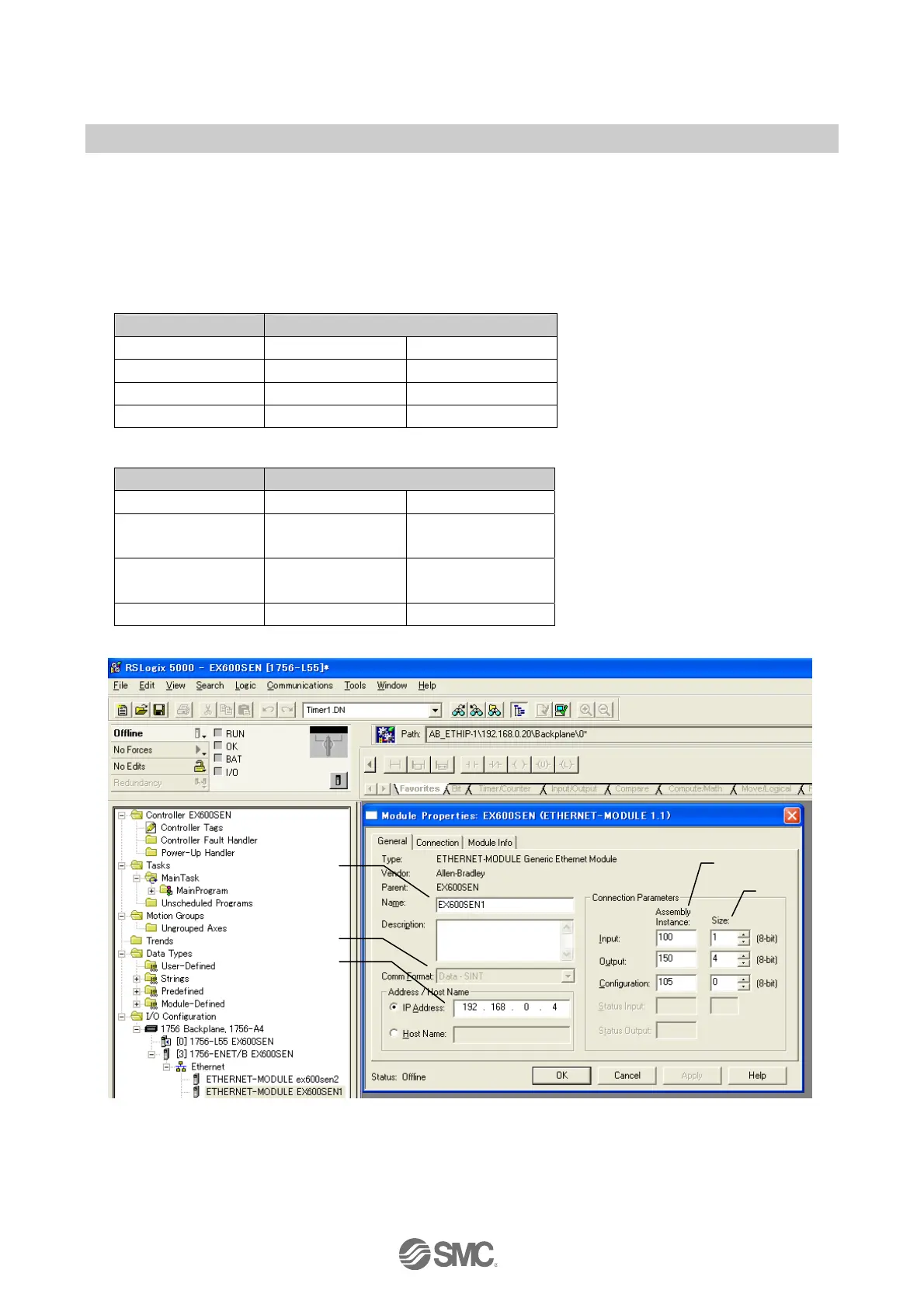

•[Module Properties] window is displayed. Perform each setting.
(1) Name: Input the description of specific unit.
(2) Comm Format: Select the data format of Connection Parameters.
(3) IP Address: Input IP Address which is set in SI unit.
(4) Assembly Instance: Set as below.
Description Decimal
Common Format “Data-INT” “Data-SINT”
Input 100 100
Output 150 150
Configuration 105 105
(5) Size: Set as below.
Description Decimal
Common Format “Data-INT” “Data-SINT”
Input

MIN. 1 word
MAX.32 words
MIN. 2 bytes
MAX.64 bytes
Output

MIN. 1 word
MAX.32 words
MIN. 2 bytes
MAX.64 bytes
Configuration 0 word 0 byte
: Select the setting depending on the existence of diagnostic data and the unit type connected.
(4)
(1)
(2)
(3)
(4)
(1)
(2)
(3)
(5)
(1)
(2)
(3)
(4)
(5)
