5.3 Error Message
LED
Item
ON
OFF
Flashing
Power
Power is supplied
(Green)
Internal diagnosis
error (Red)
Power supply is not
connected
-
Communication
Communication in
stand-by
mode(Green)
Communication
disconnected
Communication
exchange (Green)
F_2=0x0999（60%）
F_1=0x0665
（
40%
）
Process data(Input)
Set Pressure
50％
50％
F_1=0x0665(40%)
F_1=0x0800(50%)
Set Pressure
45%
50％
Process data(Input)

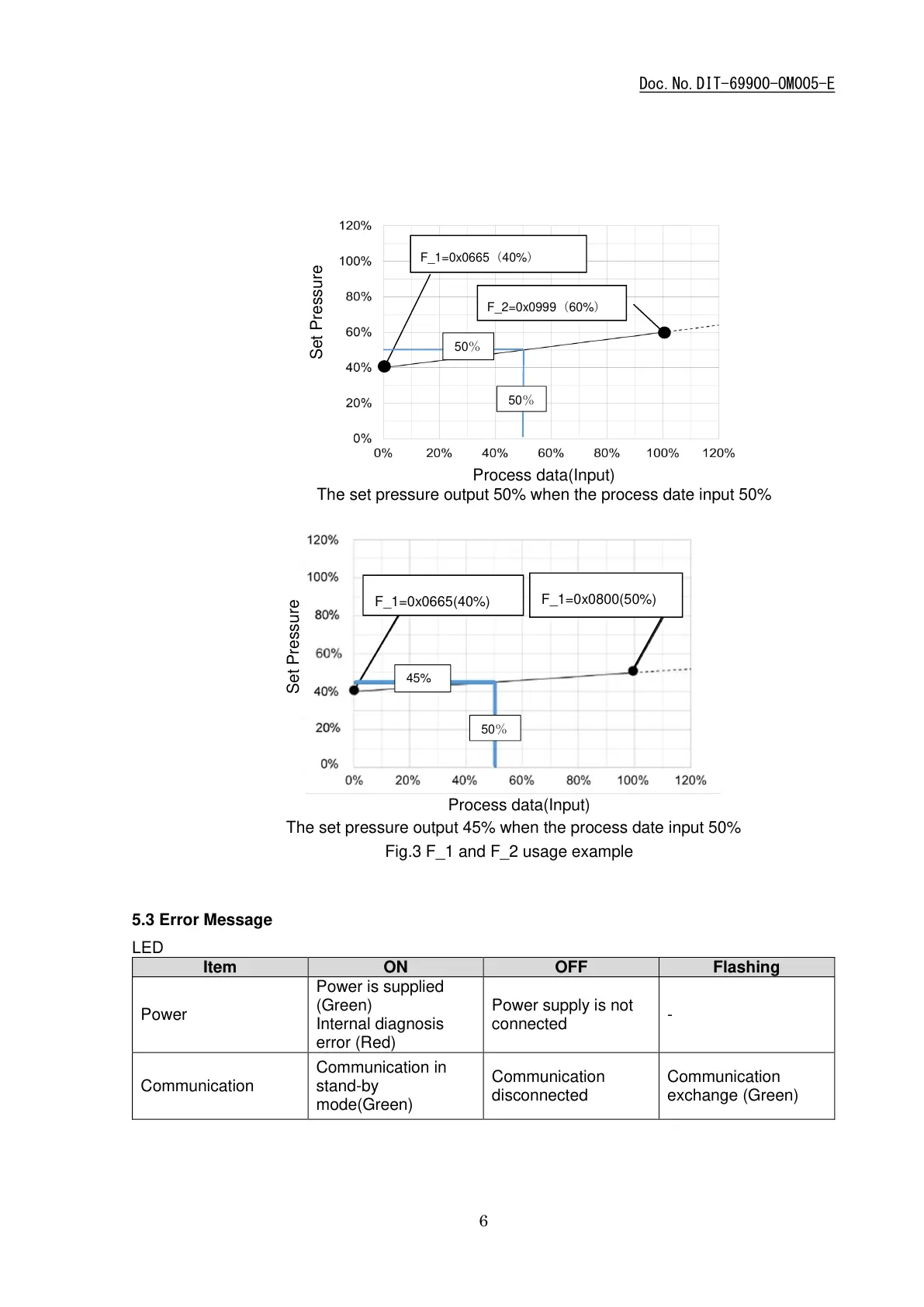

Fig.3 F_1 and F_2 usage example
The set pressure output 45% when the process date input 50%
The set pressure output 50% when the process date input 50%
