SMC Networks LEF Series User Manual

- 28 -

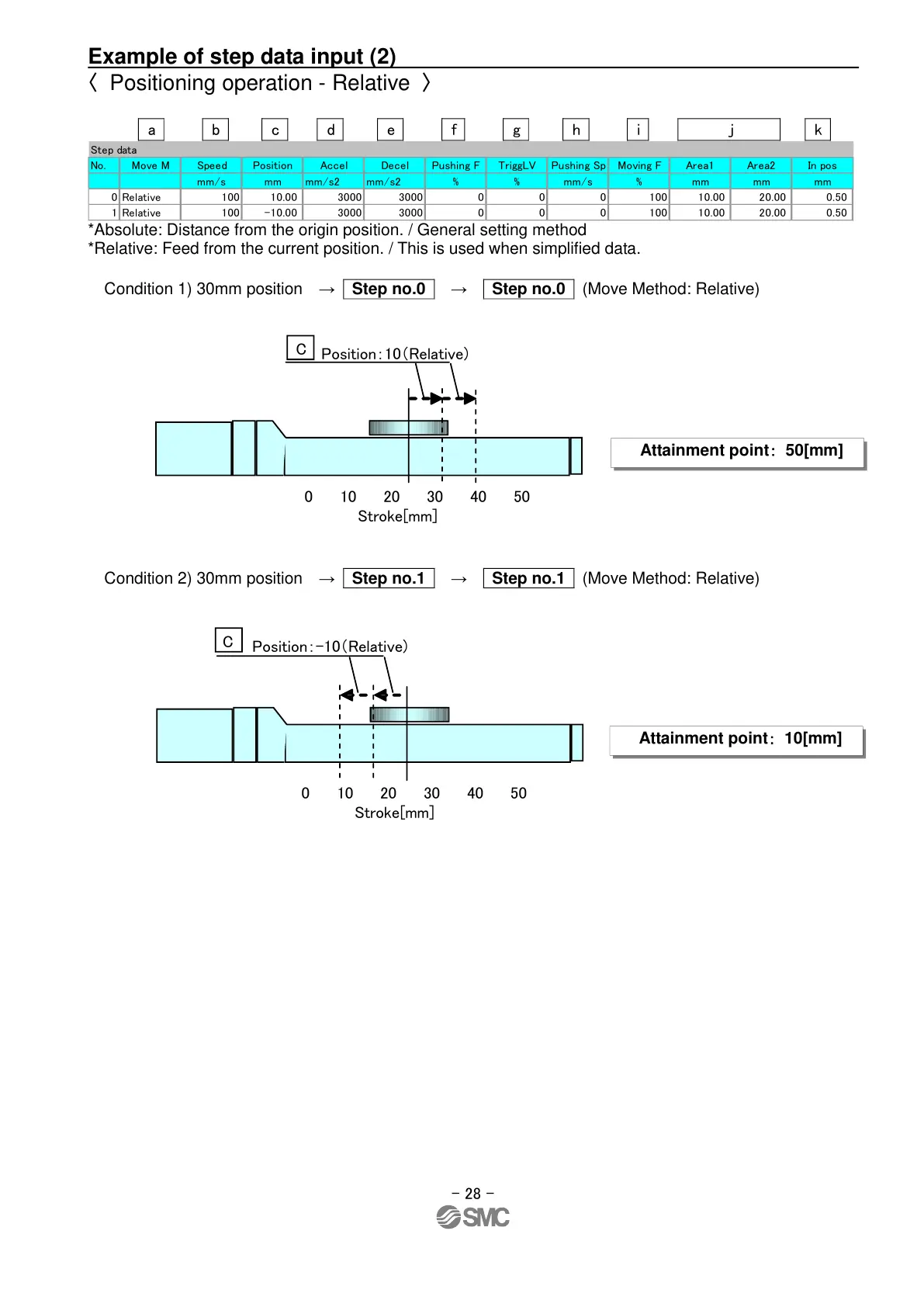

Example of step data input (2)
〈 Positioning operation - Relative 〉
a b c d e f g h i j k
*Absolute: Distance from the origin position. / General setting method
*Relative: Feed from the current position. / This is used when simplified data.
Condition 1) 30mm position → Step no.0 → Step no.0 (Move Method: Relative)
Condition 2) 30mm position → Step no.1 → Step no.1 (Move Method: Relative)
Step data
No. Move M Speed Position Accel Decel Pushing F TriggLV Pushing Sp Moving F Area1 Area2 In pos
mm/s mm mm/s2 mm/s2 % % mm/s % mm mm mm
0 Relative 100 10.00 3000 3000 0 0 0 100 10.00 20.00 0.50
1 Relative 100 -10.00 3000 3000 0 0 0 100 10.00 20.00 0.50
Attainment point： 50[mm]
0 10 20 30 40 50
Position：-10（Relative)
C
Stroke[mm]
Position：10（Relative)
C
0 10 20 30 40 50
Stroke[mm]
Attainment point： 10[mm]
