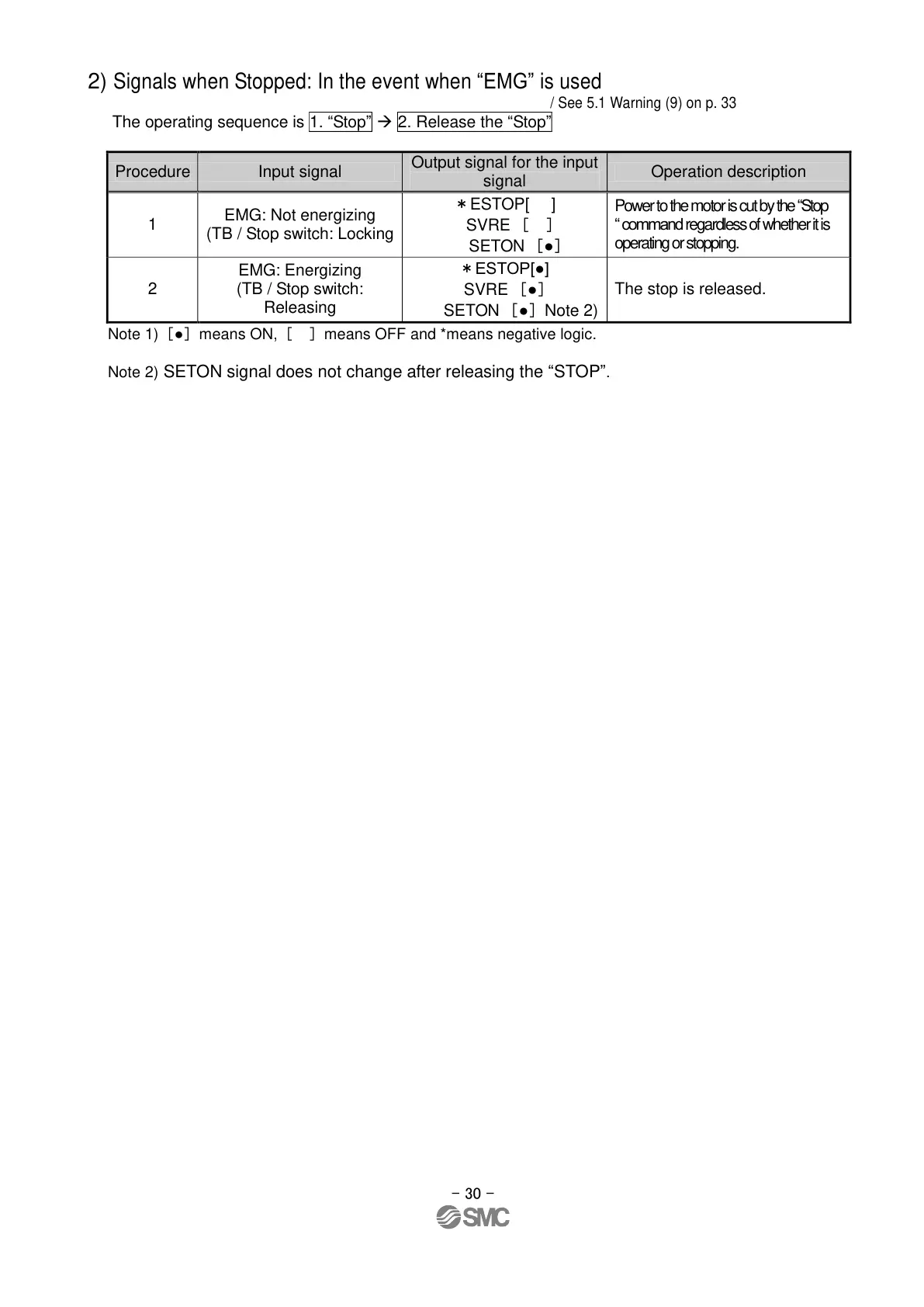

SMC Networks LEF Series User Manual

- 30 -
2) Signals when Stopped: In the event when “EMG” is used
/ See 5.1 Warning (9) on p. 33
The operating sequence is 1. “Stop”  2. Release the “Stop”
Procedure
Input signal
Output signal for the input
signal
Operation description
1
EMG: Not energizing
(TB / Stop switch: Locking
＊ESTOP[ ]
SVRE ［ ］
SETON ［●］
Power to the motor is cut by the “Stop
“ command regardless of whether it is
operating or stopping.
2
EMG: Energizing
(TB / Stop switch:
Releasing
＊ESTOP[●]
SVRE ［●］
SETON ［●］ Note 2)
The stop is released.
Note 1) ［●］ means ON, ［ ］ means OFF and *means negative logic.
Note 2) SETON signal does not change after releasing the “STOP”.
