- 6 -

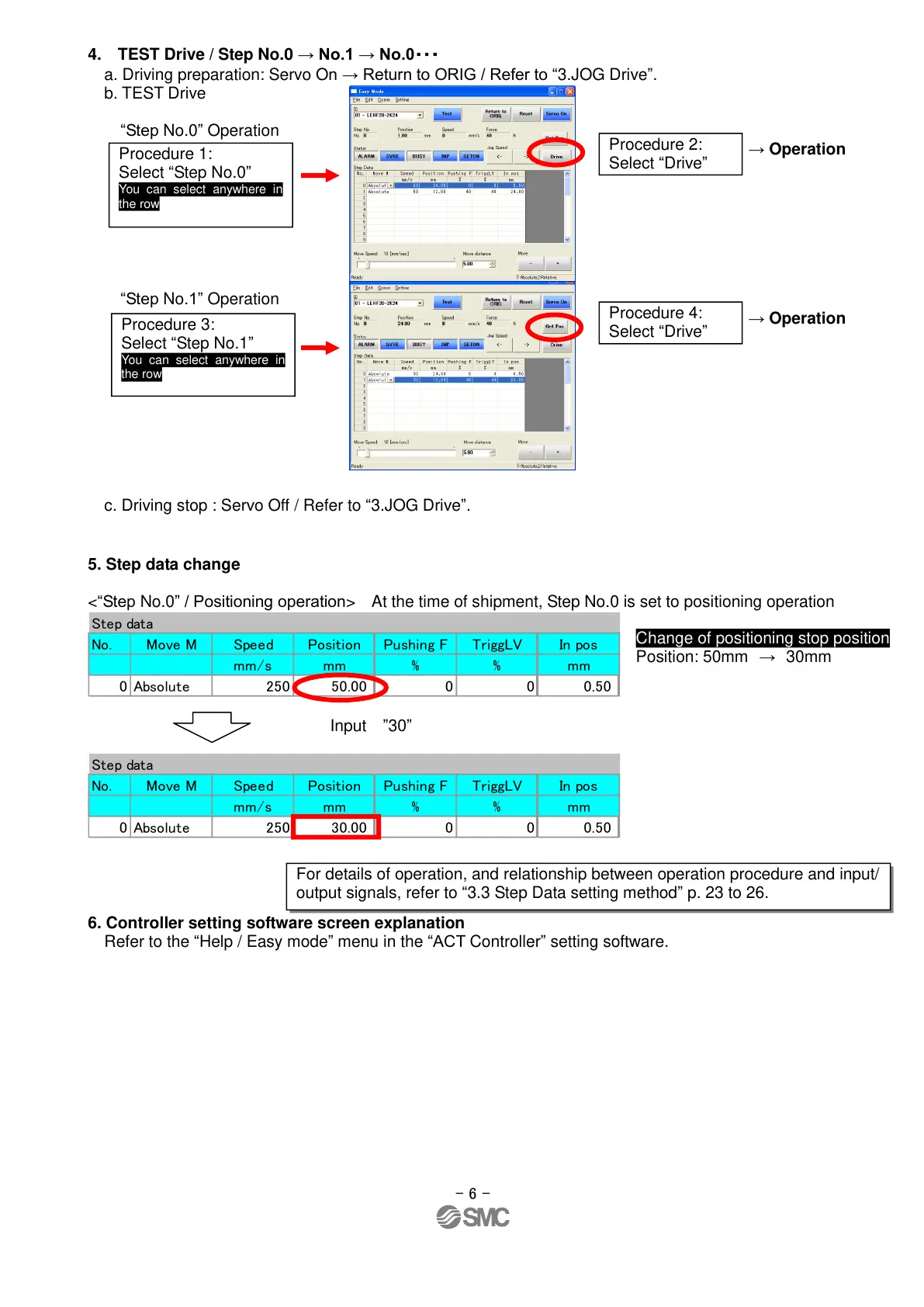

4. TEST Drive / Step No.0 → No.1 → No.0・・・
a. Driving preparation: Servo On → Return to ORIG / Refer to “3.JOG Drive”.
b. TEST Drive
“Step No.0” Operation
→ Operation
“Step No.1” Operation
→ Operation
c. Driving stop : Servo Off / Refer to “3.JOG Drive”.
5. Step data change
<“Step No.0” / Positioning operation> At the time of shipment, Step No.0 is set to positioning operation
6. Controller setting software screen explanation
Refer to the “Help / Easy mode” menu in the “ACT Controller” setting software.
Step data
No. Move M Speed Position Pushing F TriggLV In pos
mm/s mm % % mm
0 Absolute 250 30.00 0 0 0.50
Step data
No. Move M Speed Position Pushing F TriggLV In pos
mm/s mm % % mm
0 Absolute 250 50.00 0 0 0.50
Procedure 1:
Select “Step No.0”
You can select anywhere in
the row
Procedure 2:
Select “Drive”
Procedure 3:
Select “Step No.1”
You can select anywhere in
the row
Procedure 4:
Select “Drive”
For details of operation, and relationship between operation procedure and input/
output signals, refer to “3.3 Step Data setting method” p. 23 to 26.
Change of positioning stop position
Position: 50mm → 30mm
Input ”30”
2021-05-2010:32
