SMC Networks LEF Series User Manual

- 8 -

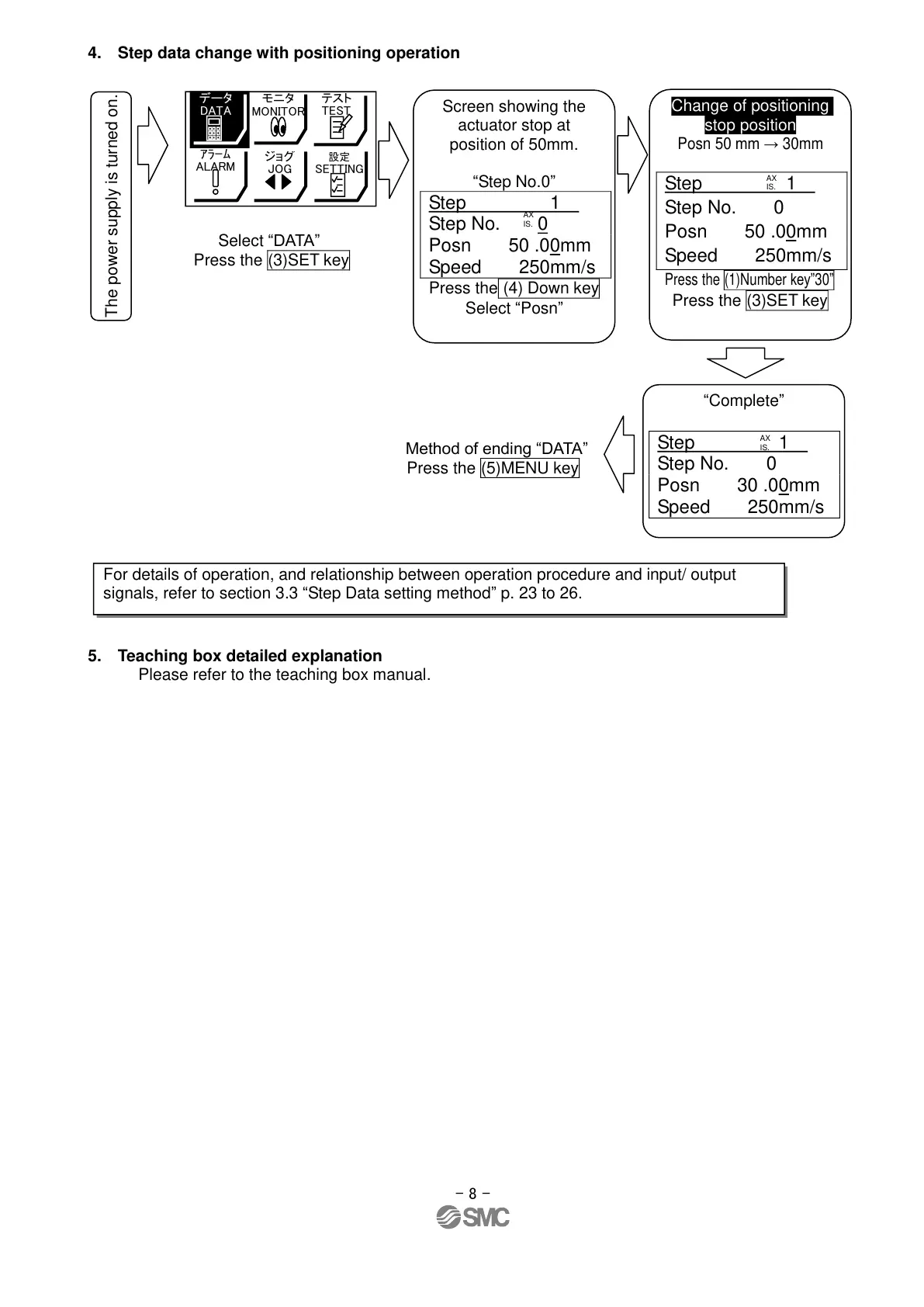

4. Step data change with positioning operation
Select “DATA”
Press the (3)SET key
Method of ending “DATA”
Press the (5)MENU key
5. Teaching box detailed explanation
Please refer to the teaching box manual.
“Complete”
Step 1
Step No. 0
Posn 30 .00mm
Speed 250mm/s
For details of operation, and relationship between operation procedure and input/ output
signals, refer to section 3.3 “Step Data setting method” p. 23 to 26.
ｱﾗｰﾑ
ALARM
ジョグ
JOG
設定
SETTING
テスト
TEST
モニタ
MONITOR
データ
DATA
The power supply is turned on.
Screen showing the
actuator stop at
position of 50mm.
“Step No.0”
Step 1
Step No. 0
Posn 50 .00mm
Speed 250mm/s
Press the (4) Down key
Select “Posn”
Change of positioning
stop position
Posn 50 mm → 30mm
Step 1
Step No. 0
Posn 50 .00mm
Speed 250mm/s
Press the (1)Number key”30”
Press the (3)SET key
AX
IS.
AX
IS.
AX
IS.
2021-05-2010:32
DW913599
