SMC Networks ZK2 A Series - Port Layouts and Operational Limitations; Standard and Option Port Layouts

-60-
No. ZK2-OM01301

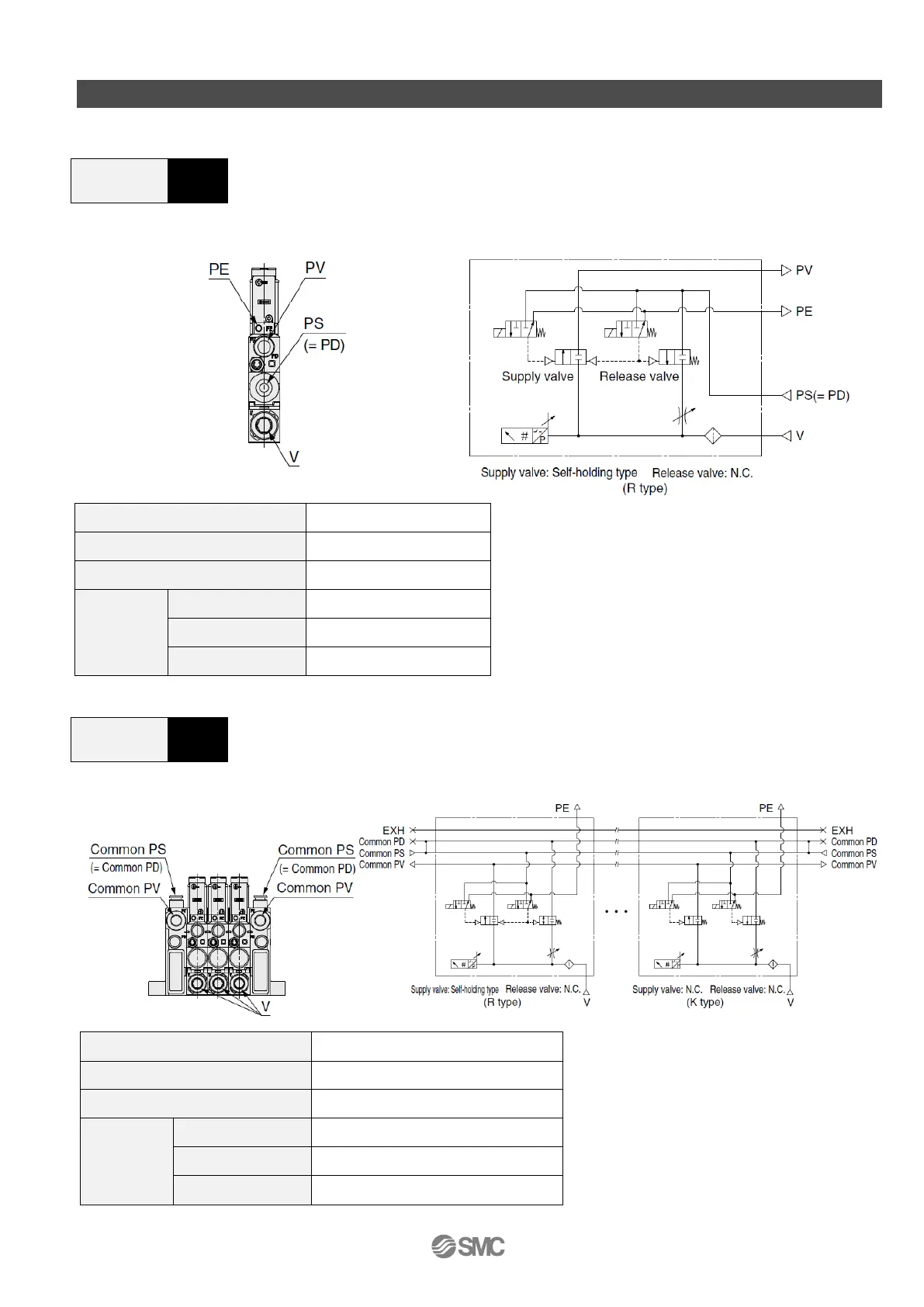

10. Port Layout
■Standard products (No Option)
Single unit: ZK2P00□□□□A-□
Single unit: ZK2Q00□□□□A-□
Manifold: ZZK2□□A-P2□
Port
Layout No.
1
Port
Layout No.
2
Port combination: PV  PS = PD
System
Vacuum pump
Body type
Single unit
Exhaust type
Without silencer
Application
and
purpose
Vacuum pressure
-
Exhaust
-
Release pressure
Same pressure as PS
System
Vacuum pump
Body type
Manifold
Exhaust type
Without silencer
Application
and
purpose
Vacuum pressure
Common for each station
Exhaust
-
Release pressure
Same pressure as common PS
Port combination: Common PV  Common PS = Common PD
