Document No.ZL-OM01001
- 22 -

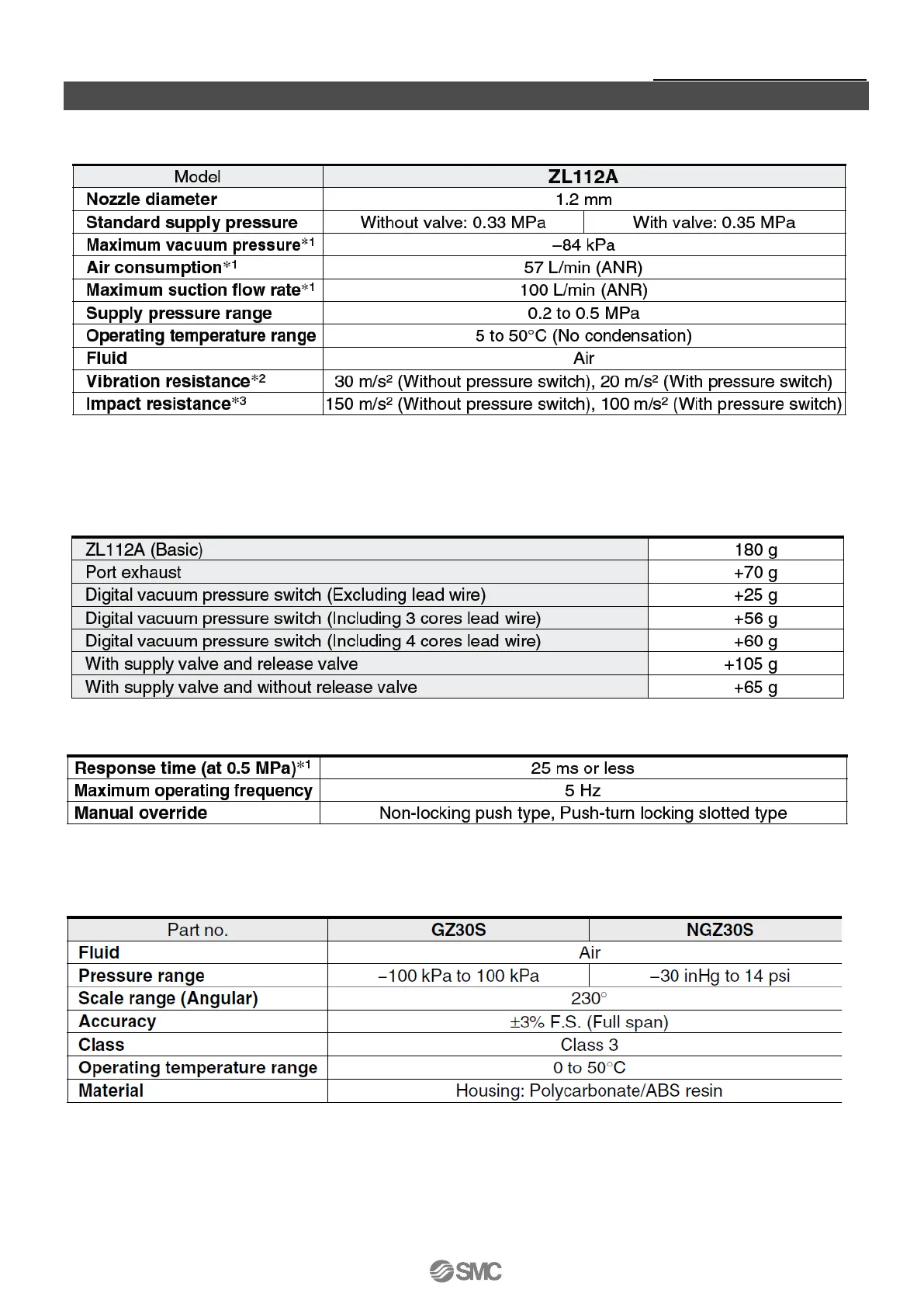

Specifications
■Ejector Specifications
*1 Values are at the standard supply pressure and based on SMC’s measurement standards.
They depend on atmospheric pressure (weather, altitude, etc.) and the measurement method.
*2 10 to 500 Hz for 2 hours in each direction of X, Y, and Z (De-energized, Initial value)
*3 3 times in each direction of X, Y, and Z (De-energized, Initial value)
■Weight
■Supply Valve/Release Valve Specifications
*1 Based on JIS B 8419: 2010 dynamic performance test (Standard type: Coil temperature 20°C, at rated voltage, without surge
voltage suppressor)
* Refer to the Web Catalog for details on valves.
■Vacuum Pressure Gauge Specifications
To Next Page
