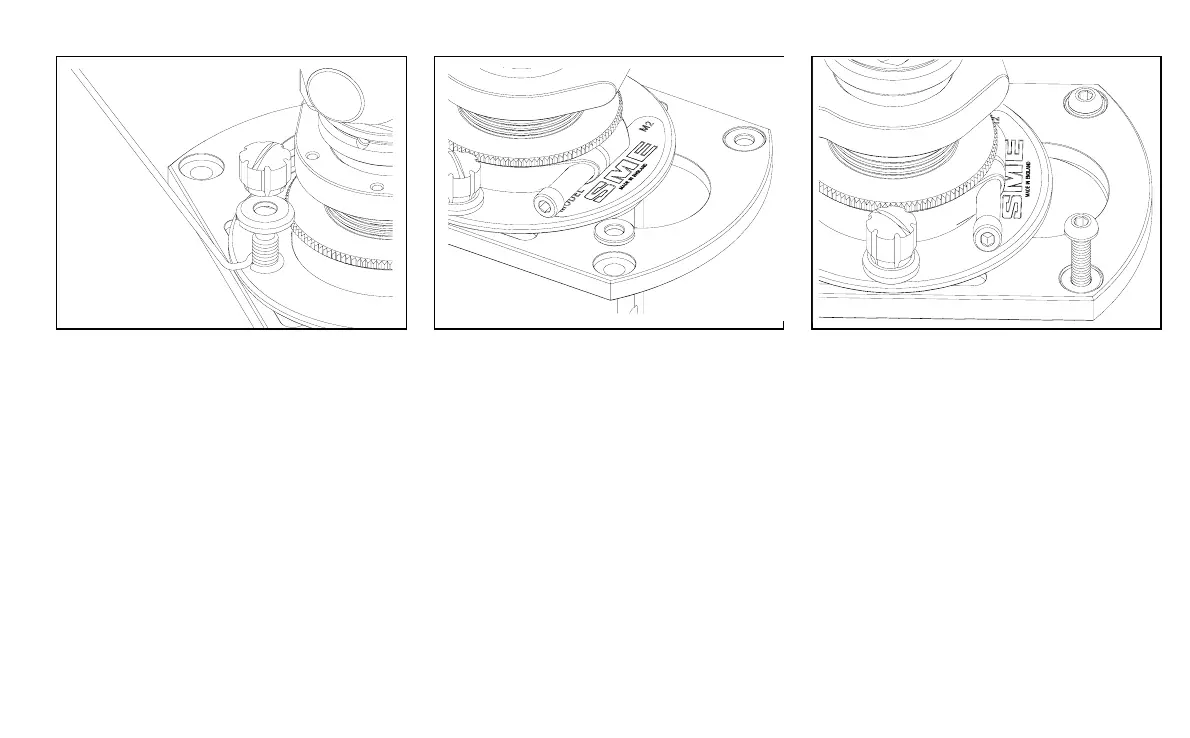

104 Fitting the arm

Remove the inner base clamp nut and base

clamp washer. Pass the loop at the lower end

of the anti-skate guide over the base clamp bolt

and fit the base clamp washer. Ensure that the

loop on the anti-skate guide is fitted into the

counterbore in the underside of the washer and

the slot is aligned with the anti-skate guide.

Replace the base clamp nut and tighten, lightly.

105

Fit a mounting washer to each of the four

counterbores in the upper surface of the

bedplate.

106

Position the arm on the mounting board and

insert the M3 button head screws into the holes.

If the holes are not tapped M3 to accept the

screws directly, it will be necessary to fit the

nuts and washers under the board. Tighten fully

using the 2.0mm A/F wrench.
