SME M2 Series - Positioning the Armrest; 128 Positioning the armrest

128 Positioning the armrest

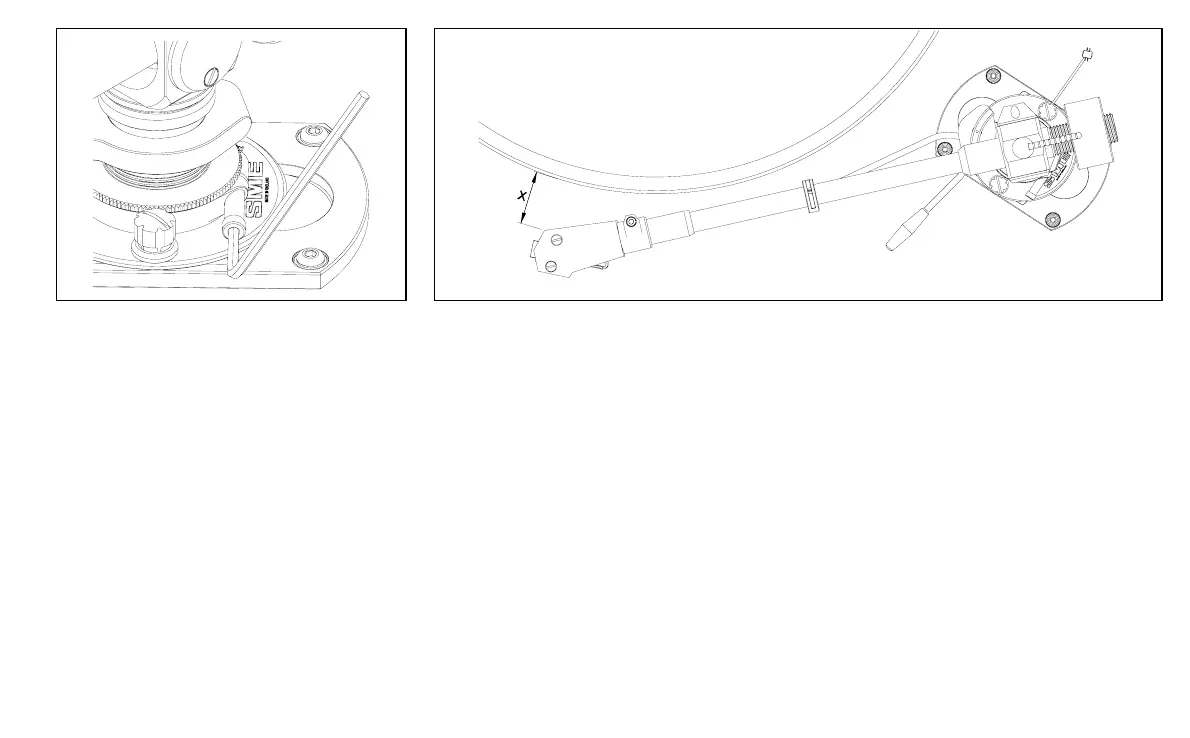

Release the pillar clamp screw using the 2mm
A/F wrench.
Height adjustment will be maintained by the VTA
thumbwheel.
129
Rotate the pillar to position the armrest conveniently in relation to the turntable. The dimension ‘X’
should not be more than 75mm or less than 25mm.
Tighten the pillar clamp screw firmly, avoiding excessive force.
