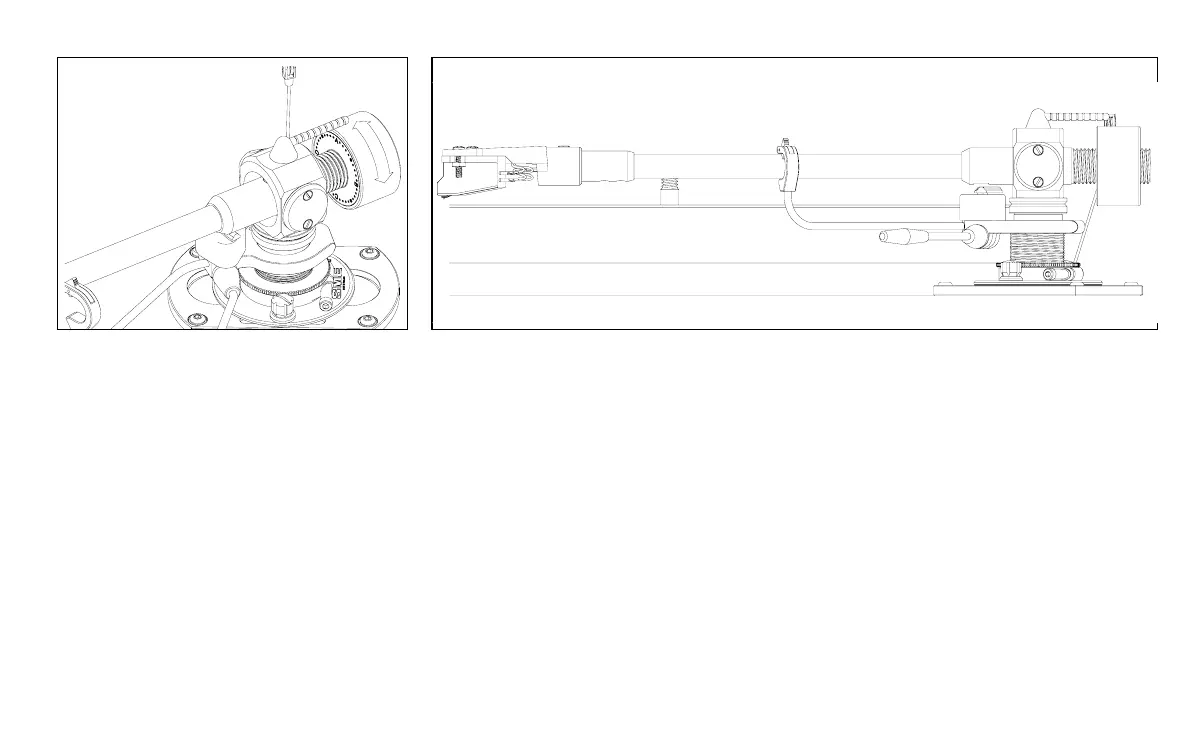

114 Longitudinal balanc
e
Position the arm so that it is clear of the armrest
and the cartridge is clear of the turntable. Move
the control lever into the lowered position.
Balance the arm by rotating the
weight to move it
backwards or forwards as required.
115
Adjust until the arm, with cartridge fitted, is either level or slightly low at the front end.
14
13
15
Table of Contents
Introduction
2
Table of Contents
3
General Arrangement
4
Dimensions
5
Specifications
6
Packing List
7
Parts Identification
8
Preparing the Arm Mounting Board
9
Fitting the Arm
10
Fitting the Cartridge
12
Fitting the Headshell
13
Longitudinal Balance
14
Vertical Tracking Force (VTF) Adjustment
15
Arm Height (VTA) Adjustment
16
Azimuth Adjustment
17
Horizontal Tracking Angle (HTA) Adjustment
18
Positioning the Armrest
19
Operation
21
Appendix
23
