INSTALLATION - 5391477A836/A
e
The nozzles not provided are available at Authorised Service Centres.

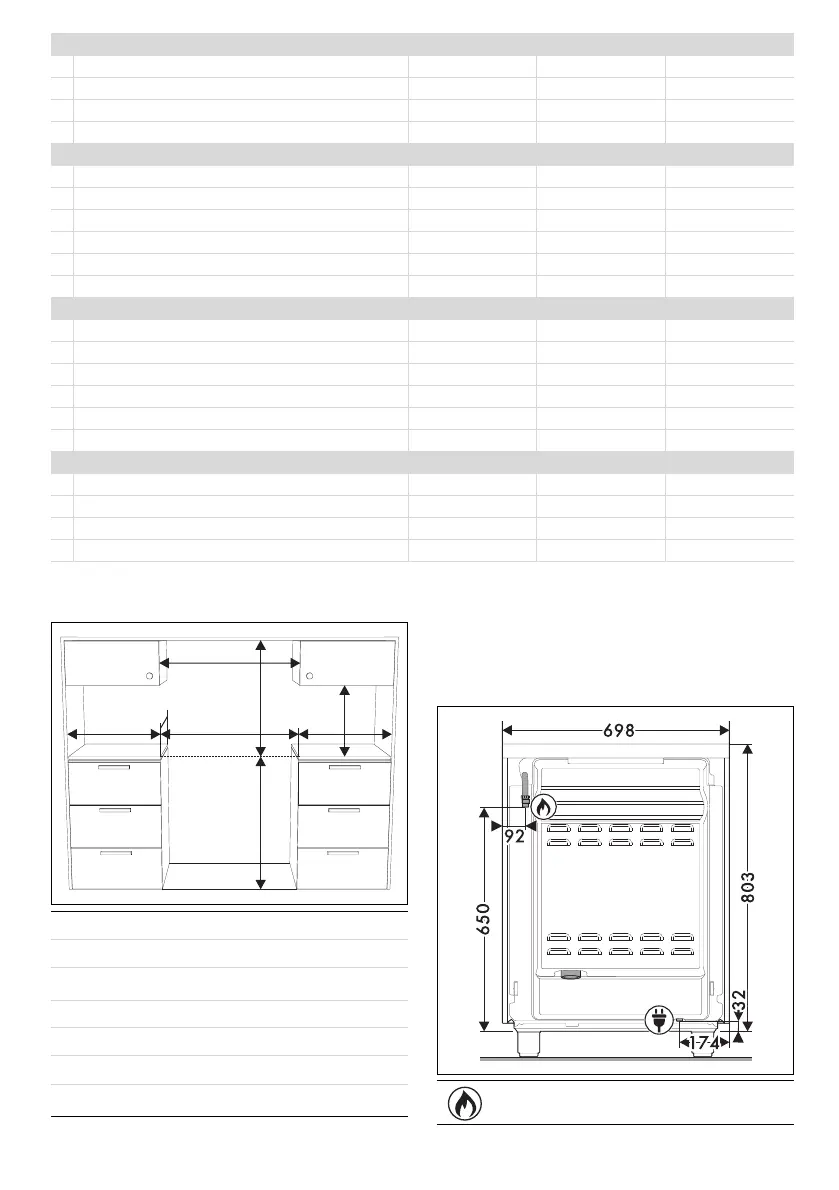

Appliance overall dimensions
1
Minimum distance from side walls or other
flammable material.
2
Minimum cabinet width (=A)
Appliance dimensions
4 Natural Gas G2.350 - 13 mbar AUX SR UR2
Rated heating capacity (kW) 1.0 1.8 4.0
Nozzle diameter (1/100 mm) 94 120 190
Pre-chamber (printed on nozzle) (Y) (Y) (F3)
Reduced flow rate (W) 400 500 1400
5 LPG G30/31 - 30/37 mbar AUX SR UR2
Rated heating capacity (kW) 1.0 1.8 4.0
Nozzle diameter (1/100 mm) 50 65 100
Pre-chamber (printed on nozzle) - - -
Reduced flow rate (W) 400 500 1400
Rated flow rate G30 (g/h) 73 131 291
Rated flow rate G31 (g/h) 71 129 286
6 LPG G30/31 - 37 mbar AUX SR UR2
Rated heating capacity (kW) 1.1 1.9 4.1
Nozzle diameter (1/100 mm) 50 65 95
Pre-chamber (printed on nozzle) - - -
Reduced flow rate (W) 450 550 1500
Rated flow rate G30 (g/h) 80 138 305
Rated flow rate G31 (g/h) 79 136 300
7 Town gas G110 – 8 mbar AUX SR UR2
Rated heating capacity (kW) 1.0 1.8 3.4
Nozzle diameter (1/100 mm) 145 185 340
Pre-chamber (printed on nozzle) (/8) (/2) 0190
Reduced flow rate (W) 400 500 1200
A 700 mm
B 600 mm
C
1
min. 150 mm
D 900 ÷ 915 mm
H 750 mm
I 450 mm
L
2
700 mm
LL
HH
II
CC CC
AA
BB
DD
Position of gas connection
