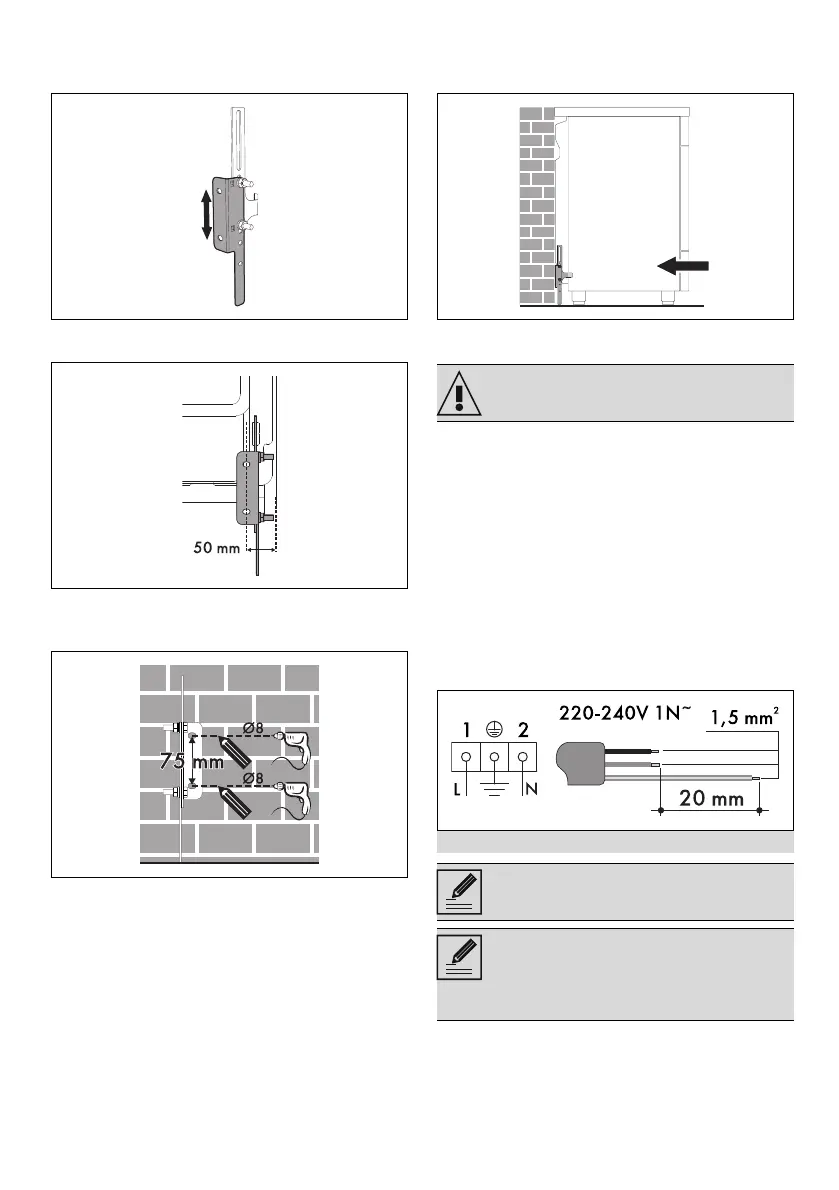

INSTALLATION - 5591477A836/A
5. Align the base of the fastening bracket with
the ground and tighten the screws to fix the
measurements.
6. Consider a distance of 50 mm from the side
of the appliance to the bracket holes.
7. Move the bracket onto the wall and mark
the position of the holes to be drilled in the
wall.
8. After drilling the holes in the wall, use wall
plugs and screws to fasten the bracket to the
wall.
9. Push the cooker towards the wall, and at the
same time insert the bracket in the plate
fastened to the rear of the appliance.
Electrical connection
General information
Check the mains characteristics against the data
indicated on the plate.
The identification plate bearing the technical
data, serial number and brand name is visibly
positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to ground
using a wire that is at least 20 mm longer than
the other wires.
The appliance can work in the following modes:
• 220-240 V 1N~
fig. 1
Fixed connection
Fit the power line with an all-pole circuit breaker
with a contact separation distance sufficient to
provide complete disconnection in category III
See General safety instructions.
The values indicated refer to the cross-
section of the internal conductor.
The aforementioned power cables are
sized taking into account the
coincidence factor (in compliance with
standard EN 60335-2-6).
