Instructions for the installer
43

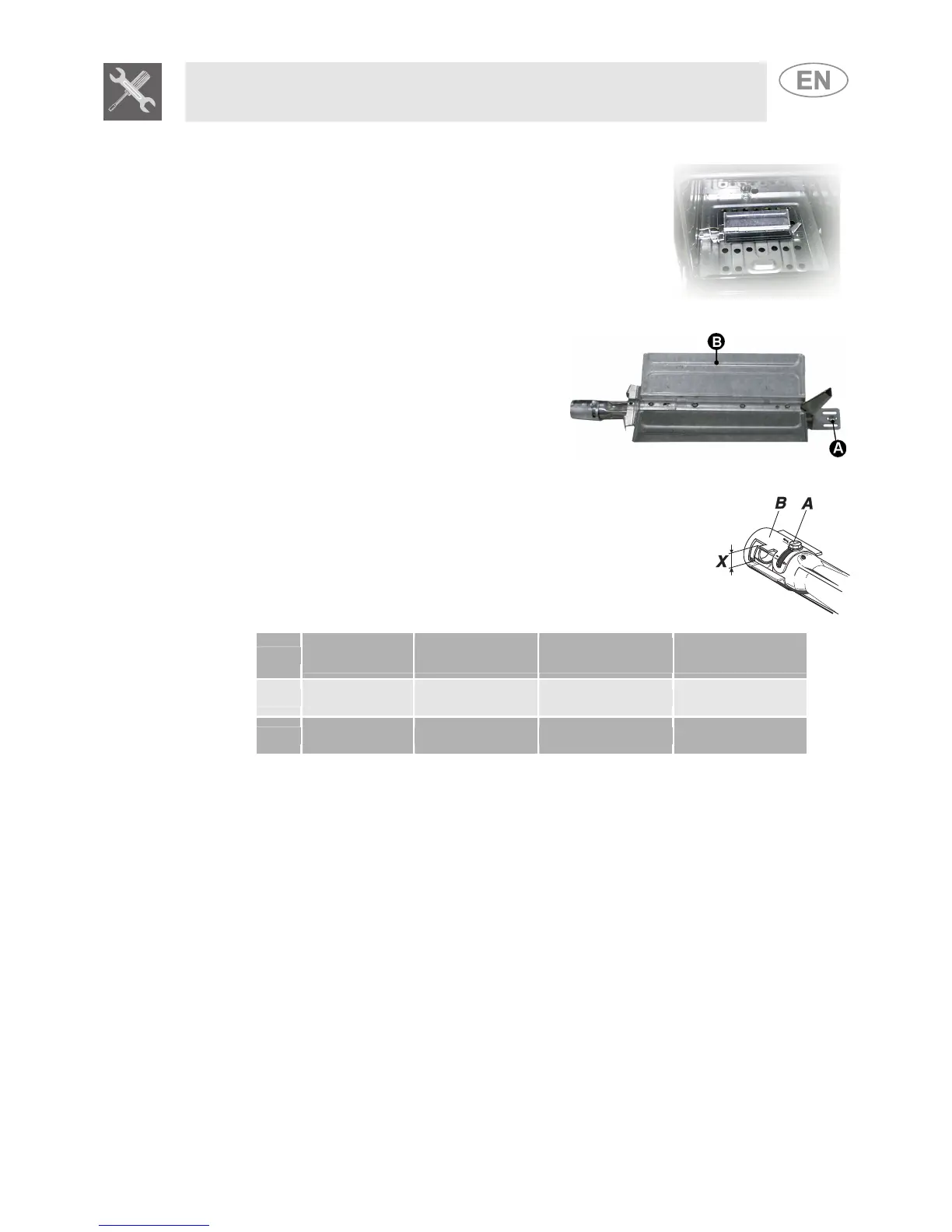

3.6 Oven burner adjustment (only for models with a gas oven)
To adjust the oven burner you need to open the oven door and carry out
the following operations:
• Remove the oven basin and its rack.
• Lift up the oven surface and pull it outwards.
3.6.1 Replacing the oven + grill burner nozzle
• Loosen the oven burner fixing screw A.
• Push the burner B towards the right until the nozzle
is accessible.
• Using a 13 socket wrench, replace the nozzle,
inserting a new nozzle suitable for the type of gas to
be used (see paragraph “3.2/3.3 Burner and nozzle
characteristics table”).
3.6.2 Primary air adjustment for the oven + grill burner
• Loosen the adjustment screw “A” of the air regulation sleeve.
• Turn the adjustment sleeve “B” to the position that corresponds to the type
of gas to be used according to the table below.
• Tighten the adjustment screw and restore the seals.
• When the operation is completed, reassemble the burner correctly.
NATURAL GAS G30/G31 (GPL) G30/G31 (GPL) G 110 – CITY GAS
(N) 60-cm oven 90-cm oven 60-cm oven only
OVEN
X =
5 mm 10 mm 10 mm 3 mm
GRILL X =
5 mm 15 mm 10 mm 3 mm
