Instructions for the installer
40
I

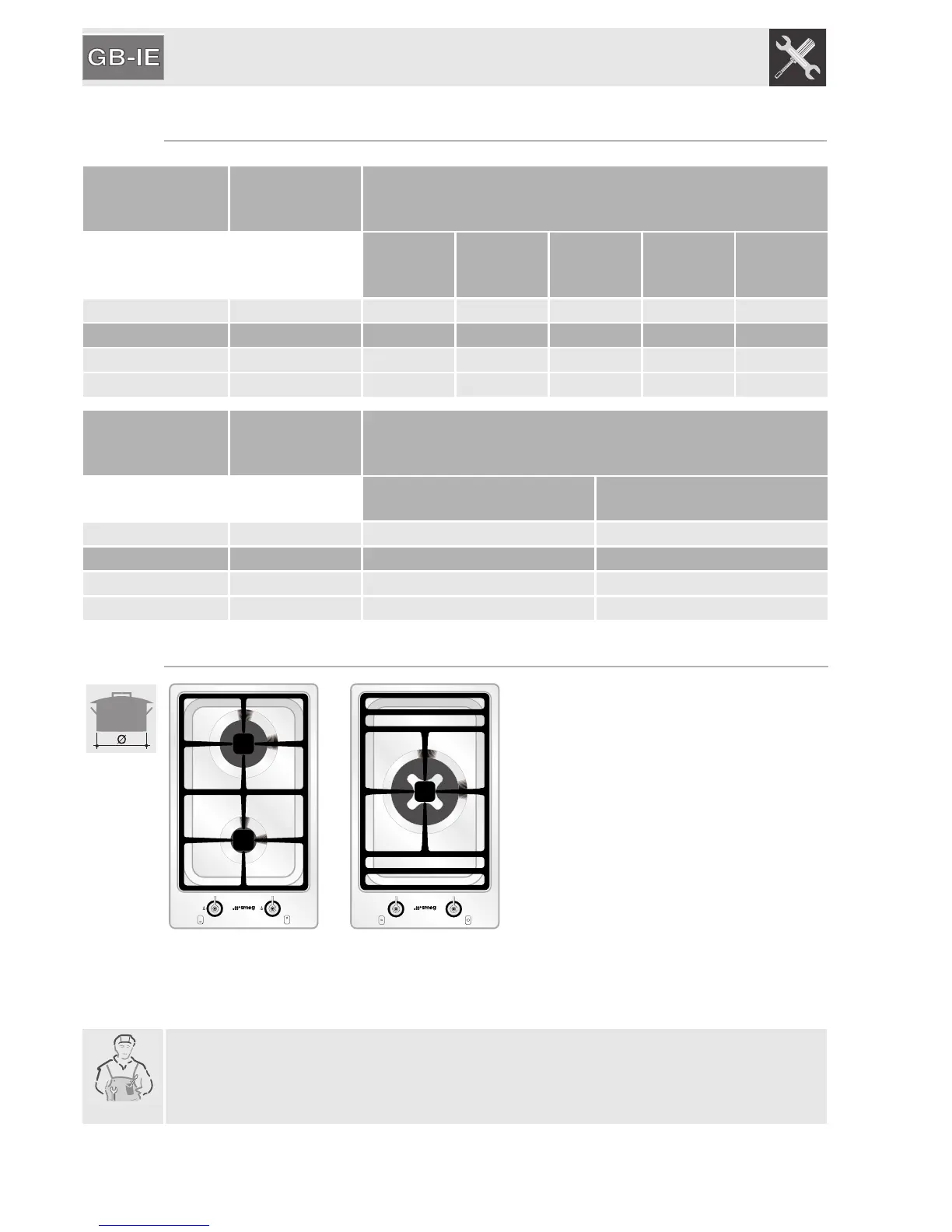

8.2 Burner and nozzle characteristics table
Burner
Rated heating
capacity
(kW)
Liquid gas - G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
By-pass
mm
1/100
Rated
capacity
(W)
Rated
g/h G30
Rated
g/h G31
Auxiliary (1) 1.05 50 30 400 76 75
Rapid (2) 2.50 79 42 800 182 179
Dual crown (3) INT
0.90 46 30 400 65 64
Dual crown (3) EXT
3.60 68 + 68 63 1600 262 257
Burner
Rated heating
capacity
(kW)
Natural gas - G20 20 mbar
Nozzle diameter
1/100 mm
Reduced capacity
(W)
Auxiliary (1) 1.05 72 400
Rapid (2) 2.50 108 800
Dual crown (3) INT
0.90 70 400
Dual crown (3) EXT
3.60 102 + 102 1600
8.3 Arrangement of the burners on the cooking hob
HOB BURNER
1 Auxiliary
2 Rapid
3
Dual crown
After making the adjustments described above, reassemble the appliance by
following the instructions in point “8.1 Replacement of nozzles on the hob” in
reverse order.
After adjustment with a gas other than the preset one, replace the label on the
bottom of the casing with the label corresponding to the new gas. This label is
supplied with the appliance (when applicable) or can be obtained from the
nearest Authorised Service Centre.
