Instructions for the installer
23
2)
3)
4)

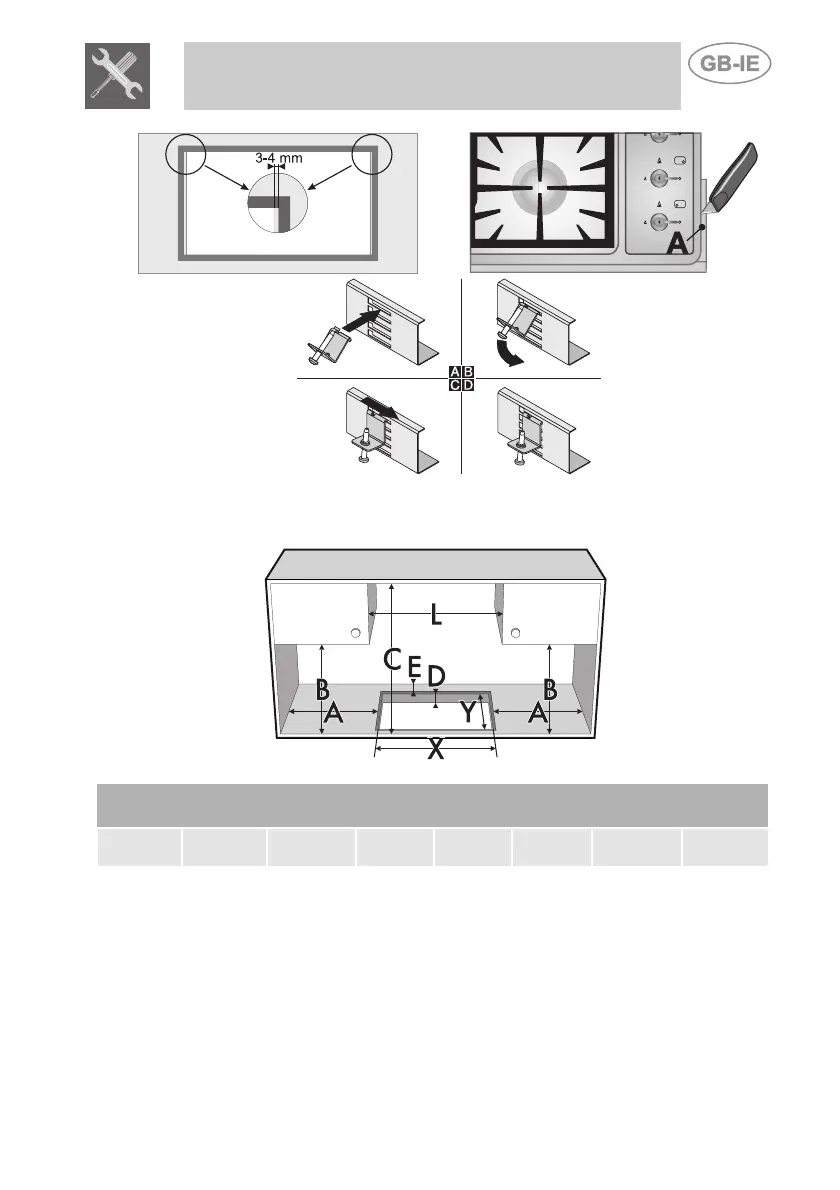

2.2 Attachment to support structure, flush-mounting model
Create an opening with the dimensions shown in the figure.
A (mm) B (mm) C (mm) D (mm) E (mm) L (mm) X (mm) Y (mm)
min 110 min 460 min 750 20÷40 min 50 700 492 700
This type of appliance also requires a cut 3 mm deep in the work-top
with the dimensions shown in figure 4 (detail A, figure 2).
Before positioning the hob, position the adhesive sponge material “E”
supplied over the milled surface (fig. 2). Now place the hob on the cut
in the work-top and use the screws and fixing brackets (sequence
shown in Fig. 3) to secure the hob to the supporting structure, adjusting
it until perfectly horizontal. Do not fit the brackets shown in fig. 3 until
the hob has been set in place.
