Smeg PLA8743X - Installation Instructions; 4 Dimensions of Dishwasher

Rev 0.0 11
INSTALLATION INSTRUCTIONS EN

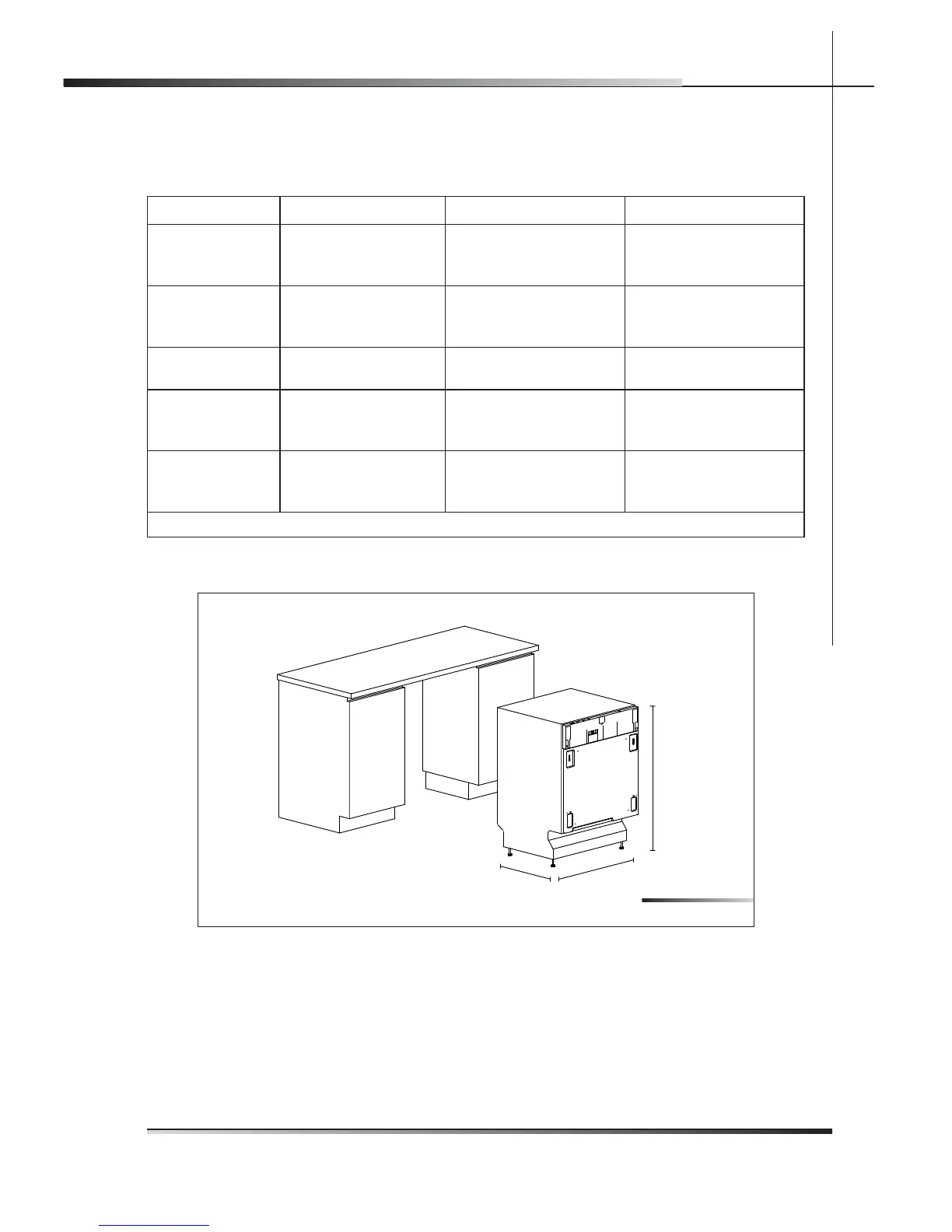

4 DIMENSIONS OF DISHWASHER (See fi g. 4-01)
Model A (height) B (width) C (depth)
STA8743
86 cm ÷ 91 cm
33-55/64” ÷ 35-
55/64”
59.7 cm ÷ 59,9 cm
23-1/2” ÷ 23-37/64”
55 cm
21-21/32”
STA8614X
86 cm ÷ 91 cm
33-55/64” ÷ 35-
55/64”
59.7 cm ÷ 59.9 cm
23-1/2” ÷ 23-37/64”
60 cm
23-5/8”
STA4645
82 cm ÷ 87 cm
32-9/32” ÷ 34-1/4”
44.7 cm ÷ 44.9 cm
17-19/32” ÷ 17-43/64”
55 cm
21-21/32”
PLA8743X
86 cm ÷ 91 cm
33-55/64” ÷ 35-
55/64”
59.7 cm ÷ 59.9 cm
23-1/2” ÷ 23-37/64”
57 cm
22-7/16”
PLA68XU
86 cm ÷ 91 cm
33-55/64” ÷ 35-
55/64”
59.7 cm ÷ 59.9 cm
23-1/2” ÷ 23-37/64”
60 cm
23-5/8”
Tab. 4-01
A
B
C
Fig. 4-01
