Rev 0.0 27
INSTALLATION INSTRUCTIONS EN
5.3.2 Procedure for mounting the door panel
(models sta_4645/sta_8743)
Mount the door panel.

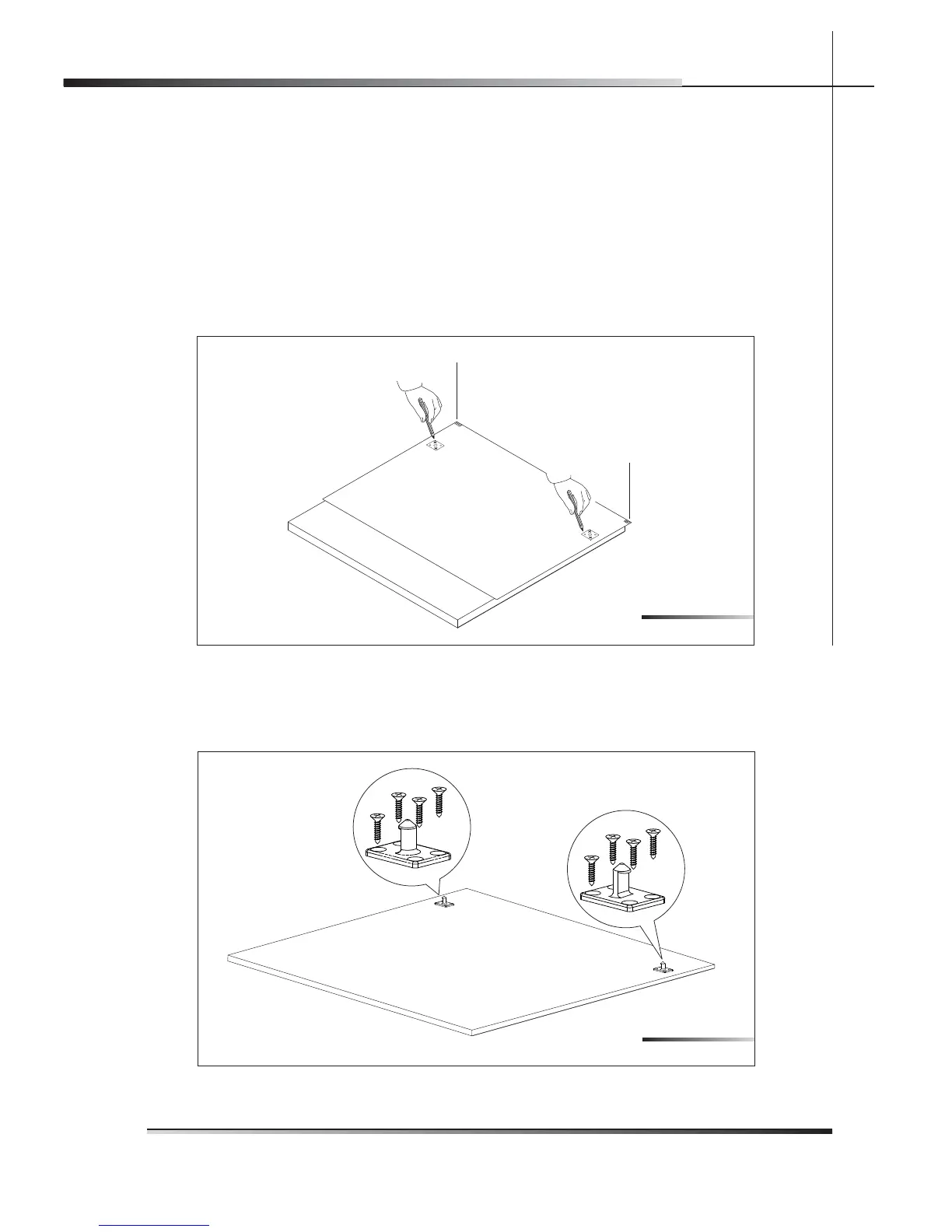

Place the template on the inner surface of the panel, centering it along the up-
per side and matching up the r
eference locators (ref. A fi g. 5-19); mark the po-
sition of the door hooks with a pencil (see fi g. 5-19). Remove the template and
use a drill with a suitable bit to make holes at the points marked on the panel.
A
A
Use the screwdriver to secure the door hooks with the 8 supplied screws (see
fi g. 5-20) at the marked reference points.
Fig. 5-19
Fig. 5-20
