INSTALLATION INSTRUCTIONS EN
Connecting to a waste disposal unit (no air gap)
MAKE THE CONNECTION UPLINE FROM THE SIPHON OF THE
DRAIN LINE AND AT LEAST 400 mm (15-3/4”) ABOVE THE FLOOR
ON WHICH THE DISHWASHER WILL BE INSTALLED.
Remove the cover of the waste disposal unit (ref. A fi g. 5-14). 1.
Connect the dishwasher drain hose (ref. B fi g. 5-14) to the waste disposal 2.
unit inlet (ref. C fi g. 5-14), using the wide spring clamp (ref. D fi g. 5-14).

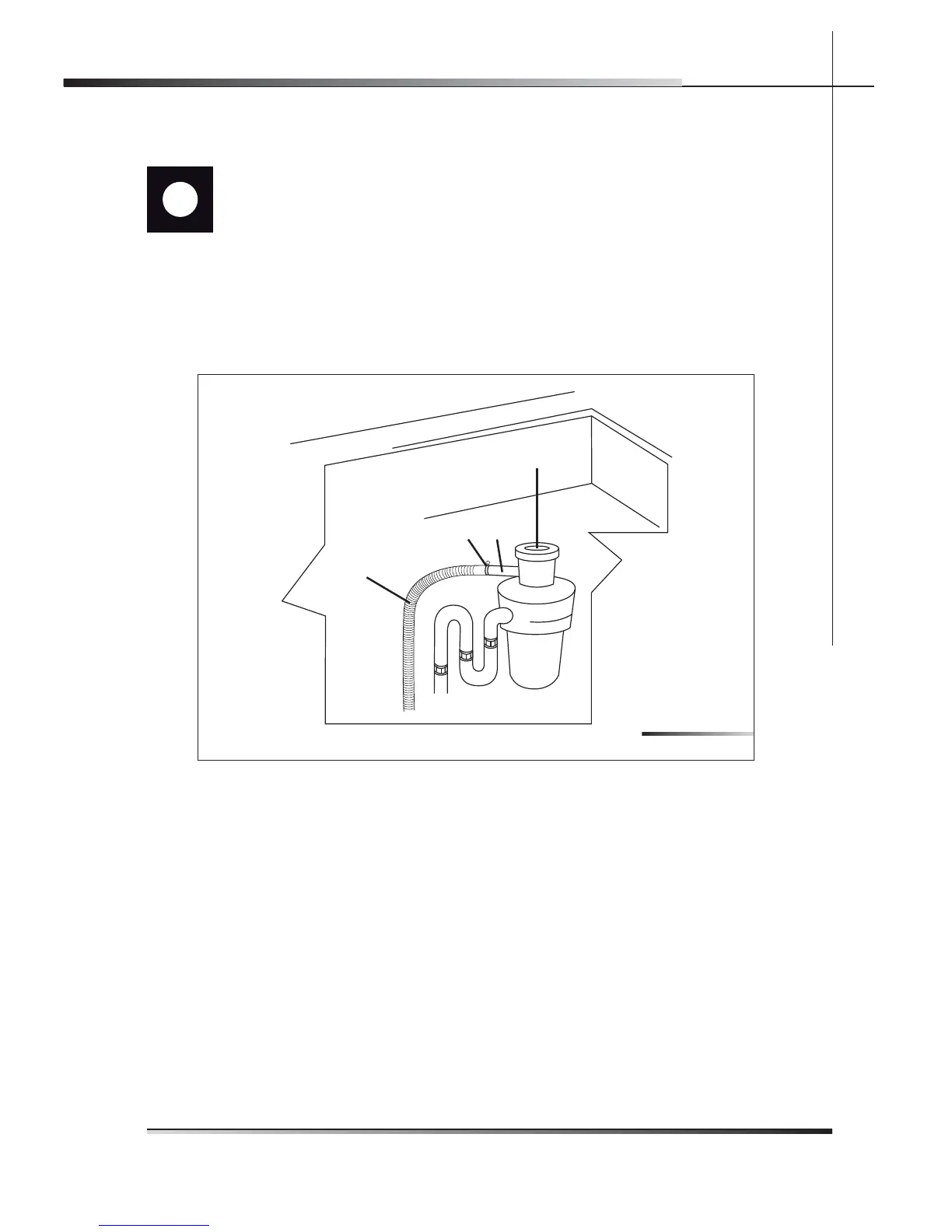

Fig. 5-14
B
D
C
A
