Smeg SAP306X-9 User Manual

Instructions for the installer
37

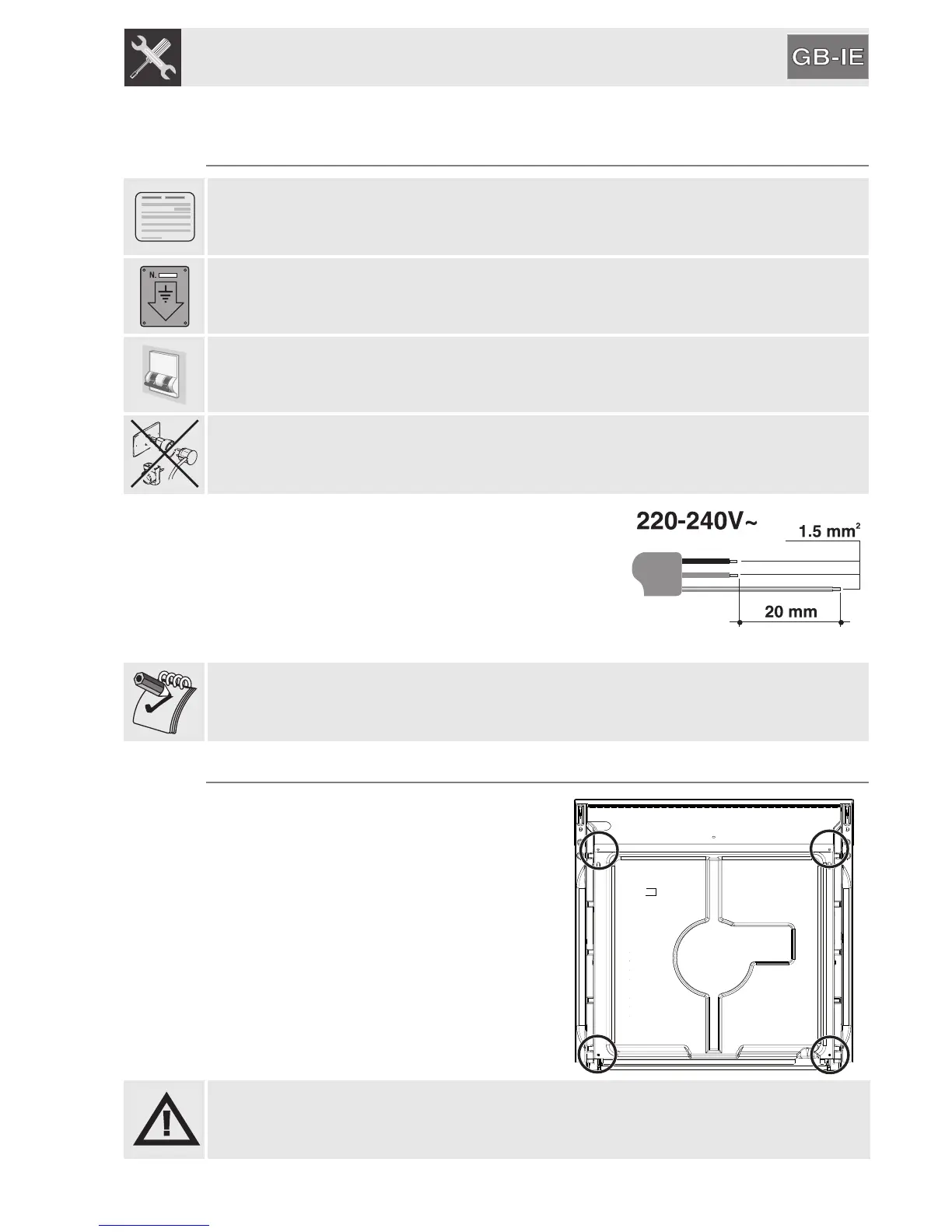

10.INSTALLING THE APPLIANCE
10.1 Electrical connection
The identification plate bearing the technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to earth in compliance with electrical system
safety regulations.
If a fixed connection is being used, fit the power line with an omnipolar circuit-
breaker in accordance with the installation rules, located in a position which is
easy to reach and near the appliance.
If a plug and socket connection is being used, make sure that the plug and
socket are compatible. Avoid use of adapters and shunts as these could cause
overheating and a risk of burns.
Operation at 220-240 V~: use a H05V2V2-F type
three-core cable (3 x 1.5 mm
2
).
The end to be connected to the appliance must
have an earth wire (yellow-green) at least 20 mm longer than the others.
WARNING: The values indicated above refer to the cross-section of the internal
conductor.
10.2 Cable replacement
Should the supply cable need replacing,
remove the back guard by unscrewing the
screws to gain access to the terminal.
Replace the cable. The cable cross-
section must be no less than 1.5 mm² (3 x
1.5) (see 10.1 Electrical connection).
Make sure that the cables (for the oven or
any hob) follow the best route in order to
avoid any contact with the oven.
WARNING: The tightening torque of the screws of the terminal supply wires
must be 1.5 - 2 Nm.

Smeg SAP306X-9 Specifications

General

Type	Built-in
Oven Type	Electric
Energy Input	Electric
Width	60 cm
Cleaning System	Vapor Clean
Cavity Material	Enamel
Temperature Control	Electronic
Minimum Temperature	50 °C
Maximum Temperature	250 °C
Timer	Yes
End of Cooking Acoustic Alarm	Yes
Controls	Knobs
Number of Glass Door	3
Soft Close	Yes
Energy Efficiency Class	A
Voltage	220-240 V
Frequency	50/60 Hz
Control Type	Electronic
Number of Cooking Levels	3
Thermostat	Yes
Temperature Range	50 - 250°C
Grill	Yes
Defrost Function	Yes
Timer Type	Electronic
Cooling Fan	Yes
Light	Yes
Door Glazing	Triple
Color	Stainless Steel
Energy Consumption in Conventional Mode (MJ)	3.1 MJ
Energy Consumption in Conventional Mode (KWh)	0.9 kWh
Energy Consumption in Forced Air Convection (MJ)	2.7 MJ
Energy Consumption in Forced Air Convection (KWh)	0.75 kWh
Dimensions (H x W x D)	59.5 x 59.5 x 56.5 cm
