Istruzioni per l’installatore
13.2 Positioning the oven

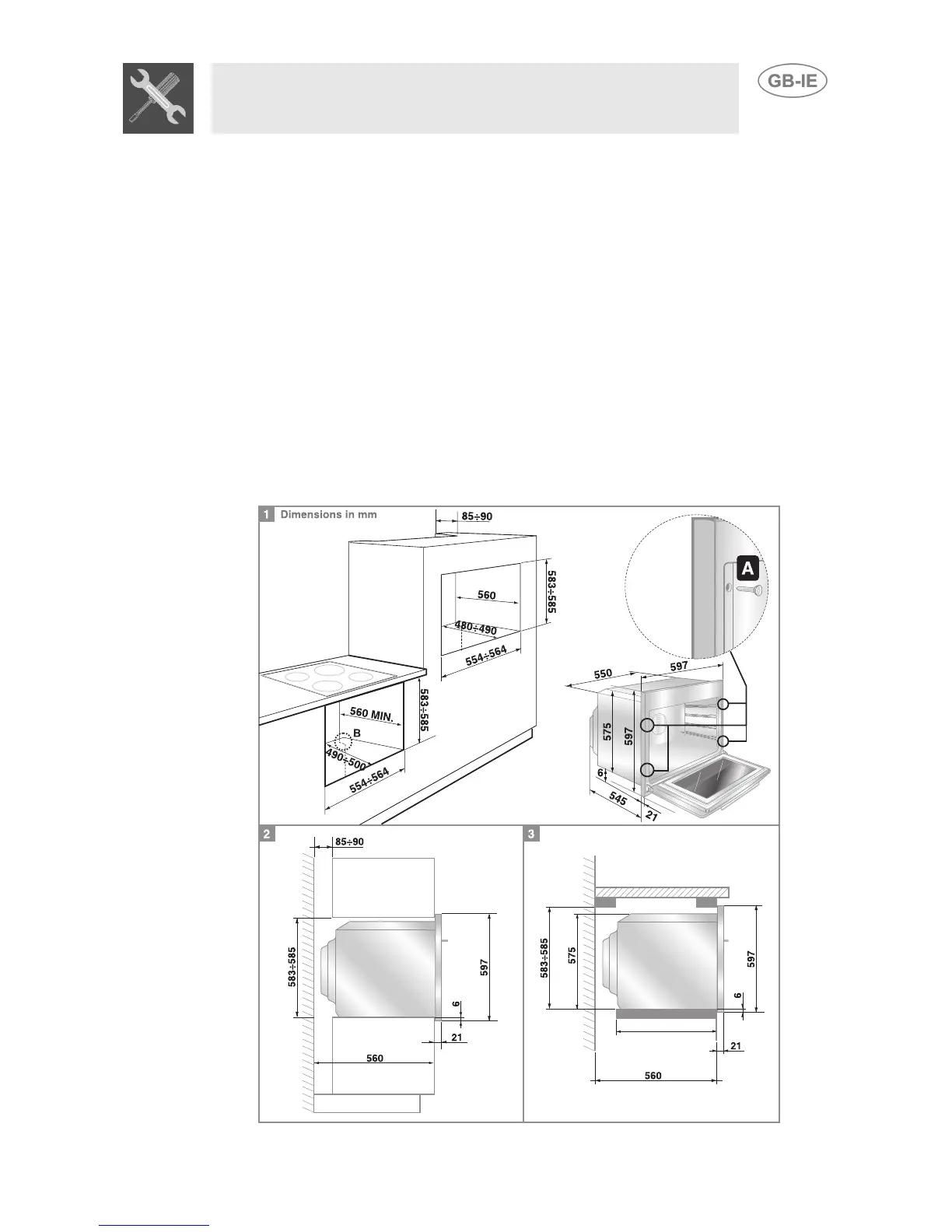

The appliance is designed for building-in to cabinets made from any heat-
resistant material. Comply with the dimensions shown in figures 1, 2, and
3. When installing under worktops, comply with the dimensions shown in
figure 1-3. When installing under worktops incorporating combined hobs,
a gap of at least 110 mm must be left from any side wall, as shown in
figure 1.
When installing in tall units, comply with the dimensions shown in figure 1-
2, bearing in mind that the top/rear of the unit must have an opening 80-90
mm deep. Screw the 4 screws A into the inside of the frame (fig. 1). For
installation under counter-top hobs, make sure that the rear/bottom of the
unit has an opening similar to that shown in figure 1 (ref. B). See the
instructions supplied with the hob for the relative positioning and fixing
procedures.
