Instructions for the installer
11.2 Positioning the oven

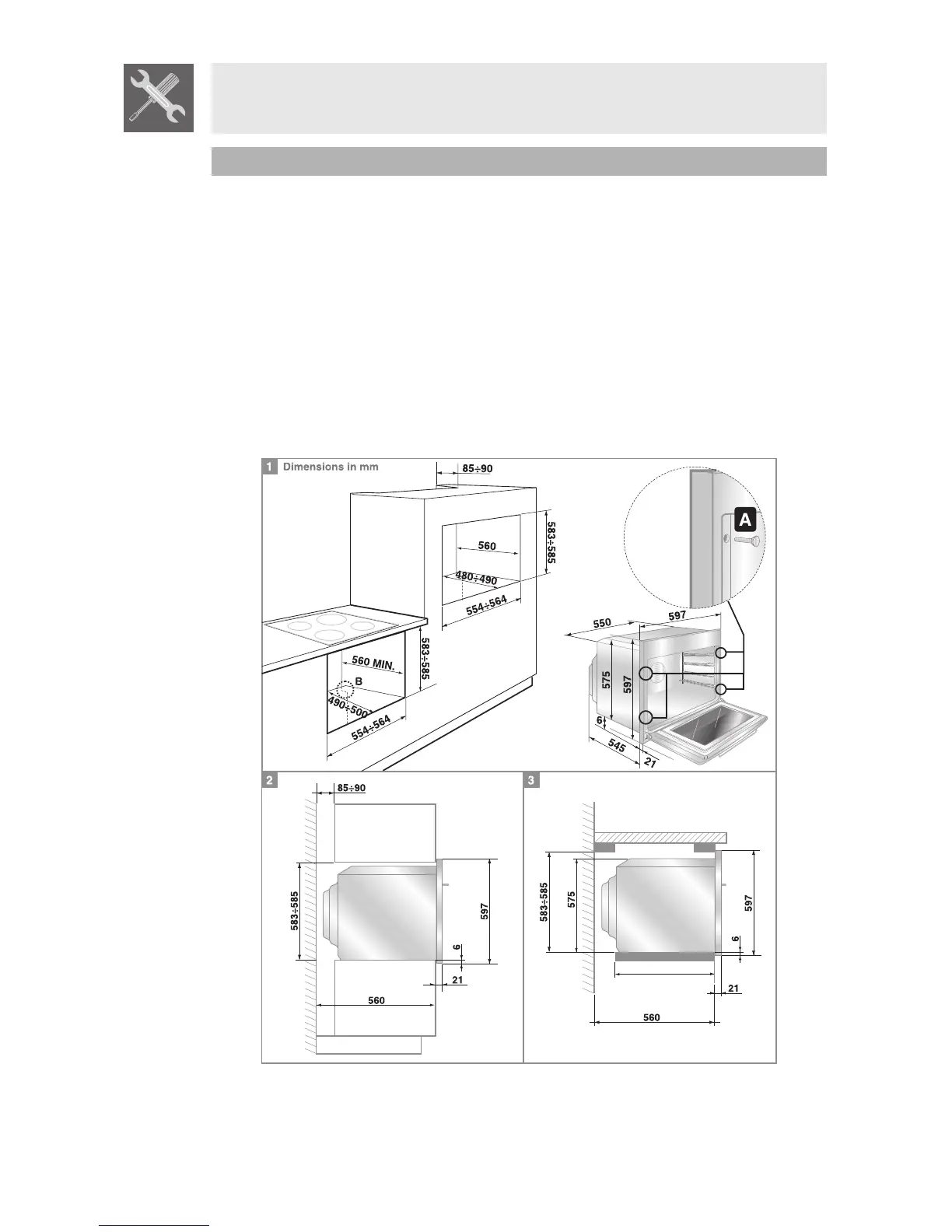

The oven is designed for mounting into any piece of furniture as long as it
is heat-resistant. Proceed acording to the dimensions shown in Figures 1,
2 and 3. For installing under a work top, follow the dimensions given in
Figure 1-3. When installing under worktops incorporating combined hobs,
a gap of at least 110 mm must be left from any side wall, as shown in
figure 1.
When installing in tall units, comply with the dimensions shown in figure
1-2, bearing in mind that the top/rear of the unit must have an opening
80-90 mm deep. Tighten the 4 screws A inside the frame (fig. 1). For
installing beneath a non-integrated top, allow for a rear and bottom
clearance as shown in Figure 1 (ref. B). See relevant instructions for fitting
and securing the cook top.
