Instructions for the installer
2.2 Positioning the oven

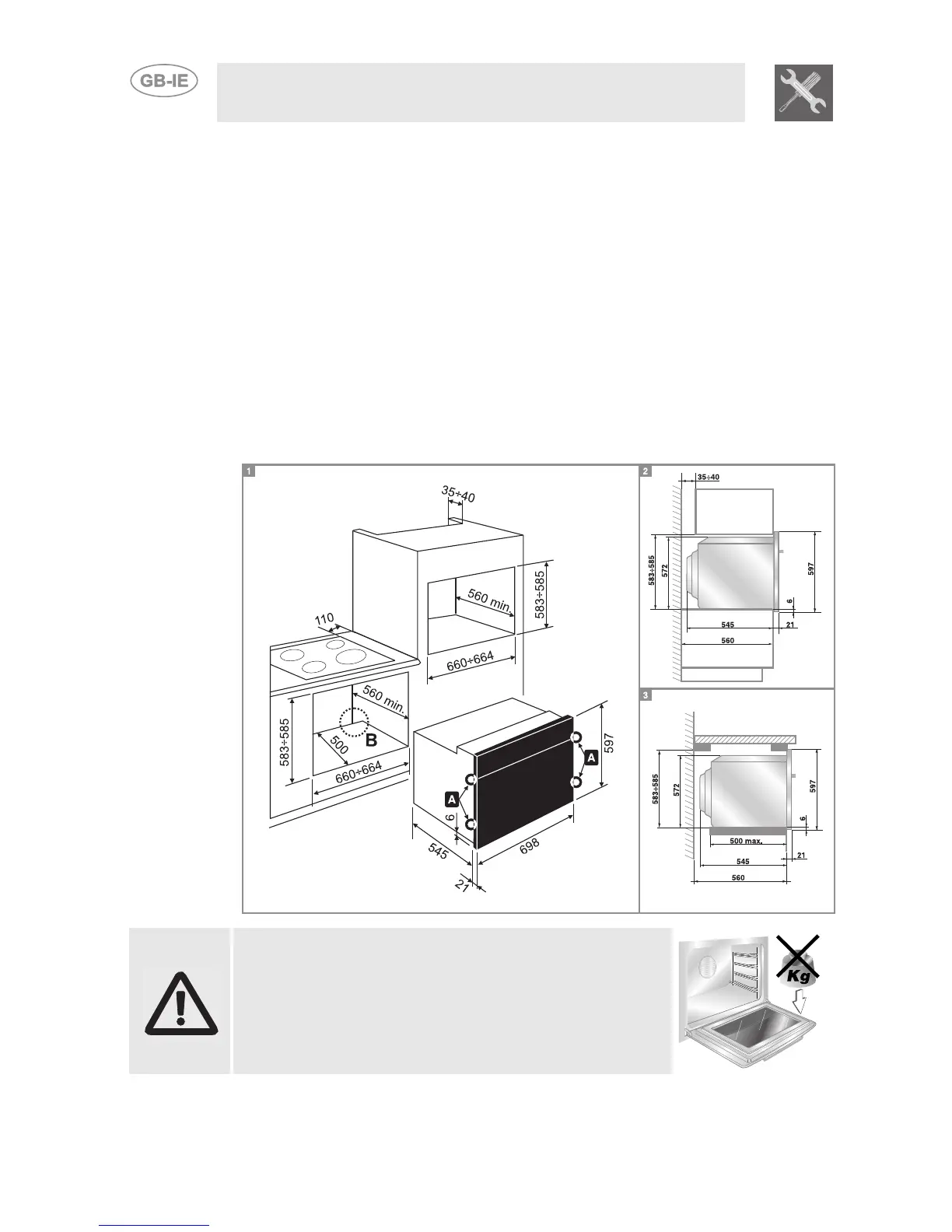

The oven is designed for mounting into any piece of furniture as long as
it is heat-resistant. Proceed according to the dimensions shown in
Figures 1, 2 and 3. For installing under a work top, follow the
dimensions given in Figure 1-3. For installing under a work top with
combined cooking hobs, ensure a minimum clearance from any side
walls of at least 110 mm as shown in Figure 1. When installing in tall
units, comply with the dimensions shown in figure 1-2, bearing in mind
that the top/rear of the unit must have an opening 80-90 mm deep.
Tighten the 4 screws A inside the frame (fig. 1).
For installing beneath a countertop hob, allow for a rear and bottom
clearance as shown in Figure 1 (ref. B). See the relevant instructions
for fitting and securing the hob.
Never use the oven door to lever the oven into
place when fitting.
Avoid exerting too much pressure on the oven door
when open.
