2 / INSTALLING YOUR APPLIANCE
EN
••

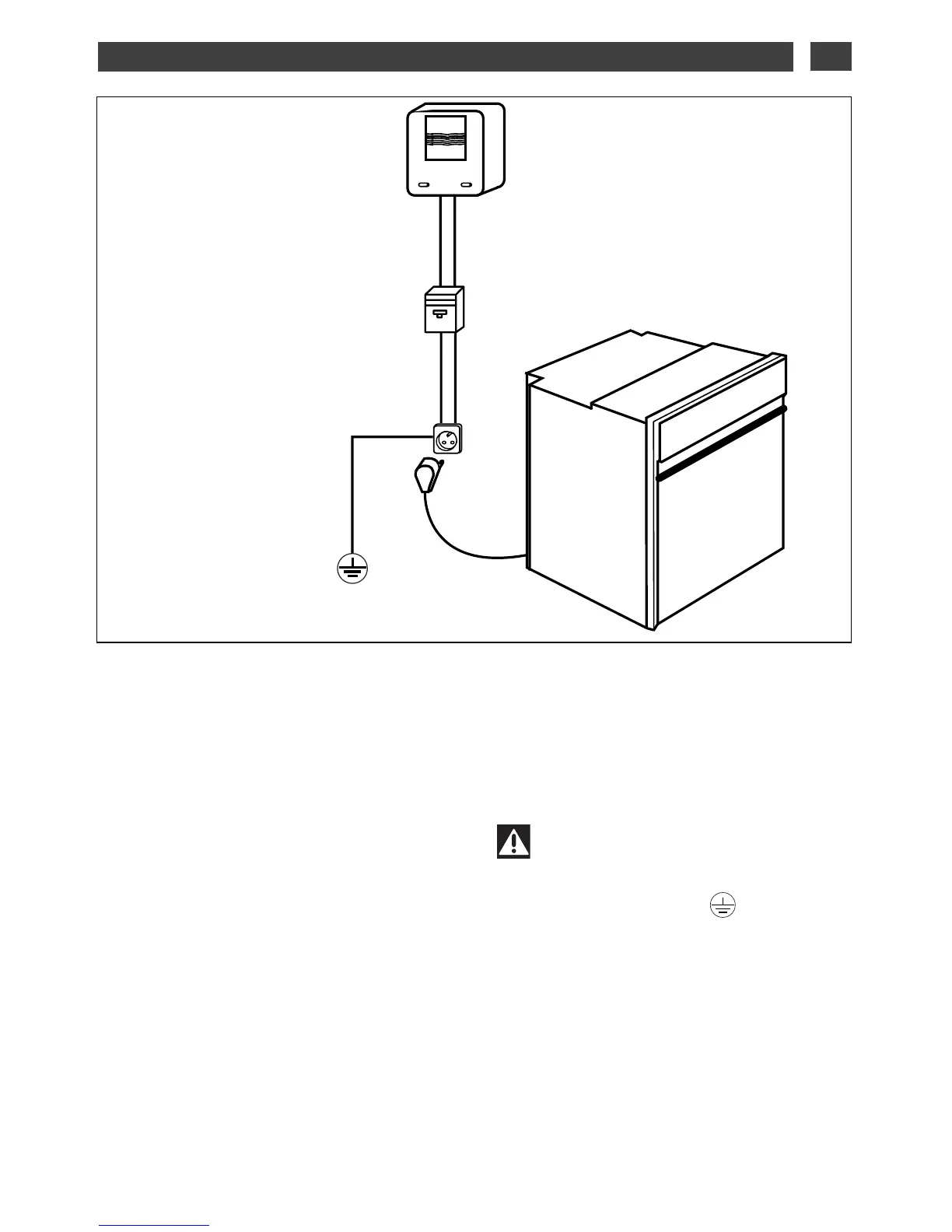

ELECTRIC CONNECTION
Single-phase 20A Counter
220-240V~ 50Hz
Electrical outlet
2 prong receptacle + earth
CEI Standard 60083
220-240 V ~ Single-phase line
Power
supply cable
length 1.50 m approx.
16A fuse or differential
circuit breaker
Electrical safety must be provided by a
correct build-in. During fitting and
maintenance operations, the appliance must
be unplugged from the electrical grid; fuses
must be switched off or removed.
The electrical connection should be
performed before the appliance is installed in
the cabinet.
Ensure that:
- the electrical installation has sufficient
voltage,
- the electrical wires are in good condition
- the diameter of the wires complies with the
installation requirements.
Your oven should be plugged in using a
(standardised) power cable with 3
conductors of 1.5mm2 (1 live + 1 neutral + 1
earth) which must be connected to a 220-
240V~ single-phase grid. Make sure that the
appliance can be disconnected from the
mains after installation. Disconnection can be
achieved by leaving a mains switch accessible
or by incorporating an interrupter in the fixed
pipe in compliance with the installation rules.
Warning
The safety wire (green-yellow) is connected
to the appliance’s terminal and must be
connected to the ground lead of the
electrical set-up.
In the case of connection to an electric wall
socket, it must remain accessible after
installation.
The fuse in your set-up must be 16 amperes.
If the power cable is damaged, it must be
replaced by a cable or a special kit
available from the manufacturer or its After-
Sales Service Department.
