34 - INSTALLATION 91477A870/A
INSTALLATION
Electrical connection
General information
Check the mains characteristics against the data
indicated on the plate.
The identification plate bearing the technical
data, serial number and brand name is visibly
positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to ground
using a wire that is at least 20 mm longer than
the other wires.
Terminal block connection
Arrange the cables in an orderly manner to
avoid overlapping or contact with any jumpers.
The cables must be of the correct length to
avoid build-up/twisting inside the terminal box.

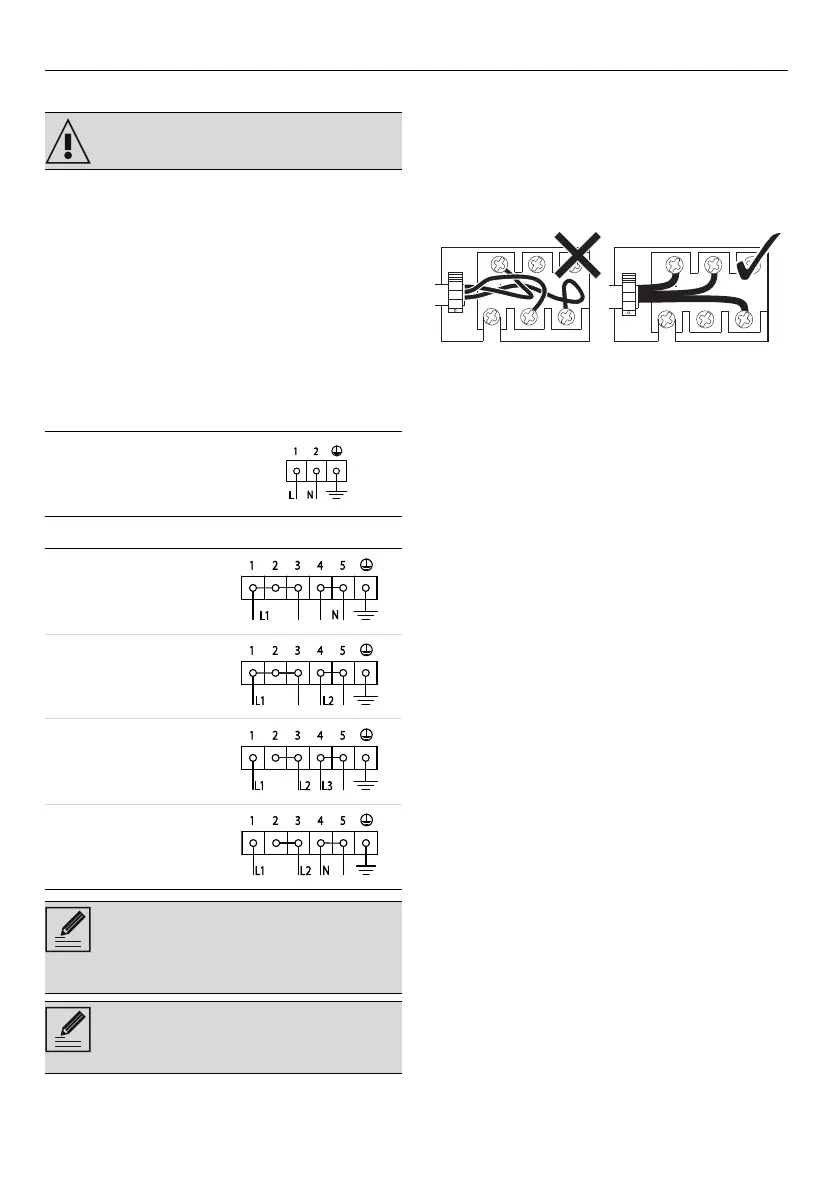

The appliance can work in the following modes:
30 cm models:
60 cm models:
See General safety instructions.
220-240 V 1N~
3 x 1.5 mm ²
three-core cable
220-240 V 1N~
5 x 2.5 mm ²
five-core cable
220-240 V 2~
5 x 2.5 mm ²
five-core cable
220-240 V 3~
5 x 2.5 mm ²
five-core cable
380-415 V 2N~
5 x 2.5 mm ²
five-core cable
The aforementioned power cables are
sized taking into account the
coincidence factor (in compliance with
standard EN 60335-2-6).
Always use the jumper provided, if any,
for each connection; terminals 2 and 3,
4 and 5 must always be connected.
