INSTALLATION - 3791477A870/A
opens on rear:

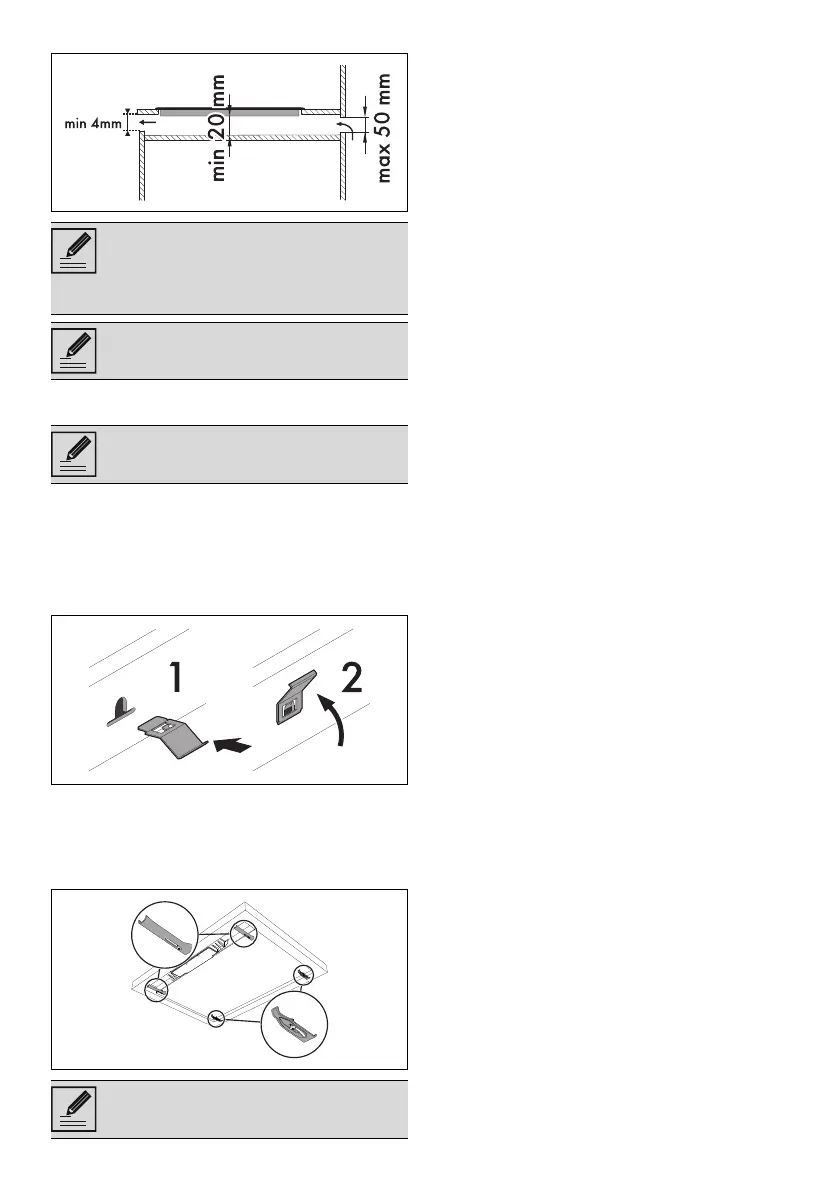

Fixing to the built-in cabinet
To ensure the hob is fixed and centred as
accurately as possible, the clips provided must
be positioned as described below:
1. Fit the clips by gently pressing them
horizontally into the appropriate space.
2. Then turn them upwards to fix them in place.
Fixing brackets
Screw the mounting brackets into the holes on
the sides of the bottom casing to fasten the hob
correctly to the structure.
Fixed connection
Fit the power line with an all-pole circuit breaker
with a contact separation distance sufficient to
provide complete disconnection in category III
overvoltage conditions, pursuant to installation
regulations.
For the Australian/New Zealand market:
The circuit breaker incorporated in the fixed
connection must comply with AS/NZS 3000.
Testing
At the end of installation, carry out a brief
inspection test. If it fails to work, after making
sure that you have carried out the instructions
correctly, contact Technical Support.
Instructions for the installer
• If you use a plug (if present) to connect to
the power supply, the plug must be
accessible after installation.
• Do not bend or trap the power cable.
• The appliance must be installed according
to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with sharp
or hot parts.
If installed on top of an oven, the latter
must be equipped with a cooling fan.
The clips should not be installed at the
front of the appliance.
If tightened too much the glass may be
strained and crack.
