Instructions for the installer
14
6. POSITIONING IN THE COUNTER TOP
The following operation requires building and/or carpentry work so must be
carried out by a competent tradesman.
Installation can be carried out on various materials such as masonry, metal,
solid wood or plastic laminated wood as long as they are heat resistant (T
90°C).
6.1 Fixing to the supporting structure

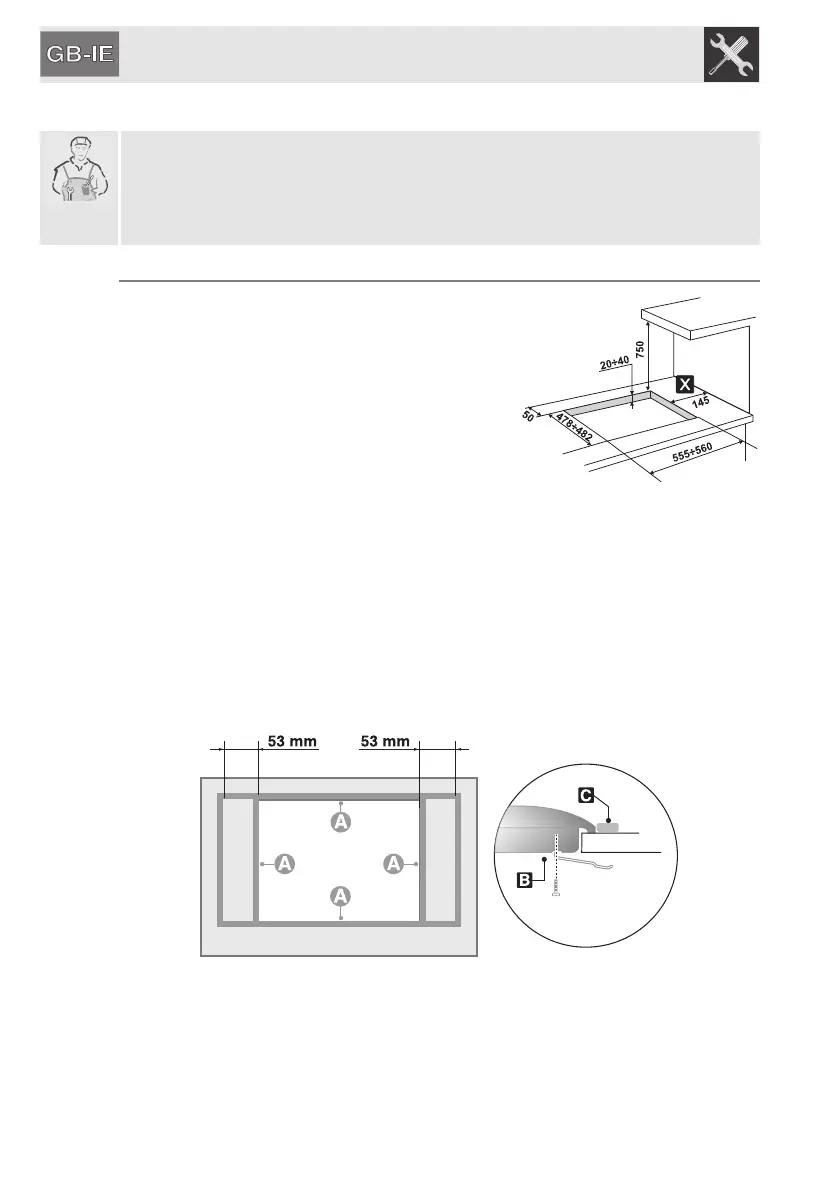

Create an opening with the dimensions shown in
the figure in the top surface of the counter,
keeping a minimum distance of 50 mm from the
rear edge.
This appliance can be mounted against walls
higher than the work surface on condition that a
distance of 145 mm be kept between the
appliance and the wall as shown in the figure so
as to avoid damage from overheating.
Make sure that there is a minimum distance of 750 mm between the stoves and
any shelf that may be installed directly above it.
Carefully position the supplied insulating seal on the outer perimeter of the hole
made in the counter top as shown in the figure below, trying to make it stick on
the entire surface by applying light pressure on it with your hands. Refer to the
dimensions in the figure, bearing in mind that the sides A must brush against the
hole. Fix the hob to the unit using the appropriate brackets B supplied.
Carefully trim the surplus away from edge C beyond the seal. The dimensions
given in the following drawing refer from the hole to the inside of the seal.
