5.8 Auxiliary power and I/Os - CTR
This connector is used for the connection of digital I/Os, allowing the device to interface with an external system
(eg. a PLC).

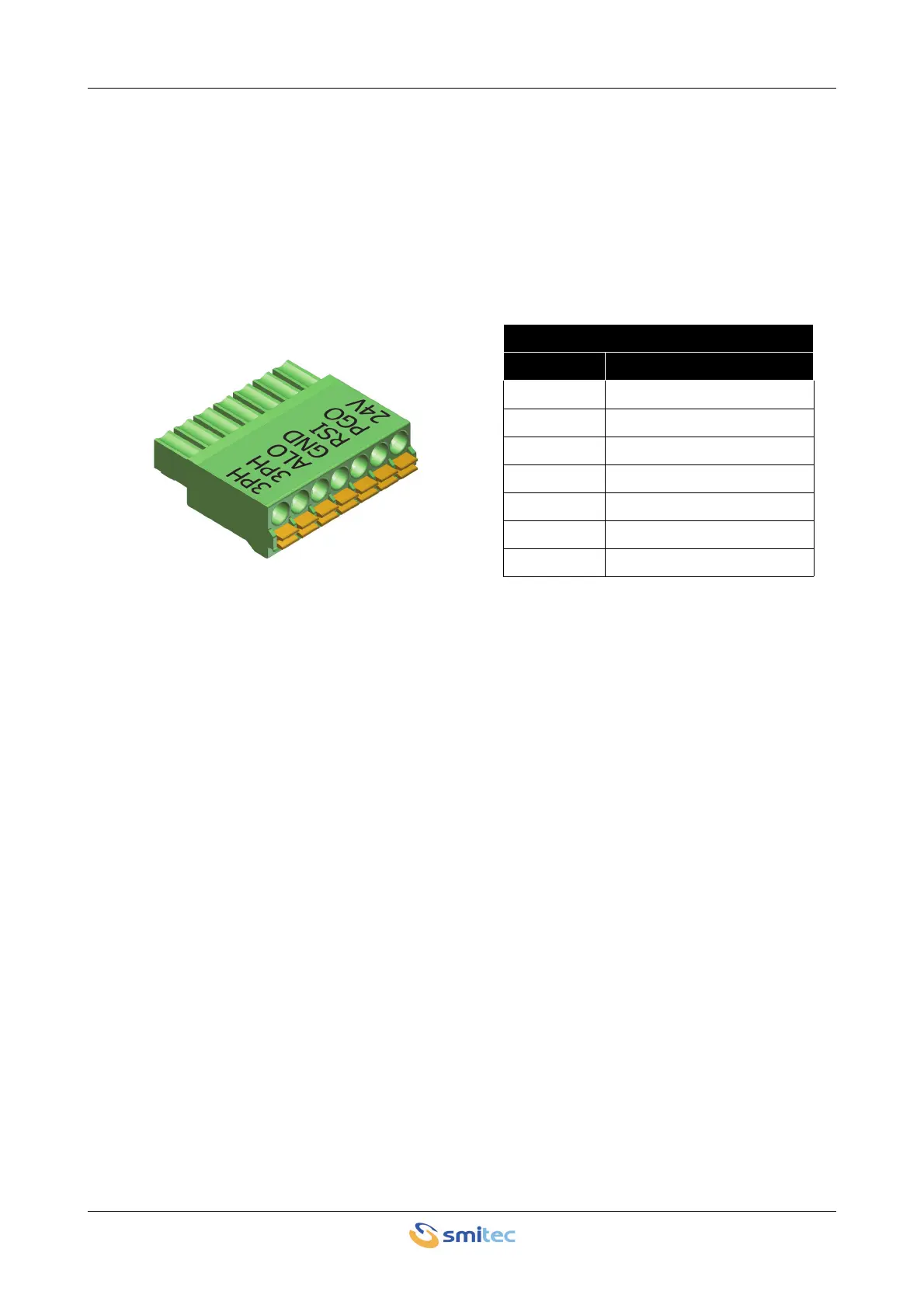

The following image shows the pin configuration:
Power supply 230V
Marker Signal
3PH 1PH/3PH SETTING - jumper
3PH 1PH/3PH SETTING - jumper
ALO ALARM - output
GND GND
RSI RESET - input
PGO POWER GOOD - output
24V 24V - power supply
