GPP ELECTROFISHER
ADVANCED TROUBLESHOOTING
www.smith-root.com
GPP Electrofishers have two 500-watt accessory 12 Volt AC windings.
The accessory output terminals are located on the generator end-
bell.
• Set the GPP Control Box Voltage range switch to off. Adjust
generator engine speed to 3600 RPM using a vibrating
tachometer which is available at most small engine shops.

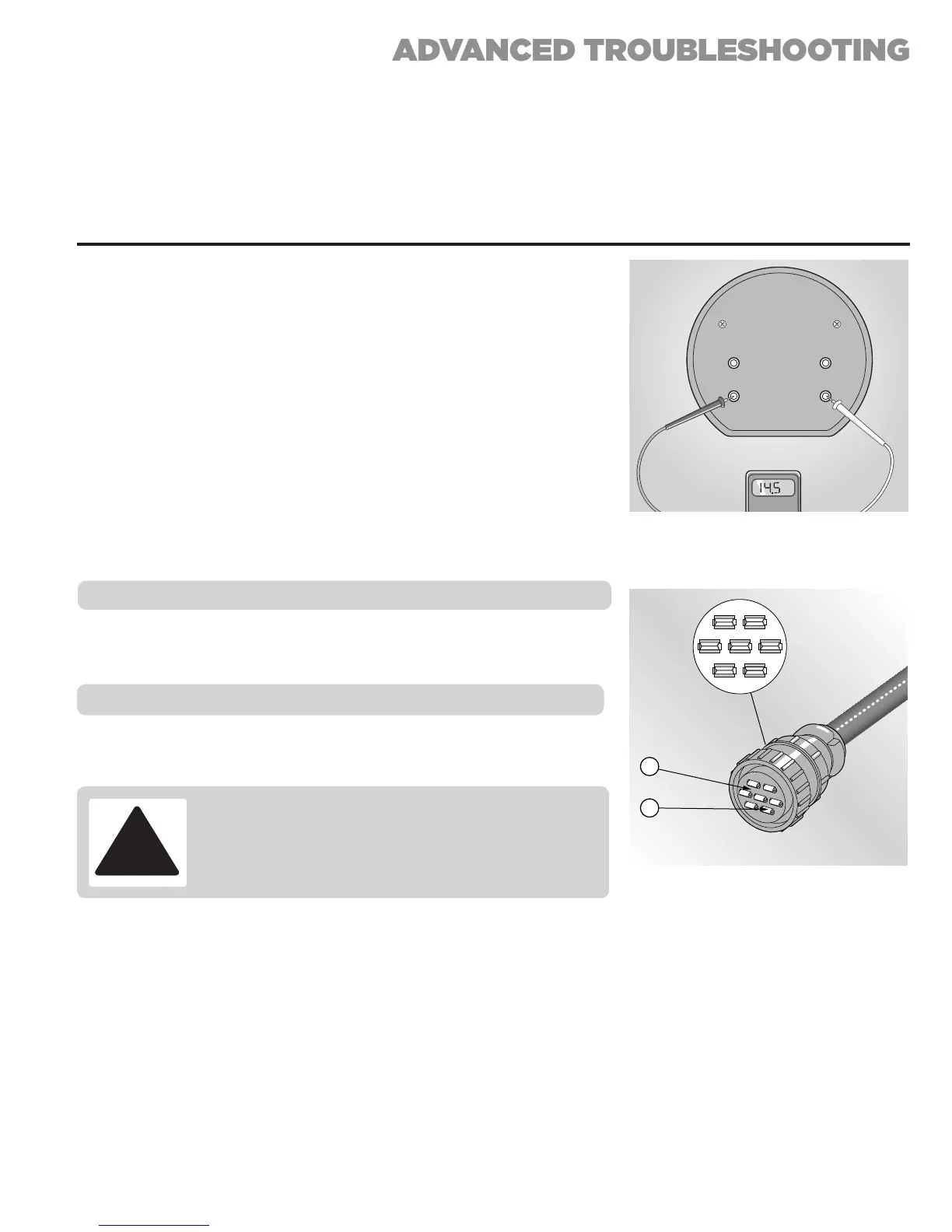

• Check the 12 Volts AC on the end bell of generator using an AC
Voltmeter (See Fig. 1.1). They should read approx. 14.5 Volts,
60Hz.
2.5 AND 5.0 GPP ONLY:
• Check the 12 Volts AC on the output connector, pairs: 5 & 6 (See
Fig. 1.2).
V
5
6
12
345
67
IMPORTANT!: High voltages are present when
generator is running. Only qualified personnel
should attempt high voltage measurements. We
suggest forming a barricade around the test area
and posting appropriate high voltage warning
! !
PROBLEM: NO OUTPUT FROM GPP ELECTROFISHER
PROCEDURE 1: CHECK GENERATOR 12 AC VOLTAGES (ALL MODELS)
Fig. 1.2
Fig. 1.1
• If the Voltages are OK, go to procedure 2.
• Flash generator (Follow procedure 8).
• Restart procedure 1.
• If 12 Volts AC are still not present, go to procedure 3.
