Smith-Root GPP 2.5 - 2.5 & 5.0 Gpp Generator Stator Wiring

38
GPP ELECTROFISHER
USER’S MANUAL
2016

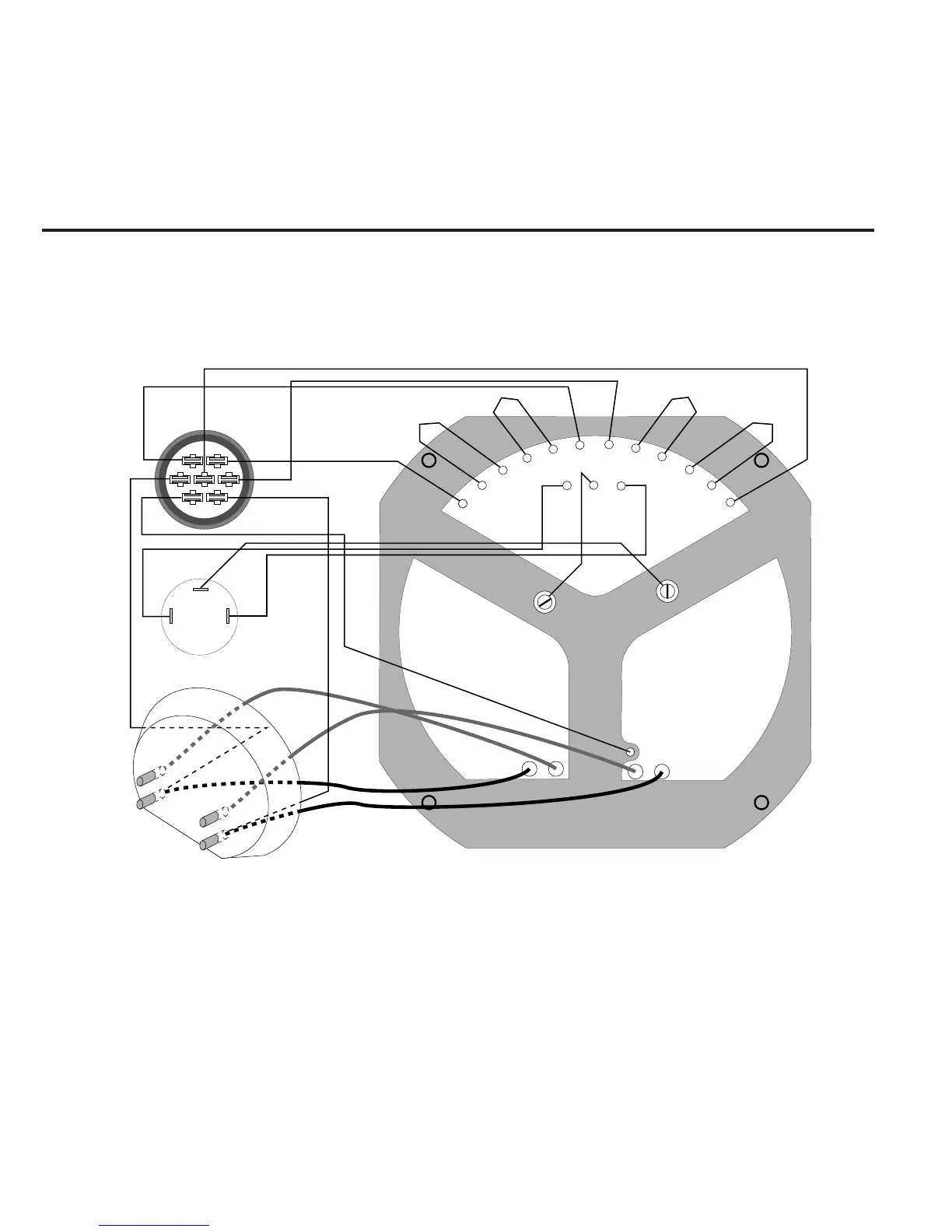

2.5 & 5.0 GPP GENERATOR STATOR WIRING
AC AC
Neg
1
2
3
4
5
6
7
8
9
10
11
12
55 66
77
2
1
5
3
7
6
Frame Ground
GPP Connector
Stator 
end 
cover
Stator end with end cover removed
4
Rectifier assem.
5.0 GPP
Generator Terminals
1 - 2 = 115 Volts @ 883 VA
Respectively through
11 - 12 = 115 Volts @ 883 VA
(Pairings of Odd # on Left & Even #
on Right.)
Output @ Binding Posts
Black wires 12 Volts @ 500 VA
White wires 12 Volts @ 500 VA
All Wires to GPP Connector14 Ga.
14 Ga.
10 Ga.
2.5 GPP
Generator Terminals
1 - 2 = 115 Volts @ 441.5 VA
Respectively through
11 - 12 = 115 Volts @ 441.5 VA
(Pairings of Odd # on Left & Even # on Right.)
Output @ Binding Posts
Black wires 12 Volts @ 500 VA
White wires 12 Volts @ 500 VA
ADVANCED TROUBLESHOOTING
