Smittybilt XRC8 User Manual

Installation Manual
Over Motor Mounting Instructions

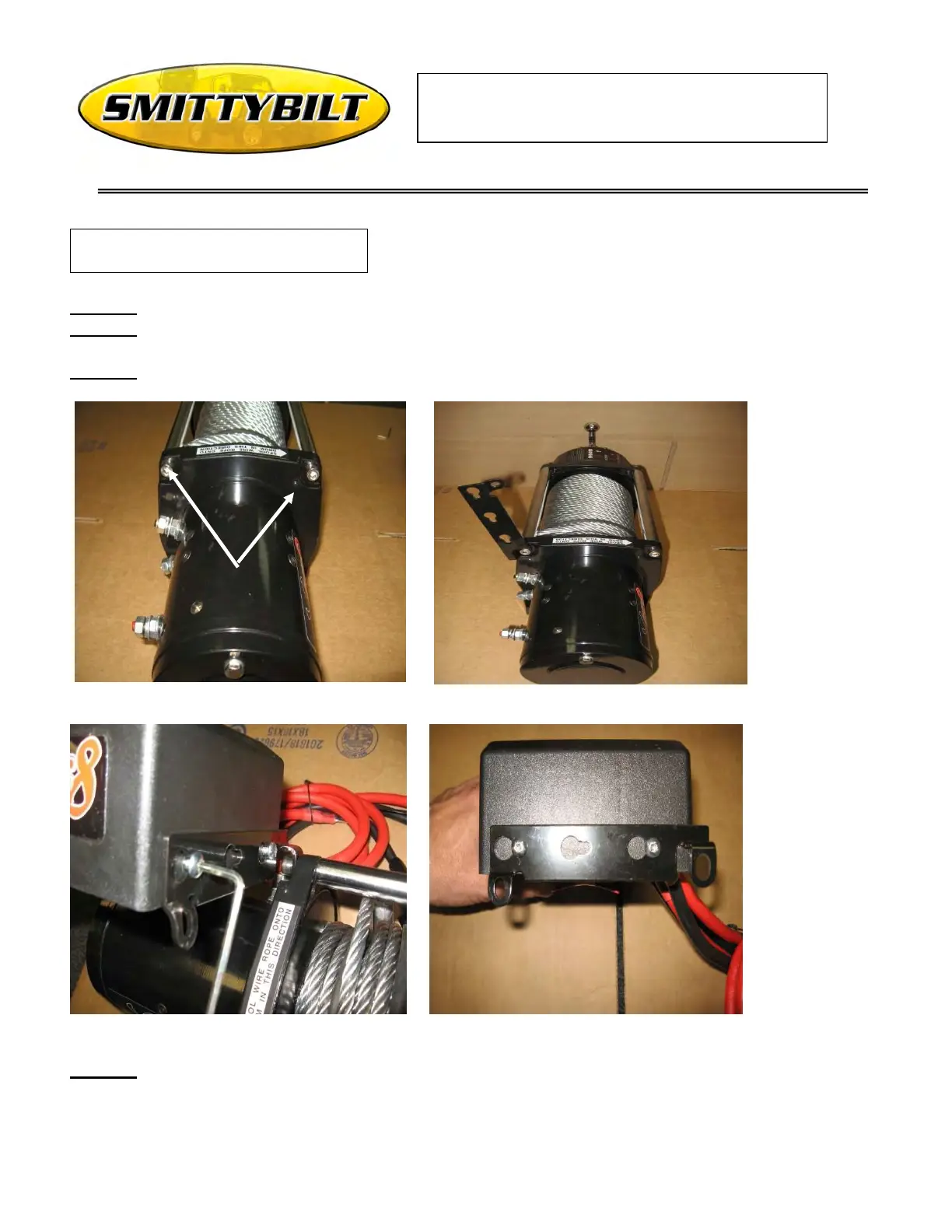

STEP 1: Locate and identify the location for the mounting bracket. (Fig A)
STEP 2: Attach the rear part of the bracket to the winch by removing the rear tie rod bolt. Place the bracket
over the hole and re-install tie rod bolt. Do not tighten completely. (Fig B)
STEP 3: Loosen (Back-Out) the two screws on the side of the solenoid box and place bracket over the two
bolts and slide the solenoid box back and tighten the bolts securely. (Fig C, D)
(Fig A) (Fig B)
(Fig C) (Fig D)
STEP 4: Lower down the solenoid box and attach the front of the bracket securely to the mounting location
on the front of the winch with the included bolt. (Fig E)
