SMONET Y001 - Door Handing Identification; Thumb Turn Piece Adjustment

5)Adjust Thumb Turn Piece
< 08 >
4)Identify Door Handing
The door is "Left-handle" if
the hinges are on the left
side of the door.
Whereas the door is "Right-han-
dle" if the hinges are one the
right side of the door.
Rotate the thumb turn piece to
“Horizontal Direction” for
Left-handle（open into room）
door when in unlock status.
Rotate the thumb turn piece to
“Vertical Direction” for
Right-handle（open into room）
door when in unlock status.

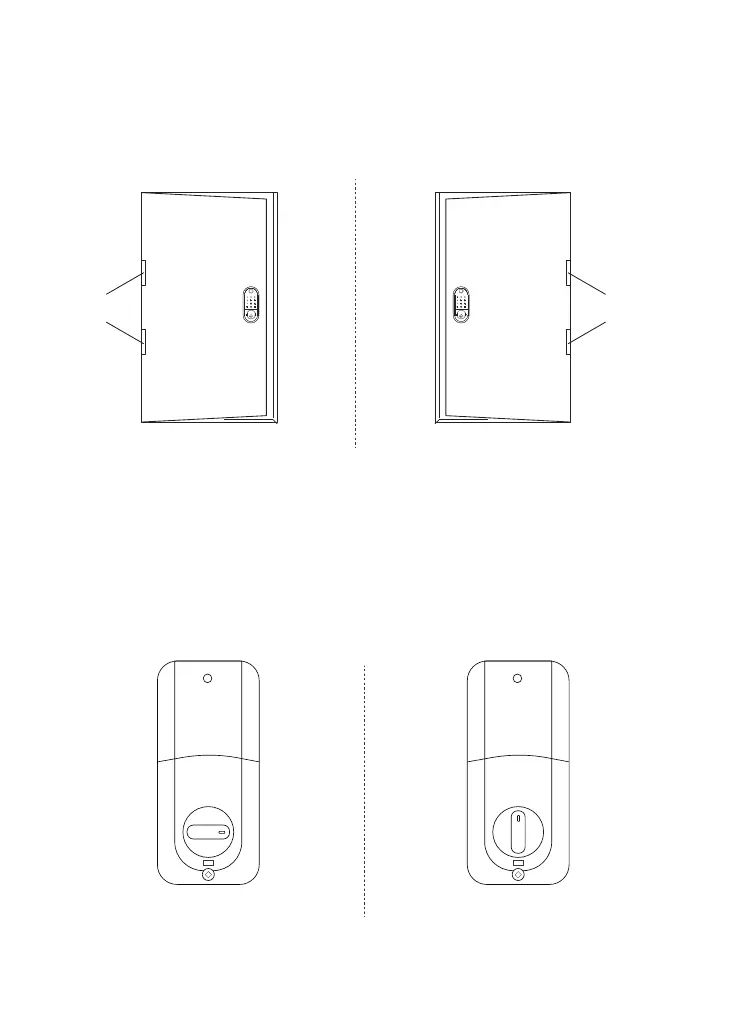

Left-handle Right-handle
Hinge Hinge
Left-handle Right-handle
