• 8 •
EEBC500B-INT-Z
10. ASSEMBLING YOUR CHARGER
It is important to fully assemble your charger before
use. Follow these instructions for easy assembly.
TOOLS NEEDED
Phillips Head Screwdriver
Needle Nose Pliers

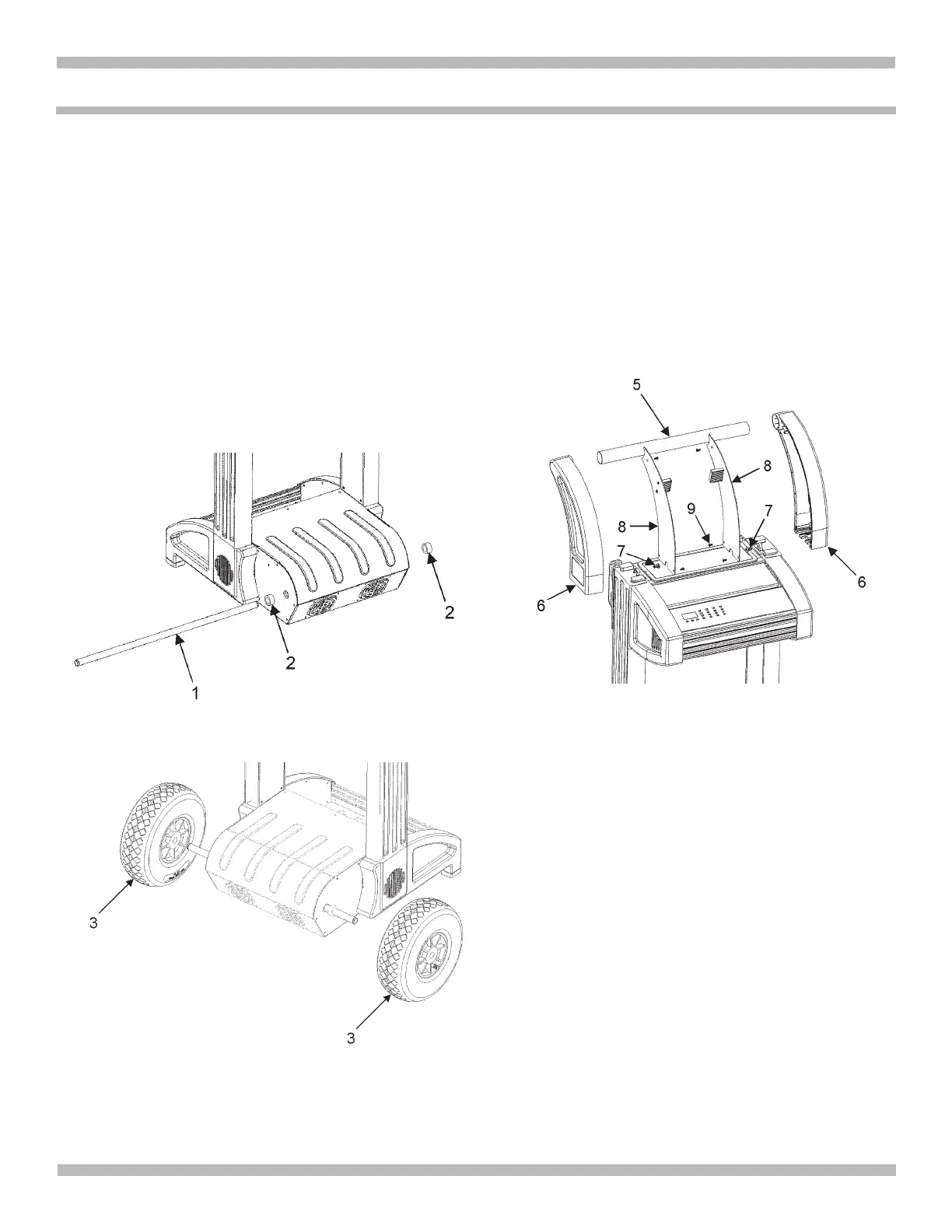

INSTALL AXLE AND WHEELS
1. Slide the axle (Item 1) through the bottom housing
until it goes through the other side. It should self-align,
but may require some assistance.
2. Slide a spacer (Item 2) onto each end of the axle.
3. Slide a wheel (Item 3) onto each end of the axle
shaft, and fasten everything using an E-clip
on each end.
INSTALL HANDLE
1. Slide the shaft (Item 5) into one of the handles
(Item 6), followed by sliding each handle into the top
base, making sure the handles guide into the tracks of
the legs. Align the anti-rotation slot when inserting the
shaft into the plastic handle.
2. Fasten each handle with a ¼” self-tapping screw
(Item 7) on each side.
3. Install each cover (item 8) with three self-tapping
screws (Item 9).
To Next Page
