105
ZCDR8850HCE Rev. D (01/16)

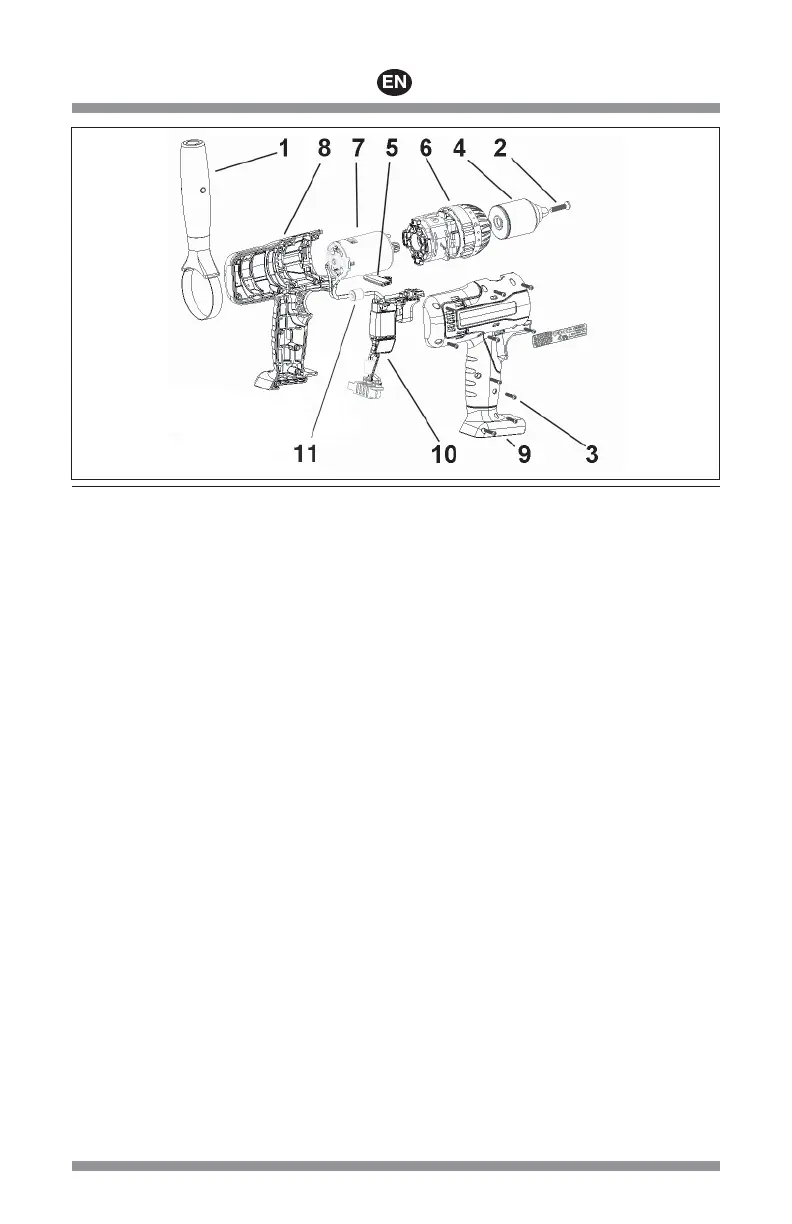

Figure 18: Cordless Drill Exploded View
Parts Listing
Ref Description
Qty
Part Number
1 auxiliary handle 1
CDR7850 - 40
2 screw, chuck 1
CDR4850A54
3 thread forming screw 10
ME3L33
4 chuck, keyless 1
CDR8815-9
5 forward/reverse bar 1
CDR7850-16
6 gear box 1
CDR7850H400
7 motor & pinion assy 1
CDR7850-50R
8 left housing 1
CDR7850-101
9 right housing 1
CDR7850-102
10 switch/LED assembly 1
CT7850-217B
11 ferrite ** 1
CDR7850-52
Battery Parts List
Battery Part No
Description
Color
CTB8185 18V Battery
CTB8185C 18V Battery Camouflage
CTB8185G 18V Battery Green
CTB8185O 18V Battery Orange
Charger Parts List
Drill Model No CTC728
Description
Body Part Number Cord Part Number
CDR8850H CTC720 Charger and Cord for USA CTC720 * CTC720-120 *
CDRA8850H CTCA720 Charger and Cord for Australia CTC720 * CTCA720-120 *
CDREU8850H CTCEU720 Charger and Cord for Europe
Charger and Cord for United
Kingdom
CTC720 * CTCE720-120 *
CTCU720-120 *
CDRJ8850H CTCJ720 Charger and Cord for Japan CTC720 * CTCJ720-120 *
CDRK8850H CTCK720 Charger and Cord for Korea CTC720 * CTCK720-120 *
CTC728 Mobile Charger CTC728 * N/A
* User Replaceable Parts
**CDR7850100CE only
