Snap-On CT9010 - Parts Listing

37
ZCT9010NA Rev. A (08/20)

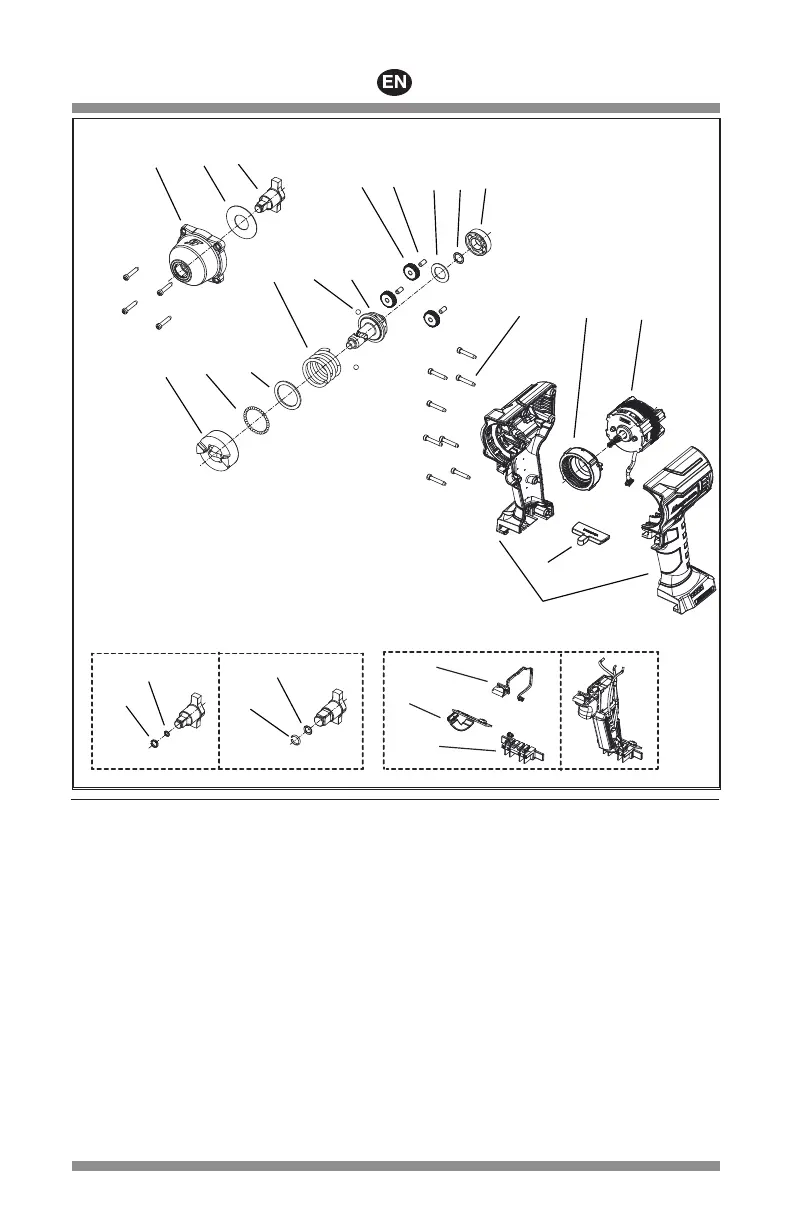

Figure 9: Cordless Impact Wrench Exploded View
5A1
5A2
5A3
18B
18B1
18B2
18A
5
18A1
18A2
20 19 18
4
1
6 3 2
17 16 15
14 13 12
11 10 9 8 7
Parts Listing
Ref Description
Qty
Part Number
1 housing set 1
CT9010-100R
2 18V brushless dc motor 1
CT9010-50
3 ring gear & holder assy 1
CT9010-110
4 forward / reverse bar 1
CT8950-16A
5 controller assembly 1
CT9010-217
5A1 LED assembly *
CT9010-60
5A2 speed control PCB *
CT9010-62
5A3 terminal block repair kit *
CT9075-130R
6 thread forming screw 12
ME3L30
7 bearing 1
ME11A33A
8 o-ring 1
ME7B52
9 washer 1
CT30-115
10 pin 3
ME2A168
11 planet gear 3
CT4410-36M
12 gear carrier 1
CT8810-162
13 ball 2
ME9A23
14 compression spring 1
CT8810-206
Ref Description
Qty
Part Number
15 washer 1
ME5A195
16 ball 33
ME9A14
17 hammer 1
CT8810-111
18A 3/8" anvil assembly 1
CT9010-113R
18A1 o-ring *
ME7B63
18A2 ring *
ME7A148
18B 1/2" anvil assembly 1
CT9015-113R
18B1 o-ring *
ME7B3
18B2 ring *
ME7A97
19 washer 1
ME5A193
20 nose assembly 1
CT9010-103
* included in assembly, use as required
