Snap-On ECKO User Manual

ZECKOROLL REV ‘A’ OCT 2018
14
11

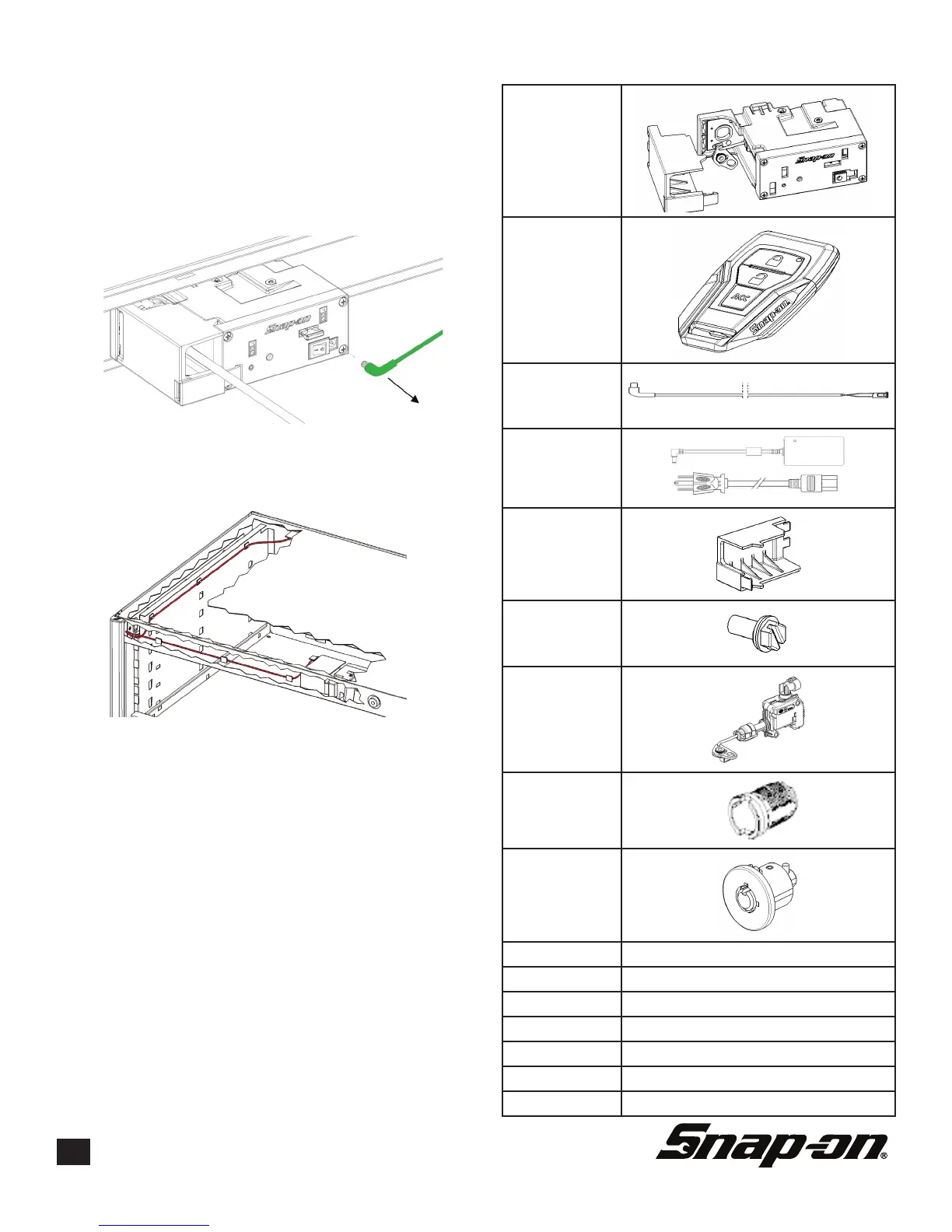

Service – Roll Cab Wiring
Follow these steps to replace the ECKO receiver
module wiring harness:
1. Remove top two drawers from roll cab.
2. Remove DC jack from remote lock module.
3. Remove wiring harness – disconnect from
plastic wire hangers and remove from rear of
unit.
4. Replace wire – feed from rear of unit and rein-
stall to plastic wire hangers. Bundle and secure
extra wire in false side gap(s). Make sure that
wire is not in the way of drawers.
5. Reinstall top two drawers
Rear of front
dress plate view
8-72737BR
Receiver
Module with
Lock Cover
ECKOFOB
Remote
8-72737B-9A
Wiring
Harness
8-72737A-AC
AC/DC
Adapter
8-72737A-5
Lock Cover
8-72737A-4
Lock Screw
8-72737A-60
Actuator
Assembly
RK1ULCA
Lock Cylinder
RK500KP –
RK699KP
Lock Plug
and 1 Key
RK1LA Lock Assy - 1 Lock, 2 Keys
RK2LA Lock Assy - 2 Locks, 2 Keys
RK3LA Lock Assy - 3 Locks, 3 Keys
RK4LA Lock Assy - 4 Locks, 4 Keys
RK5LA Lock Assy - 5 Locks, 5 Keys
RK6LA Lock Assy - 6 Locks, 6 Keys
RK7LA Lock Assy - 7 Locks, 7 Keys
Service – Roll Cab Part Numbers
