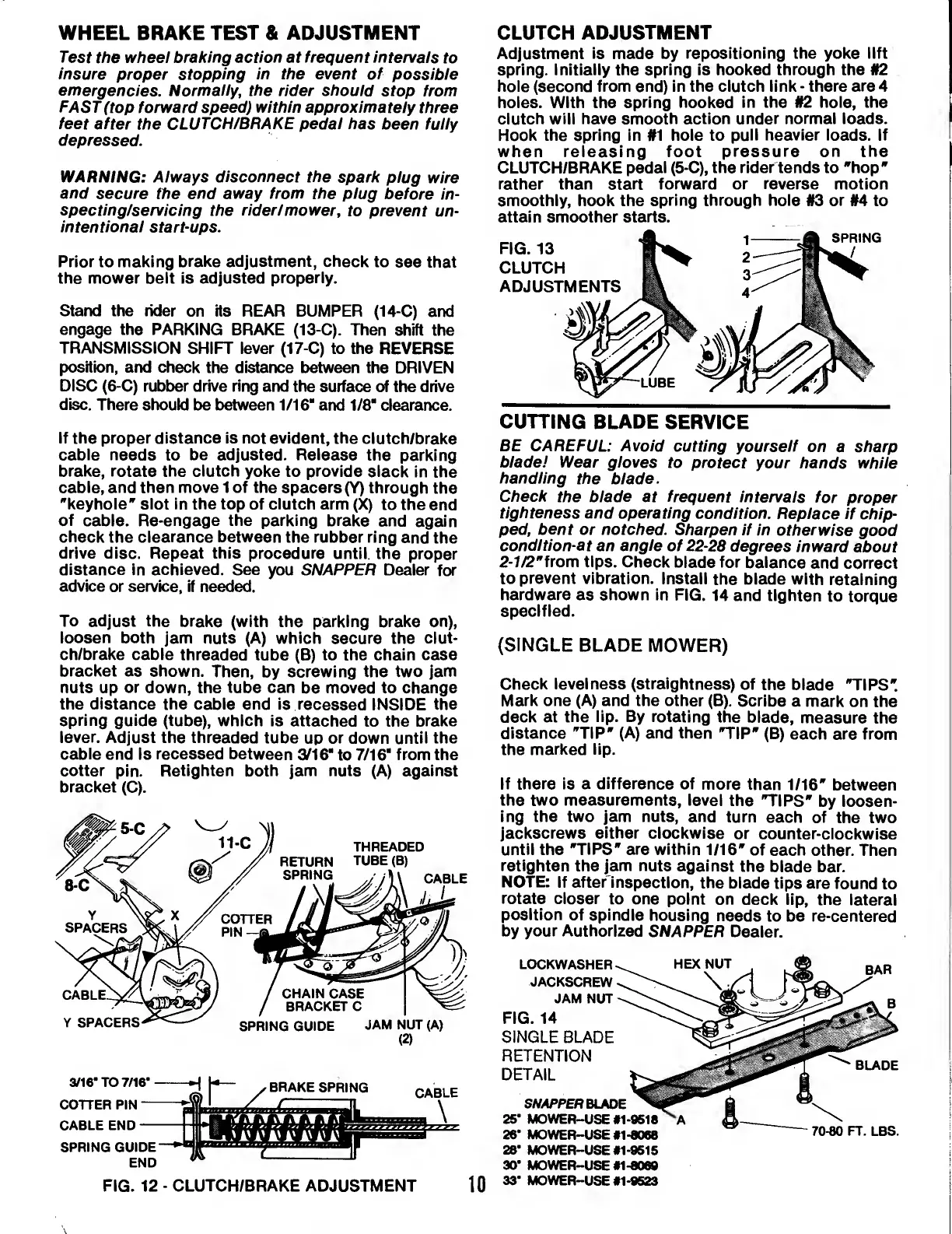

Page #10 background imageLoading...
Page #10 background image
WHEEL
BRAKE
TEST
&
ADJUSTMENT
Test
the
wheel
braking
action
at
frequent
intervals
to
insure
proper
stopping
in
the
event
of
possible
emergencies.
Normally,
the
rider
should
stop
from
FAST
(top
forward
speed)
within
approximately
three
feet
after
the
CLUTCH/BRAKE
pedal
has
been
fully
depressed.
WARNING:
Always
disconnect
the
spark
plug
wire
and
secure
the
end
away
from
the
plug
before
in¬
specting/servicing
the
rider/mower,
to
prevent
un¬
intentional
start-ups.
Prior
to
making
brake
adjustment,
check
to
see
that
the
mower
beit
is
adjusted
properiy.
Stand
the
rider
on
its
REAR
BUMPER
(14-C)
and
engage
the
PARKING
BRAKE
(13-C).
Then
shift
the
TRANSMISSION
SHIFT
lever
(17-C)
to
the
REVERSE
position,
and
check
the
distance
between
the
DRIVEN
DISC
(6-C)
rubber
drive
ring
and
the
surface
of
the
drive
disc.
There
should
be
between
1/16*
and
1/8*
clearance.
If
the
proper
distance
is
not
evident,
the
clutch/brake
cable
needs
to
be
adjusted.
Release
the
parking
brake,
rotate
the
clutch
yoke
to
provide
slack
in
the
cable,
and
then
move
1
of
the
spacers
(Y)
through
the
"keyhole”
slot
in
the
top
of
clutch
arm
(X)
to
the
end
of
cable.
Re-engage
the
parking
brake
and
again
check
the
clearance
between
the
rubber
ring
and
the
drive
disc.
Repeat
this
procedure
until
the
proper
distance
in
achieved.
See
you
SNAPPER
Dealer
for
advice
or
service,
if
needed.
To
adjust
the
brake
(with
the
parking
brake
on),
loosen
both
jam
nuts
(A)
which
secure
the
clut¬
ch/brake
cable
threaded
tube
(B)
to
the
chain
case
bracket
as
shown.
Then,
by
screwing
the
two
jam
nuts
up
or
down,
the
tube
can
be
moved
to
change
the
distance
the
cable
end
is
recessed
INSIDE
the
spring
guide
(tube),
which
is
attached
to
the
brake
lever.
Adjust
the
threaded
tube
up
or
down
until
the
cable
end
is
recessed
between
3/16*
to
7/16*
from
the
cotter
pin.
Retighten
both
jam
nuts
(A)
against
bracket
(C).
3/16"
TO
7/16*
COTTER
PIN
CABLE
END
SPRING
GUIDE
END
FIG.
12
-
CLUTCH/BRAKE
ADJUSTMENT
10
CLUTCH
ADJUSTMENT
Adjustment
is
made
by
repositioning
the
yoke
lift
spring.
Initially
the
spring
is
hooked
through
the
#2
hole
(second
from
end)
in
the
clutch
link
-
there
are
4
holes.
With
the
spring
hooked
in
the
#2
hole,
the
clutch
will
have
smooth
action
under
normal
loads.
Hook
the
spring
in
#1
hole
to
pull
heavier
loads.
If
when
releasing
foot
pressure
on
the
CLUTCH/BRAKE
pedal
(5-C),
the
rider
tends
to
"hop"
rather
than
start
forward
or
reverse
motion
smoothly,
hook
the
spring
through
hole
#3
or
#4
to
attain
smoother
starts.
BE
CAREFUL:
Avoid
cutting
yourself
on
a
sharp
blade!
Wear
gloves
to
protect
your
hands
while
handling
the
blade.
Check
the
blade
at
frequent
intervals
for
proper
tighteness
and
operating
condition.
Replace
if
chip¬
ped,
bent
or
notched.
Sharpen
if
in
otherwise
good
condition-at
an
angle
of
22-28
degrees
inward
about
2-7/2"from
tips.
Check
blade
for
balance
and
correct
to
prevent
vibration.
Install
the
blade
with
retaining
hardware
as
shown
in
FIG.
14
and
tighten
to
torque
specified.
(SINGLE
BLADE
MOWER)
Check
levelness
(straightness)
of
the
blade
"TIPS".
Mark
one
(A)
and
the
other
(B).
Scribe
a
mark
on
the
deck
at
the
lip.
By
rotating
the
blade,
measure
the
distance
"TIP"
(A)
and
then
"TIP"
(B)
each
are
from
the
marked
lip.
If
there
is
a
difference
of
more
than
1/16"
between
the
two
measurements,
level
the
"TIPS"
by
loosen¬
ing
the
two
jam
nuts,
and
turn
each
of
the
two
jackscrews
either
clockwise
or
counter-clockwise
until
the
"TIPS"
are
within
1/16"
of
each
other.
Then
retighten
the
jam
nuts
against
the
blade
bar.
NOTE:
If
after'Inspectlon,
the
blade
tips
are
found
to
rotate
closer
to
one
point
on
deck
lip,
the
lateral
position
of
spindle
housing
needs
to
be
re-centered
by
your
Authorized
SNAPPER
Dealer.
LOCKWASHER
JACKSCREW
JAM
NUT
FIG.
14
SINGLE
BLADE
RETENTION
DETAIL
SAMPPCR
BLADE
25*
MOWER-USE«1-9618
26*
MOWER-USE
*1-8068
28*
MOWER-USE
#1-9515
30*
MOWER-USE
*1-8069
33*
MOWER-USE
*1-9523
70-80
FT.
LBS.
