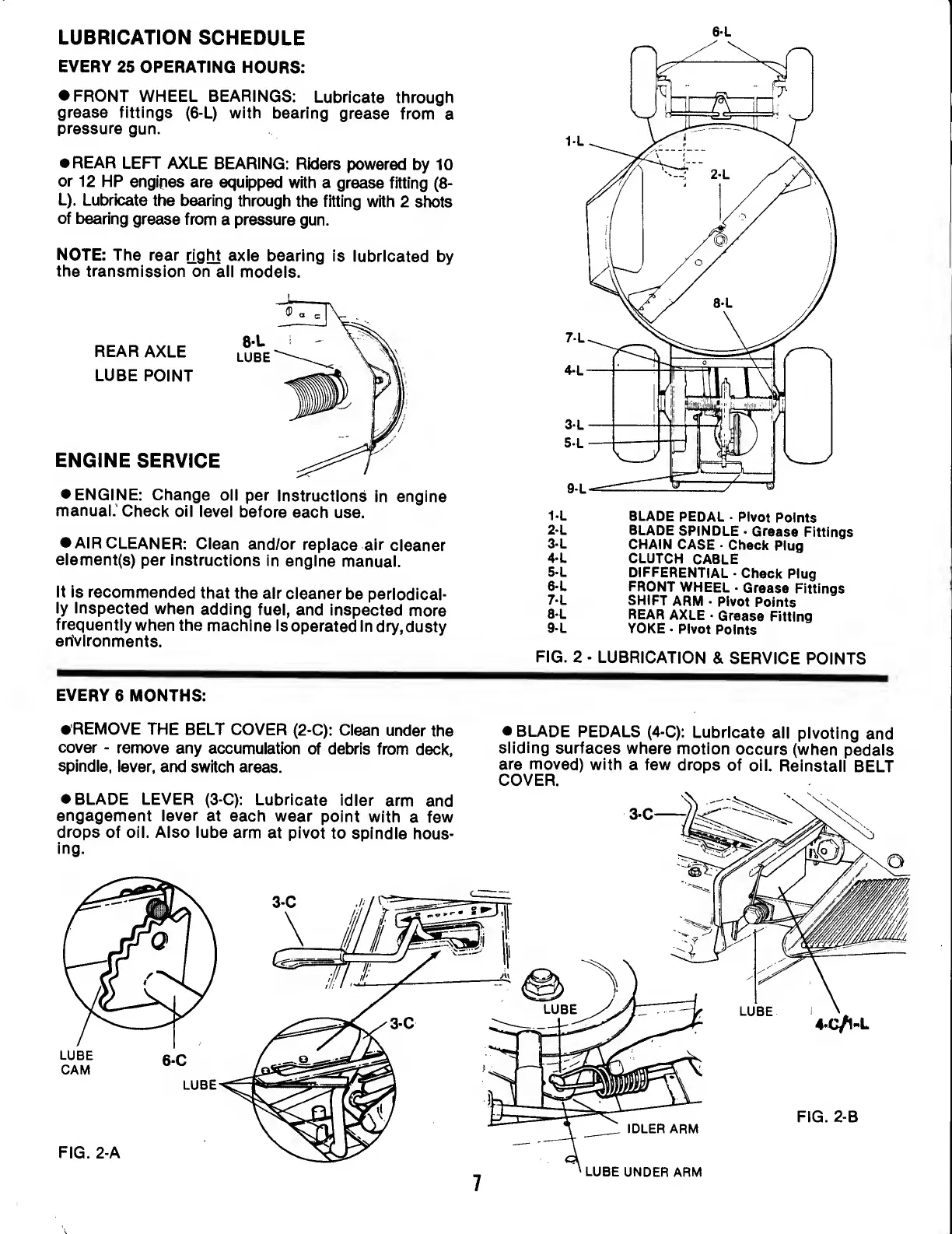

LUBRICATION
SCHEDULE
EVERY
25
OPERATING
HOURS:
FRONT
WHEEL
BEARINGS:
Lubricate
through
grease
fittings
(6-L)
with
bearing
grease
from
a
pressure
gun.
REAR
LEFT
AXLE
BEARING:
Riders
powered
by
10
or
12
HP
engines
are
equipped
with
a
grease
fitting
(8-
L).
Lubricate
the
bearing
through
the
fitting
with
2
shots
of
bearing
grease
from
a
pressure
gun.
NOTE:
The
rear
right
axle
bearing
is
iubricated
by
the
transmission
on
ail
models.
REAR
AXLE
LUBE
POINT
ENGINE
SERVICE
ENGINE:
Change
oil
per
instructions
in
engine
manuai.'Check
oii
levei
before
each
use.
AIR
CLEANER:
Clean
and/or
replace
air
cieaner
eiement(s)
per
instructions
in
engine
manuai.
it
is
recommended
that
the
air
cieaner
be
periodicai-
ly
inspected
when
adding
fuel,
and
inspected
more
frequently
when
the
machine
is
operated
in
dry,
dusty
erfvironments.
6-L
1-
L
BLADE
PEDAL
Pivot
Points
2-
L
BLADE
SPiNDLE
Grease
Fittings
3-
L
CHAiN
CASE
-
Check
Piug
4-
L
CLUTCH
CABLE
5-
L
DiFFERENTiAL
Check
Piug
6-
L
FRONT
WHEEL
-
Grease
Fittings
7-
L
SHiFT
ARM
-
Pivot
Points
8'L
REAR
AXLE
-
Grease
Fitting
9-L
YOKE
-
Pivot
Points
FiG.
2
LUBRICATION
&
SERVICE
POINTS
EVERY
6
MONTHS:
•REMOVE
THE
BELT
COVER
(2-C):
Clean
under
the
cover
-
remove
any
accumulation
of
debris
from
deck,
spindle,
lever,
and
switch
areas.
BLADE
PEDALS
(4-C):
Lubricate
ail
pivoting
and
sliding
surfaces
where
motion
occurs
(when
pedais
are
moved)
with
a
few
drops
of
oii.
Reinstail
BELT
COVER.
7
LUBE
UNDER
ARM
