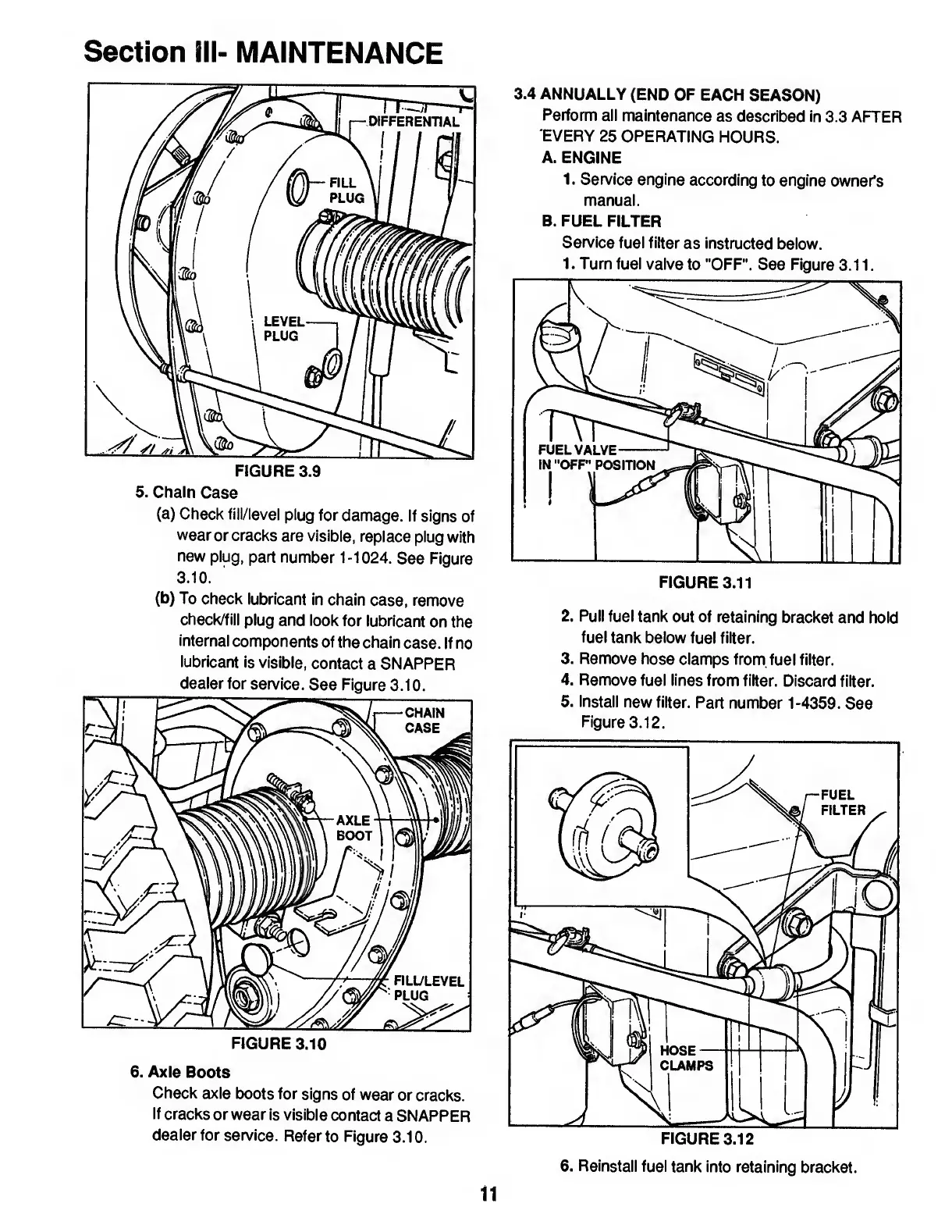

Snapper 14 Series Operator's Manual

Section Iff- MAINTENANCE
5. Chain Case
(a) Check fill/level plug for damage. If signs of
wear or cracks are visible, replace plug with
new plug, part number 1-1024. See Figure
3.10.
(b) To check lubricant in chain case, remove
check/fill plug and look for lubricant on the
internal components of the chain case. If no
lubricant is visible, contact a SNAPPER
dealer for service. See Figure 3.10.
6. Axle Boots
Check axle boots for signs of wear or cracks.
If cracks or wear is visible contact a SNAPPER
dealer for service. Refer to Figure 3.10.
3.4 ANNUALLY (END OF EACH SEASON)
Perform all maintenance as described in 3.3 AFTER
EVERY 25 OPERATING HOURS.
A. ENGINE
1. S ervice engine according to engine owner's
manual.
B. FUEL FILTER
Service fuel filter as instructed below.
1. Turn fuel valve to "OFF". See Figure 3.11.
2. Pull fuel tank out of retaining bracket and hold
fuel tank below fuel filter.
3. Remove hose clamps from fuel filter.
4. Remove fuel lines from filter. Discard filter.
5. Install new filter. Part number 1-4359. See
Figure 3.12.
FIGURE 3.12
6. Reinstall fuel tank into retaining bracket.
11
