Operating the Tractor

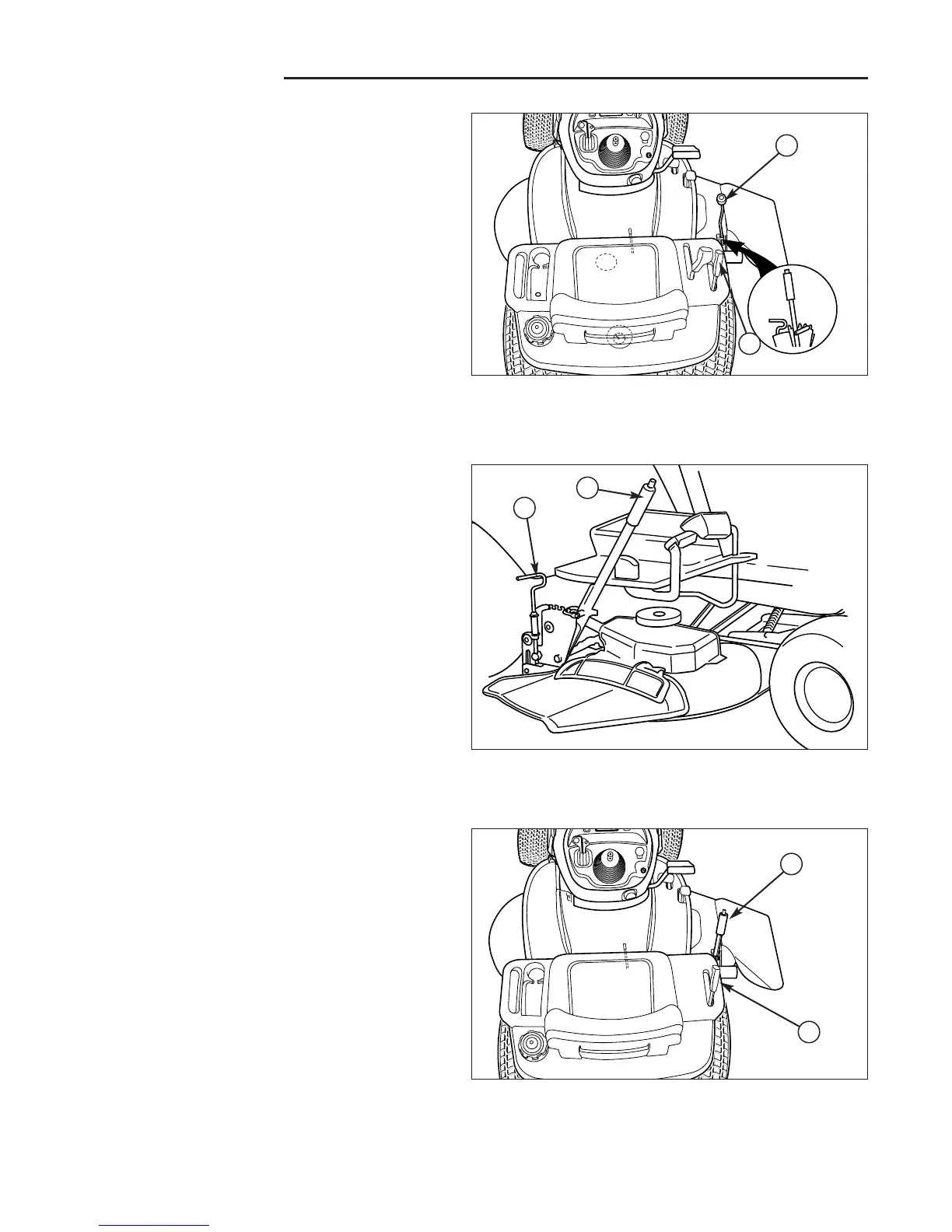

Figure 7. Raising & Lowering Mower - 40” Mowers
A. Mower Lift Lever
B. Mower Height Adjuster
A
B
Adjusting Mower Cutting Height - 38”,
44” & 50” Mower Decks
The cutting height adjustment knob (B, Figure 5) controls
the mower cutting height. The cutting height is infinitely
adjustable between approximately 1” and 3-5/8” (2,5-
9,2cm). Turn the knob clockwise to raise the deck and
counterclockwise to lower it.
Figure 6. Cutting Height Adjustment - 40” Mowers
A. Cutting Height Lever
B. Fine Tuning Adjustment
Adjusting Mower Cutting Height - 40”
Mower Decks
The cutting height adjustment lever (A, Figure 6) controls
the mower cutting height and has five positions. The
highest cutting position should be used when
transporting to and from the work site (do not cut with the
lever in the highest position). The lower four positions
are used when mowing.
Set this lever so that the deck is cutting off 1/3 the height
of the grass or less.
If the desired cutting height falls between two notches,
use the cutting height fine tuning adjuster (B) to achieve
the correct height.
A
B
Figure 5. Raising & Lowering Mower -
38”, 44” & 50” Mowers
A. Mower Lift Lever
B. Mower Height Adjuster
A
B
