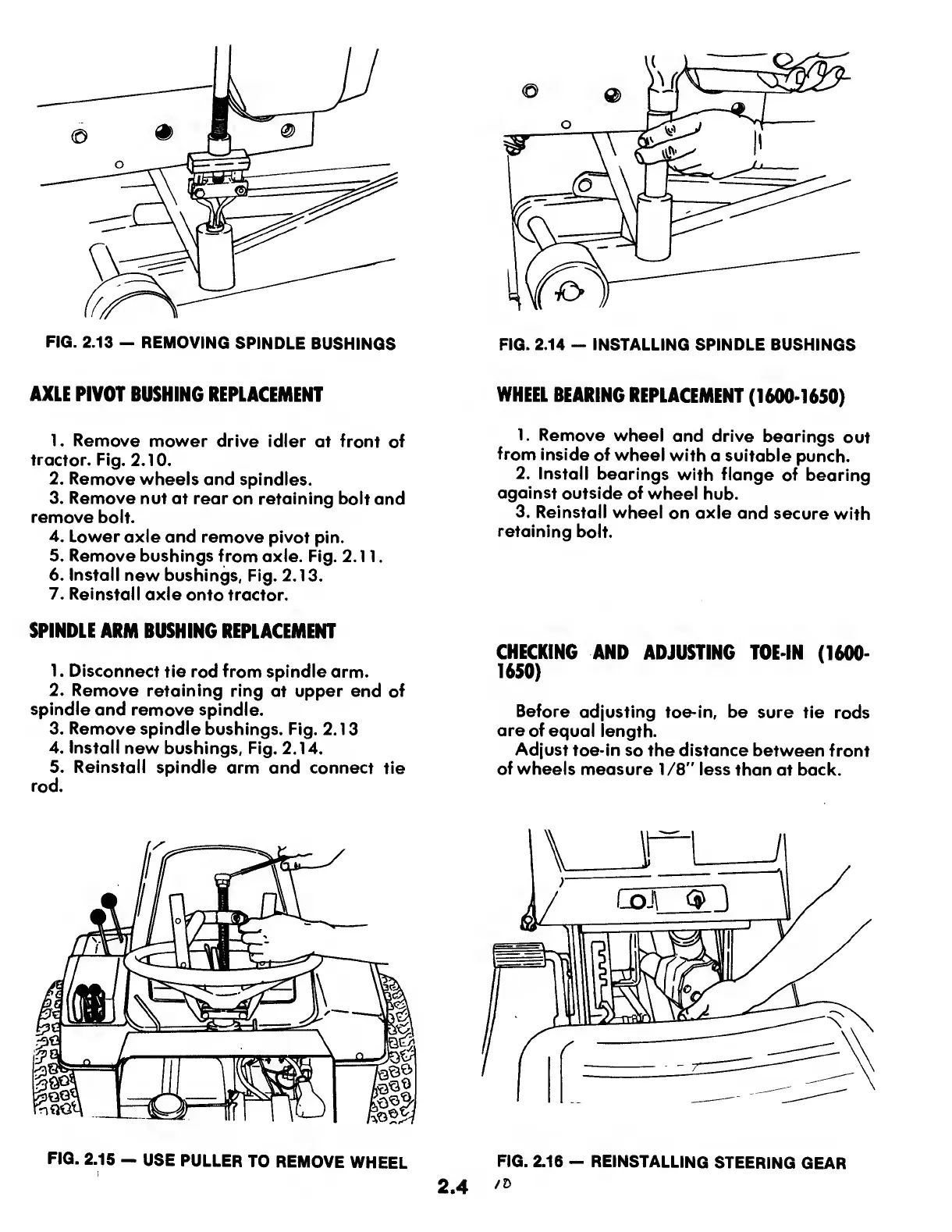

FIG. 2.14 — INSTALLING SPINDLE BUSHINGS
AXLE PIVOT BUSHING REPLACEMENT
1. Remove mower drive idler at front of
tractor. Fig. 2.10.
2. Remove wheels and spindles.
3. Remove nut at rear on retaining bolt and
remove bolt.
4. Lower axle and remove pivot pin.
5. Remove bushings from axle. Fig. 2.11.
6. Install new bushings, Fig. 2.13.
7. Reinstall axle onto tractor.
SPINDLE ARM BUSHING REPLACEMENT
1. Disconnect tie rod from spindle arm.
2. Remove retaining ring at upper end of
spindle and remove spindle.
3. Remove spindle bushings. Fig. 2.13
4. Install new bushings, Fig. 2.14.
5. Reinstall spindle arm and connect tie
rod.
WHEEL BEARING REPLACEMENT (1600-1650)
1. Remove wheel and drive bearings out
from inside of wheel with a suitable punch.
2. Install bearings with flange of bearing
against outside of wheel hub.
3. Reinstall wheel on axle and secure with
retaining bolt.
CHECKING AND ADJUSTING TOE-IN (1600-
1650)
Before adjusting toe-in, be sure tie rods
are of equal length.
Adjust toe-in so the distance between front
of wheels measure 1/8" less than at back.
FIG. 2.16 - REINSTALLING STEERING GEAR
2.4 '»
FIG. 2.15 — USE PULLER TO REMOVE WHEEL
