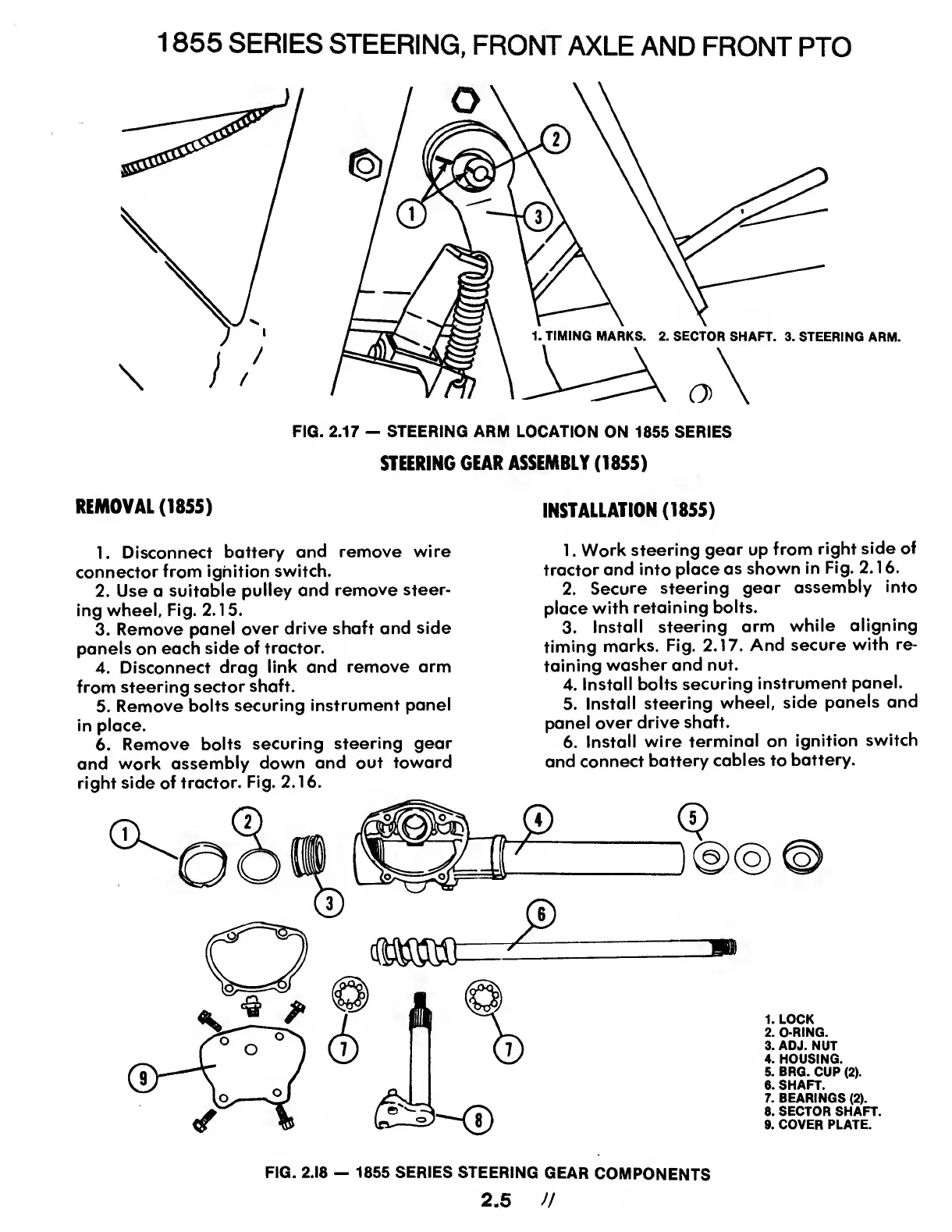

1855 SERIES STEERING, FRONT AXLE AND FRONT PTO
FIG. 2.17 — STEERING ARM LOCATION ON 1855 SERIES
STEERING GEAR ASSEMBLY (1855)
REMOVAL (1855)
INSTALLATION (1855)
1. Disconnect battery and remove wire
connector from ignition switch.
2. Use a suitable pulley and remove steer¬
ing wheel, Fig. 2.15.
3. Remove panel over drive shaft and side
panels on each side of tractor.
4. Disconnect drag link and remove arm
from steering sector shaft.
5. Remove bolts securing instrument panel
in place.
6. Remove bolts securing steering gear
and work assembly down and out toward
right side of tractor. Fig. 2.16.
1. Work steering gear up from right side of
tractor and into place as shown in Fig. 2.16.
2. Secure steering gear assembly into
place with retaining bolts.
3. Install steering arm while aligning
timing marks. Fig. 2.17. And secure with re¬
taining washer and nut.
4. Install bolts securing instrument panel.
5. Install steering wheel, side panels and
panel over drive shaft.
6. Install wire terminal on ignition switch
and connect battery cables to battery.
1. LOCK
2. O-RING.
3. ADJ. NUT
4. HOUSING.
5. BRG. CUP (2).
6. SHAFT.
7. BEARINGS (2).
8. SECTOR SHAFT.
9. COVER PLATE.
FIG. 2.18 — 1855 SERIES STEERING GEAR COMPONENTS
2.5 //
