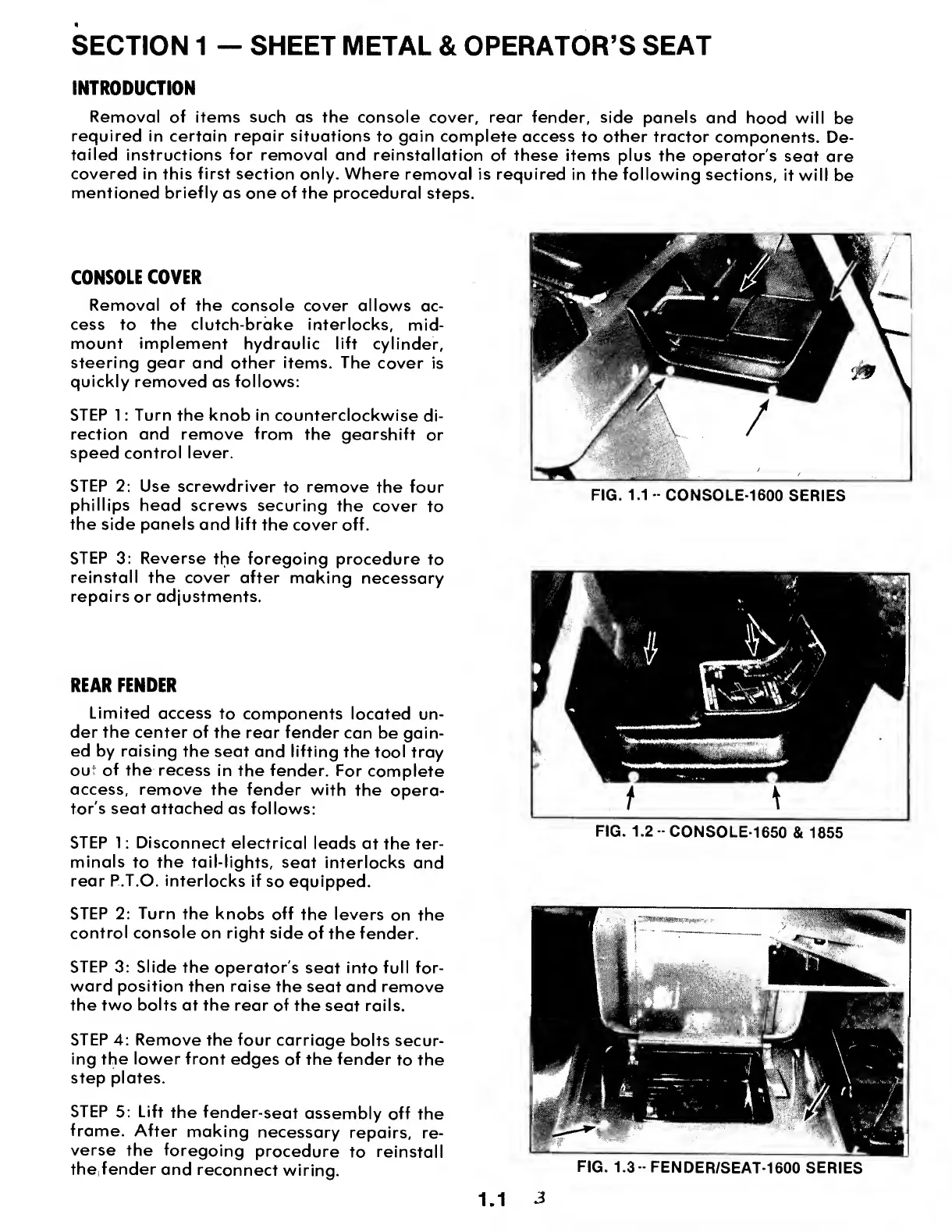

SECTION
1
SHEET
METAL
&
OPERATOR’S
SEAT
INTRODUCTION
Removal
of
items
such
as
the
console
cover,
rear
fender,
side
panels
and
hood
will
be
required
in
certain
repair
situations
to
gain
complete
access
to
other
tractor
components.
De¬
tailed
instructions
for
removal
and
reinstallation
of
these
items
plus
the
operator's
seat
are
covered
in
this
first
section
only.
Where
removal
is
required
in
the
following
sections,
it
will
be
mentioned
briefly
as
one
of
the
procedural
steps.
CONSOLE
COVER
Removal
of
the
console
cover
allows
ac¬
cess
to
the
clutch-brake
interlocks,
mid¬
mount
implement
hydraulic
lift
cylinder,
steering
gear
and
other
items.
The
cover
is
quickly
removed
as
follows:
STEP
1:
Turn
the
knob
in
counterclockwise
di¬
rection
and
remove
from
the
gearshift
or
speed
control
lever.
STEP
2:
Use
screwdriver
to
remove
the
four
phillips
head
screws
securing
the
cover
to
the
side
panels
and
lift
the
cover
off.
STEP
3:
Reverse
the
foregoing
procedure
to
reinstall
the
cover
after
making
necessary
repairs
or
adjustments.
REAR
FENDER
Limited
access
to
components
located
un¬
der
the
center
of
the
rear
fender
can
be
gain¬
ed
by
raising
the
seat
and
lifting
the
tool
tray
out
of
the
recess
in
the
fender.
For
complete
access,
remove
the
fender
with
the
opera¬
tor's
seat
attached
as
follows:
STEP
1:
Disconnect
electrical
leads
at
the
ter¬
minals
to
the
tail-lights,
seat
interlocks
and
rear
P.T.O.
interlocks
if
so
equipped.
STEP
2:
Turn
the
knobs
off
the
levers
on
the
control
console
on
right
side
of
the
fender.
STEP
3:
Slide
the
operator's
seat
into
full
for¬
ward
position
then
raise
the
seat
and
remove
the
two
bolts
at
the
rear
of
the
seat
rails.
STEP
4:
Remove
the
four
carriage
bolts
secur¬
ing
the
lower
front
edges
of
the
fender
to
the
step
plates.
STEP
5:
Lift
the
fender-seat
assembly
off
the
frame.
After
making
necessary
repairs,
re¬
verse
the
foregoing
procedure
to
reinstall
the
fender
and
reconnect
wiring.
FIG.
1.1
-
CONSOLE-1600
SERIES
FIG.
1.2--CONSOLE-1650
&
1855
FIG.
1.3--
FENDER/SEAT-1600
SERIES
1.1
3
