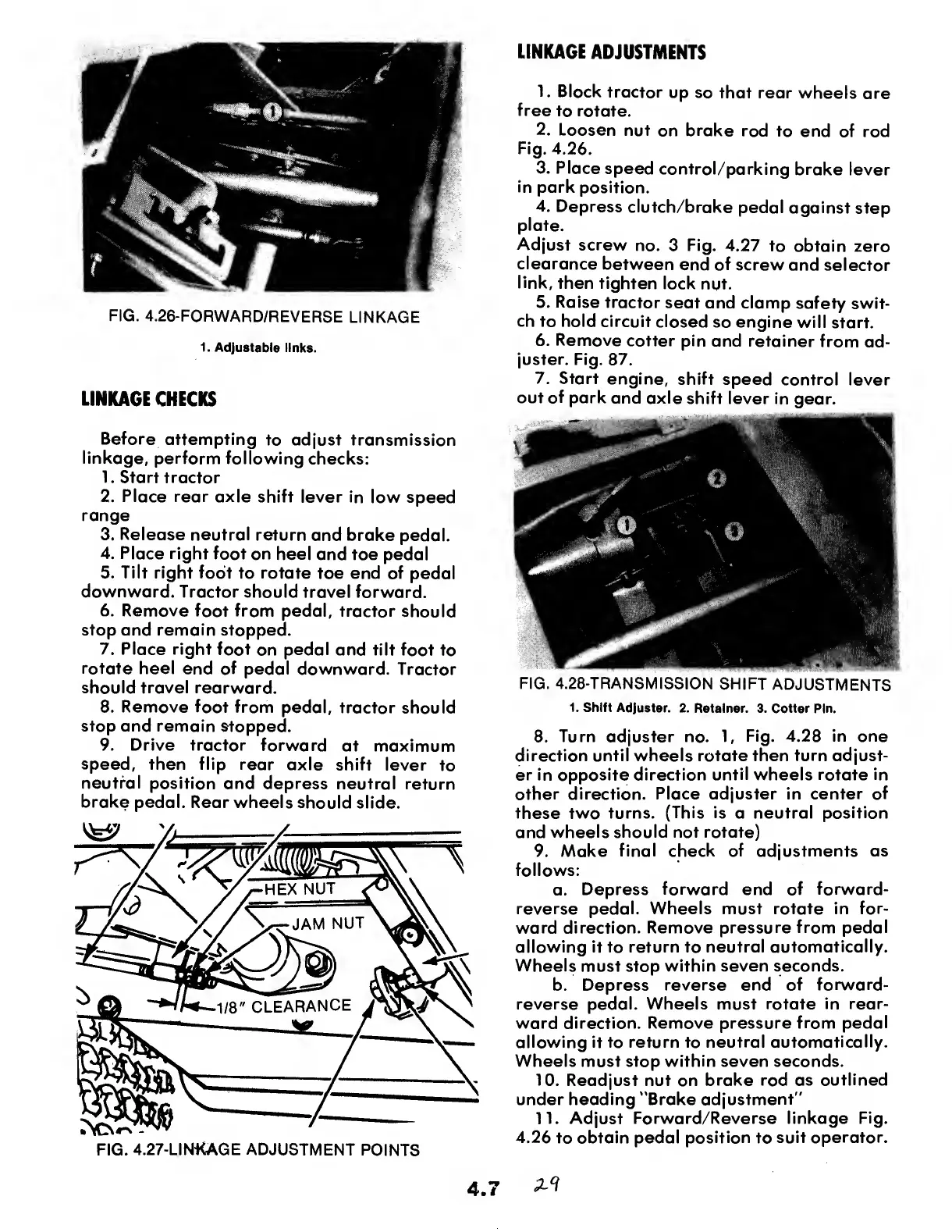

FIG. 4.26-FORWARD/REVERSE LINKAGE
1. Adjustable links.
LINKAGE CHECKS
Before attempting to adjust transmission
linkage, perform following checks:
1. Start tractor
2. Place rear axle shift lever in low speed
range
3. Release neutral return and brake pedal.
4. Place right foot on heel and toe pedal
5. Tilt right foot to rotate toe end of pedal
downward. Tractor should travel forward.
6. Remove foot from pedal, tractor should
stop and remain stopped.
7. Place right foot on pedal and tilt foot to
rotate heel end of pedal downward. Tractor
should travel rearward.
8. Remove foot from pedal, tractor should
stop and remain stopped.
9. Drive tractor forward at maximum
speed, then flip rear axle shift lever to
neutral position and depress neutral return
brake pedal. Rear wheels should slide.
FIG. 4.27-LINKAGE ADJUSTMENT POINTS
LINKAGE ADJUSTMENTS
1. Block tractor up so that rear wheels are
free to rotate.
2. Loosen nut on brake rod to end of rod
Fig. 4.26.
3. Place speed control/parking brake lever
in park position.
4. Depress clutch/brake pedal against step
plate.
Adjust screw no. 3 Fig. 4.27 to obtain zero
clearance between end of screw and selector
link, then tighten lock nut.
5. Raise tractor seat and clamp safety swit¬
ch to hold circuit closed so engine will start.
6. Remove cotter pin and retainer from ad¬
juster. Fig. 87.
7. Start engine, shift speed control lever
out of park and axle shift lever in gear.
FIG. 4.28-TRANSMISSION SHIFT ADJUSTMENTS
1. Shift Adjuster. 2. Retainer. 3. Cotter Pin.
8. Turn adjuster no. 1, Fig. 4.28 in one
direction until wheels rotate then turn adjust¬
er in opposite direction until wheels rotate in
other direction. Place adjuster in center of
these two turns. (This is a neutral position
and wheels should not rotate)
9. Make final check of adjustments as
follows:
a. Depress forward end of forward-
reverse pedal. Wheels must rotate in for¬
ward direction. Remove pressure from pedal
allowing it to return to neutral automatically.
Wheels must stop within seven seconds.
b. Depress reverse end of forward-
reverse pedal. Wheels must rotate in rear¬
ward direction. Remove pressure from pedal
allowing it to return to neutral automatically.
Wheels must stop within seven seconds.
10. Readjust nut on brake rod as outlined
under heading "Brake adjustment"
11. Adjust Forward/Reverse linkage Fig.
4.26 to obtain pedal position to suit operator.
