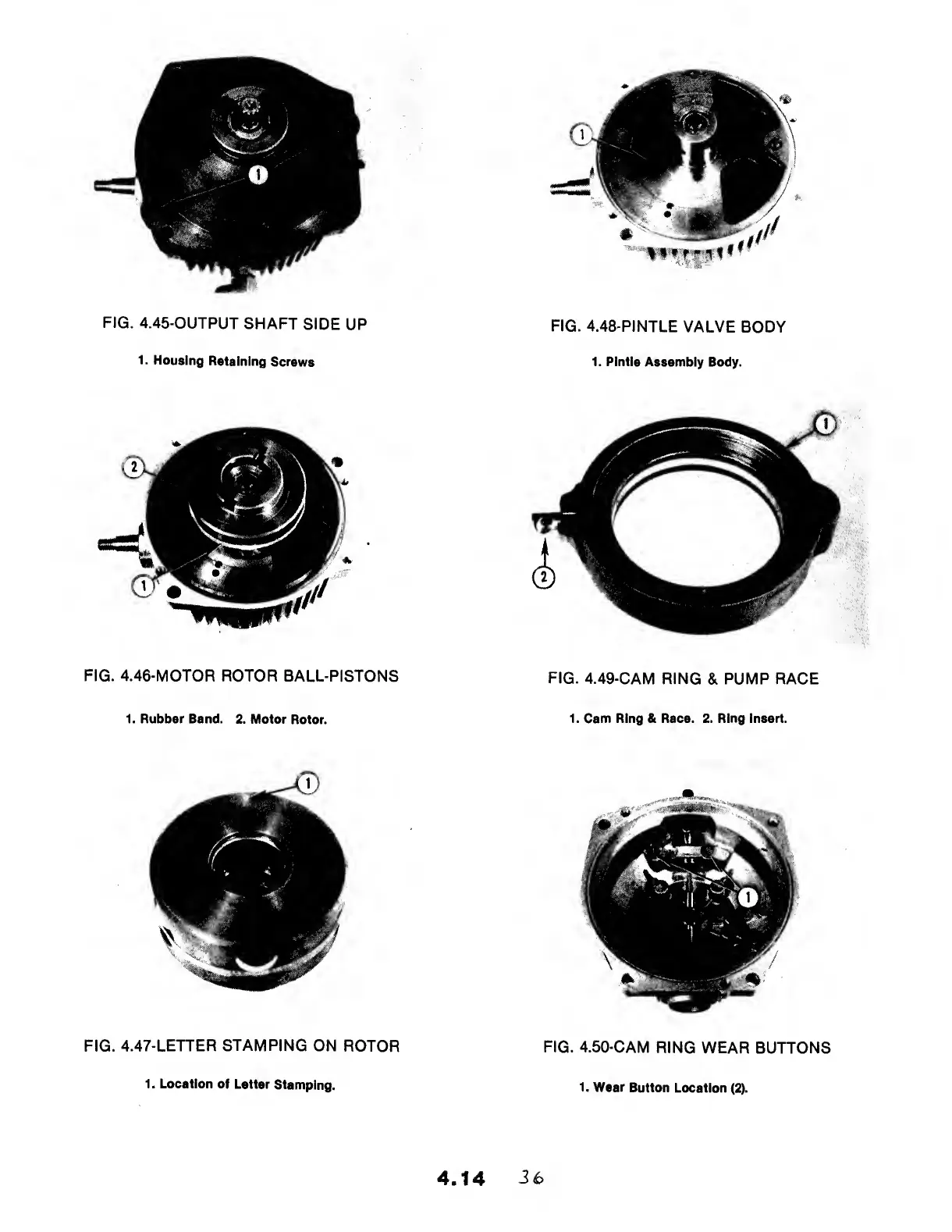

FIG.
4.45-OUTPUT
SHAFT
SIDE
UP
FIG.
4.48-PINTLE
VALVE
BODY
1.
Housing
Retaining
Screws
1.
Pintle
Assembly
Body.
FIG.
4.46-MOTOR
ROTOR
BALL-PISTONS
FIG.
4.49-CAM
RING
&
PUMP
RACE
1.
Rubber
Band.
2.
Motor
Rotor.
1.
Cam
Ring
&
Race.
2.
Ring
Insert.
FIG.
4.47-LETTER
STAMPING
ON
ROTOR
1.
Location
of
Letter
Stamping.
FIG.
4.50-CAM
RING
WEAR
BUTTONS
1.
Wear
Button
Location
(2).
4.14
36
