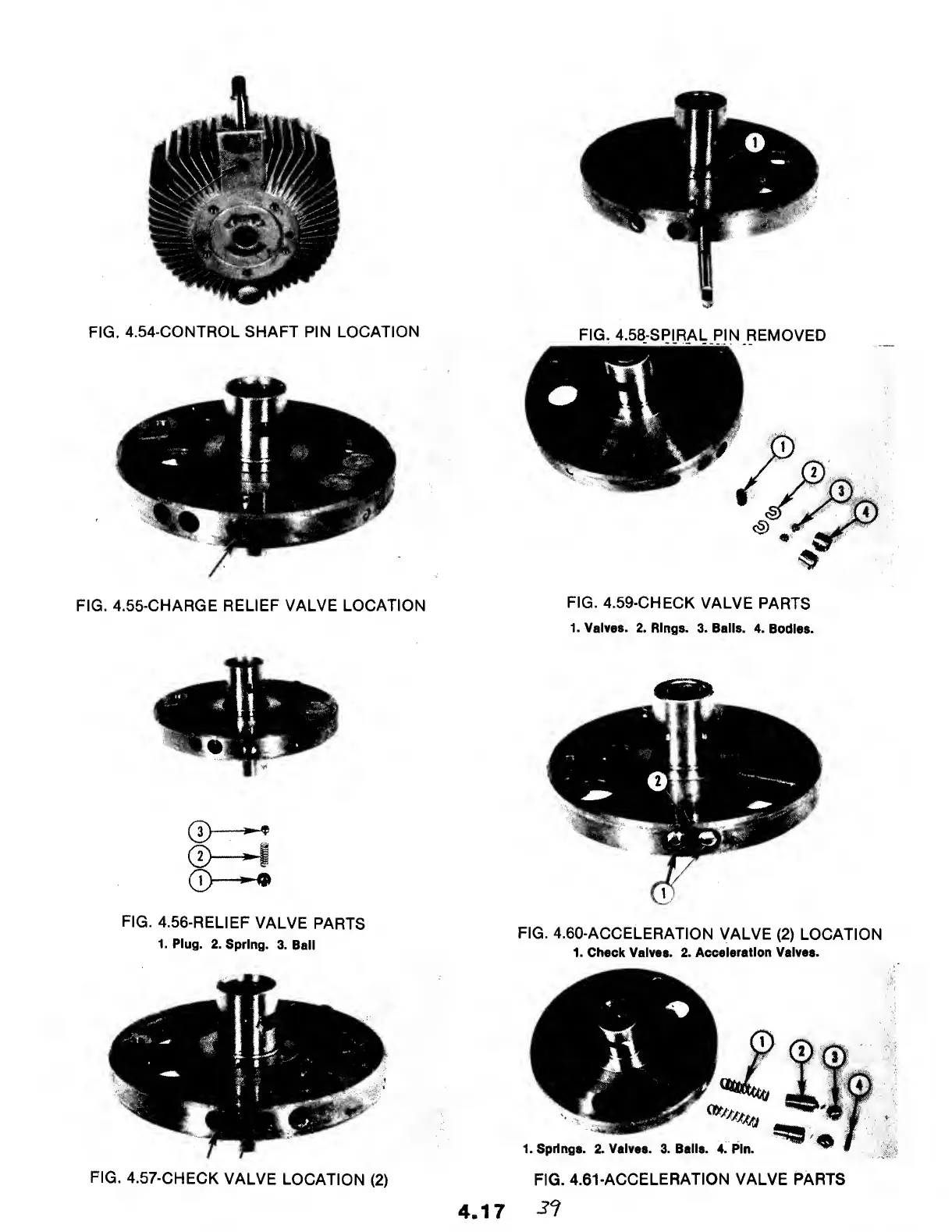

FIG.
4.54-CONTROL
SHAFT
PIN
LOCATION
FIG.
4.58-SPIRAL
PIN
REMOVED
FIG.
4.59-CHECK
VALVE
PARTS
FIG.
4.55-CHARGE
RELIEF
VALVE
LOCATION
1.
Valves.
2.
Rings.
3.
Balls.
4.
Bodies
©—*
FIG.
4.56-RELIEF
VALVE
PARTS
1.
Plug.
2.
Spring.
3.
Ball
FIG.
4.60-ACCELERATION
VALVE
(2)
LOCATION
1.
Check
Valves.
2.
Acceleration
Valves.
1.
Springs.
2.
Valves.
3.
Balls.
4.
Pin
FIG.
4.57-CHECK
VALVE
LOCATION
(2)
FIG.
4.61-ACCELERATION
VALVE
PARTS
